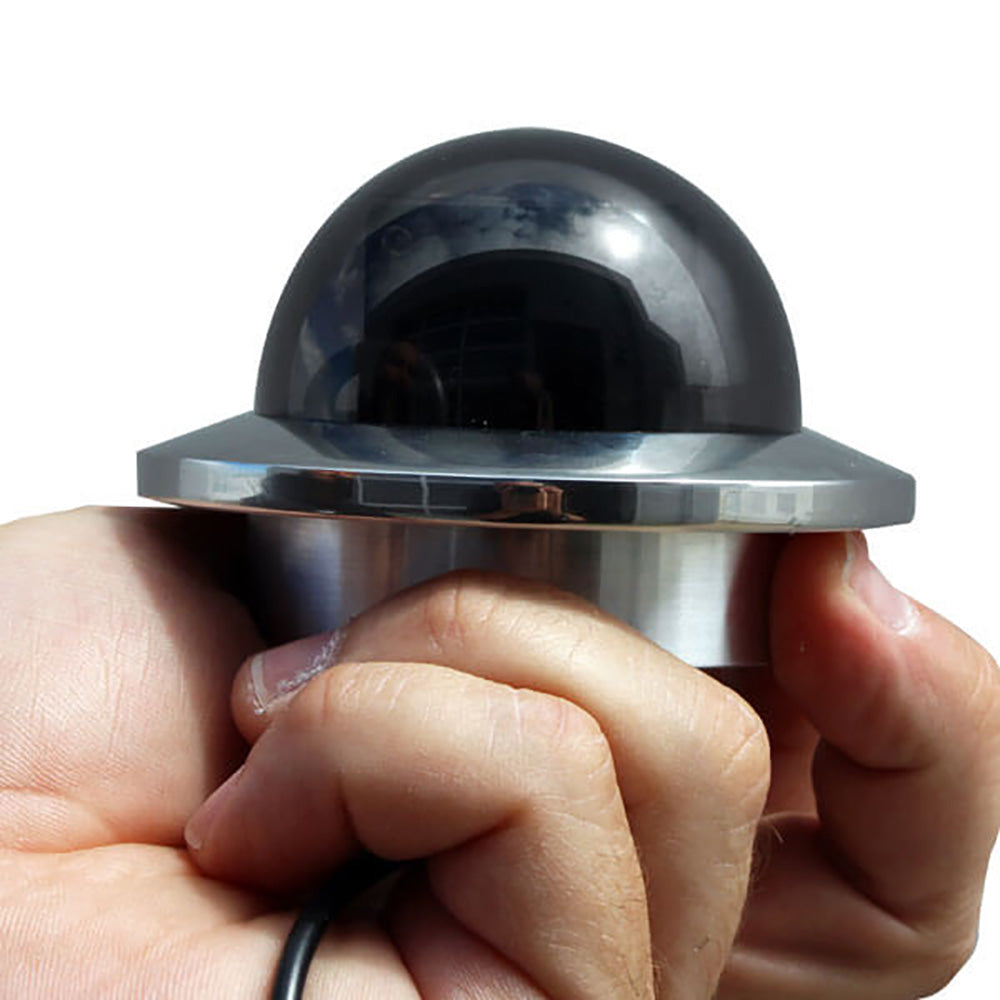

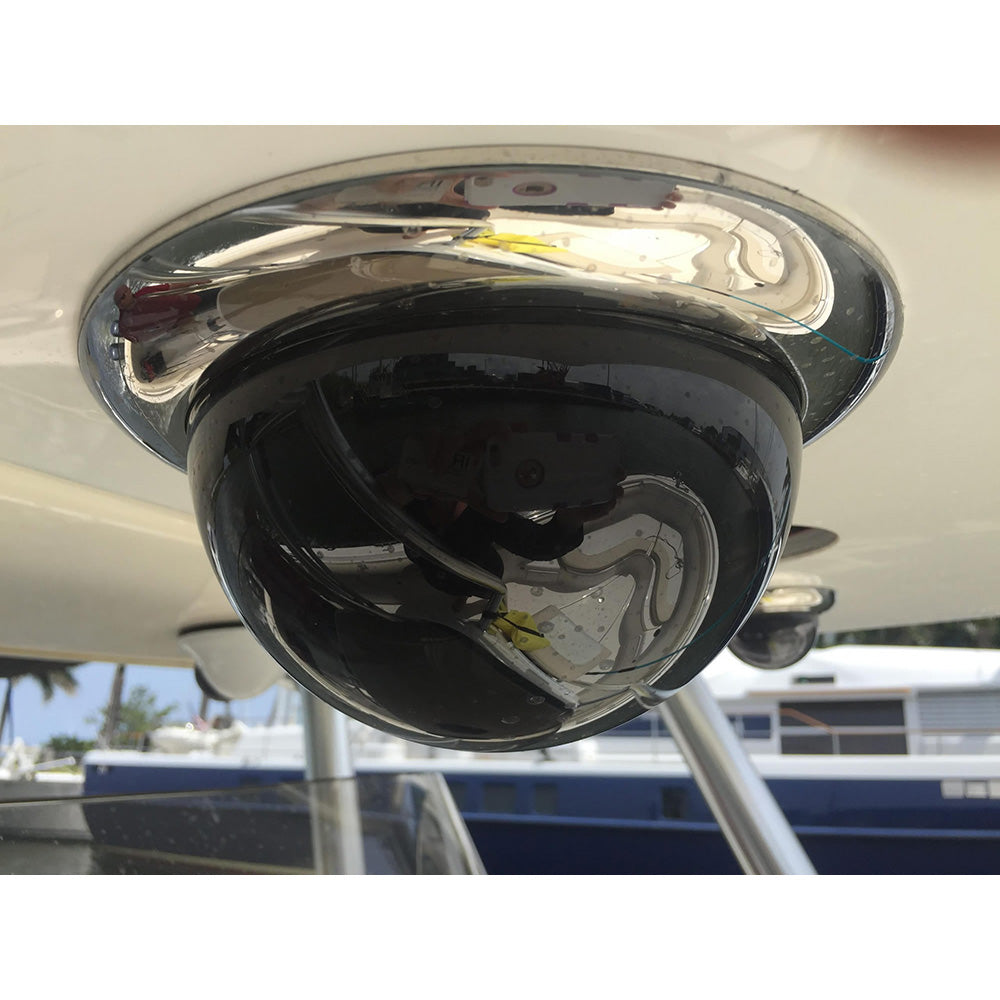

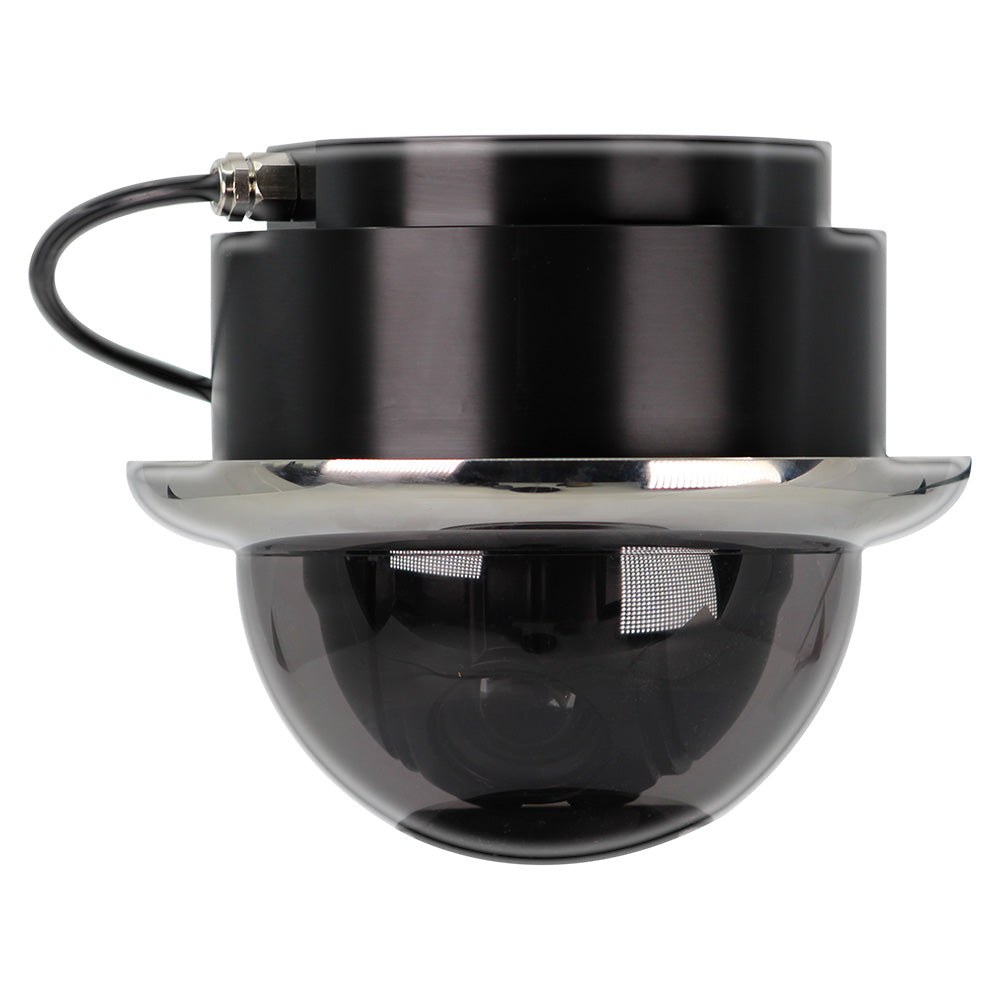

Iris Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Def Ethernet IP - 10x Digital Zoom - 4 in 1 Video Format

The IRISx106 Miniature Marine PTZ Dome Camera is the ultimate surveillance solution for marine environments. Combining compact design with high-definition performance, this versatile camera ensures reliable monitoring across various onboard locations.

Unmatched Performance and Flexibility

The IRISx106 stands out as the smallest marine PTZ camera on the market, offering seamless control with its fast and smooth variable speed capabilities. Equipped with a high-resolution camera sensor, it supports multiple video formats including analog (CVBS), AHD, HD-TVI, and HD-CVI. This flexibility allows you to connect directly to MFDs with composite video inputs or upgrade to 1080P High Definition video using Hybrid recorders or TVIHDMI encoders.

Advanced Control Options

Experience precise camera manipulation with multiple control methods. The IRISx106 can be managed via:

• IRIS595 joystick controller
• TE01 rotary controller
• Iris HVR interface

Data communication is streamlined through a two-wire RS485 serial data connection, ensuring reliable operation.

Sleek and Durable Design

Designed for seamless integration into any vessel, the IRISx106 features a compact housing made from lightweight ABS plastic and a smoke acrylic dome. The marine-grade 316 stainless steel bezel not only adds a stylish high-polish finish but also ensures durability in harsh marine conditions. Installation is simplified with the optional surface mount bracket (Part Number: BRK106), perfect for bulkhead mounting in engine rooms or other tight spaces.

Versatile Applications

Thanks to its small size and robust construction, the IRISx106 is ideal for a variety of monitoring needs, including:

• Deck monitoring
• Companionway and tender surveillance
• Engine room oversight
• Comprehensive onboard surveillance systems

Key Features

• Marine Grade 316 Stainless Steel Case
• Compact Dome Design (86 mm)
• IP66 Ingress Protection
• Wide Compatibility with Various Systems
• Easy Installation and Low Power Consumption
• High-Polished Stainless Steel Finish
• Responsive Pan, Tilt, and Zoom Operations

Technical Specifications

Downloadable Resources

Download Brochure (PDF)
