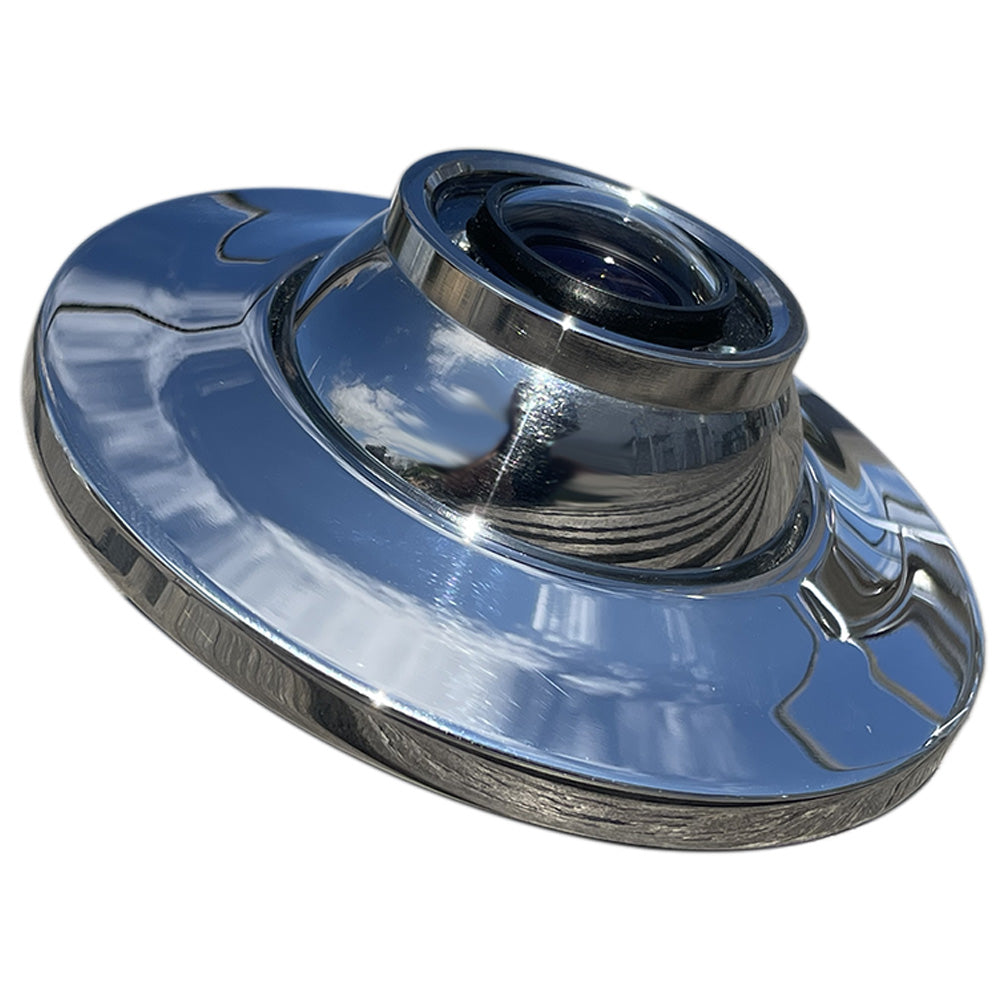

Iris 4-In-1 Flush Vertical Surface Mount - 316L - Recess Mount Dome

The Iris Sx76 series 4-In-1 Flush Vertical Surface Mount camera is expertly engineered for seamless integration into bulkheads and vertical surfaces on marine vessels. Crafted from high-grade 316L marine stainless steel, this camera is built to withstand the harshest saltwater environments, ensuring long-lasting performance and reliability. Whether used as a backup system, docking camera, or for mooring alongside jetties and pontoons, the Sx76 series offers unparalleled durability and versatility for all your boating needs.

Key Features

• 1.8mm Standard Lens with a Super Wide 160-Degree Horizontal Field of View
• Corrosion-Proof 316L Marine Grade Stainless Steel Construction
• Available in 4-in-1 (CVBS, TVI, CVI, AHD) & IP Formats
• High-Definition Analogue Resolutions up to 1920x1080P
• IP Version Supports Power over Ethernet (PoE) and 12VDC for Ultra-Low Power Consumption
• Built-In Infrared LED Illumination with a 10-Meter Range
• Certified to EN60945, EN55032, EN55035, EN60529 (IP66), FCC, and CE Standards
• Shock and Vibration Proof for Reliable Performance in Extreme Conditions
• Easy Installation with Adjustable Inner Ball for Customizable Viewing Angles

Advanced Compatibility

The Iris Sx76 series camera is ONVIF compliant and seamlessly integrates with a wide range of marine systems. It is directly compatible with Raymarine LH2 and above, Simrad, Lowrance, and B&G systems. For Garmin setups, pairing with Iris CMAC systems is recommended to ensure optimal performance and connectivity.

Versatile Applications

• Ideal for Extreme Marine Environments
• Enhances Visibility on Workboats & Tug Boats
• Essential for Fishing Vessels
• Reliable Engine Room Monitoring
• Supports Law Enforcement & Military Operations
• Perfect for Wind Farm Vessels
• Suitable for SUVs, RVs, Work Vehicles, and Trucks
• Luxury Vessels Benefit from High-Definition Imaging
• Passenger Ferries & Cruise Liners Gain Enhanced Safety Features

Technical Specifications

Feature	Specification
Lens	1.8mm Standard
Horizontal Field of View	160-Degree HFOV
Sensor	1/4” CMOS Sensor
Resolution	CVBS: 960H / AHD, HD-TVI, HD-CVI: 1920 x 1080
Interface	OSD Menu via In-Line Joystick in Cable Tail
Video Processing	Analogue / Analogue HD
Protocols/Video Format	1VPP / 75Ω Composite / AHD / TVI / CVI
Onvif	Not Applicable
Bitrate	Not Available
Illumination	6 x 850nm Infrared LEDs - 10-Meter Range
Mirroring	Horizontal & Vertical Configuration via OSD
Automatic Gain Control	Supported with Multiple Levels
Compatibility	CVBS: All MFDs / Screens with Composite Video Input AHD/TVI/CVI: Via Interface or IRIS CMAC System
Operating Temperature	-30°C to +60°C
Connections	Video: 75Ω BNC Female Power: 2.1mm DC Socket
Material	Marine Grade 316L Stainless Steel (Highly Polished as Standard)
Power	+12VDC (Range: +10V to +15VDC) 1W Nominal / 1.8W Max (LEDs On)
Power Over Ethernet (PoE)	Not Applicable
Weight & Dimensions	88mm Ø x 22.25mm Above and Below Mounting Surface
Environmental Standards	EN60529 / IP66
EMC Compliance	EN55032:2015/A11:2020, EN55035:2017/A11:2020, EN60945:2002 Sections 9 & 10, FCC Part 15 A & B
RoHS	EN6300:2018

Certifications

• EN60945
• EN55032
• EN55035
• EN60529 (IP66)
• FCC
• CE

Download Brochure

View the Product Brochure (PDF)
