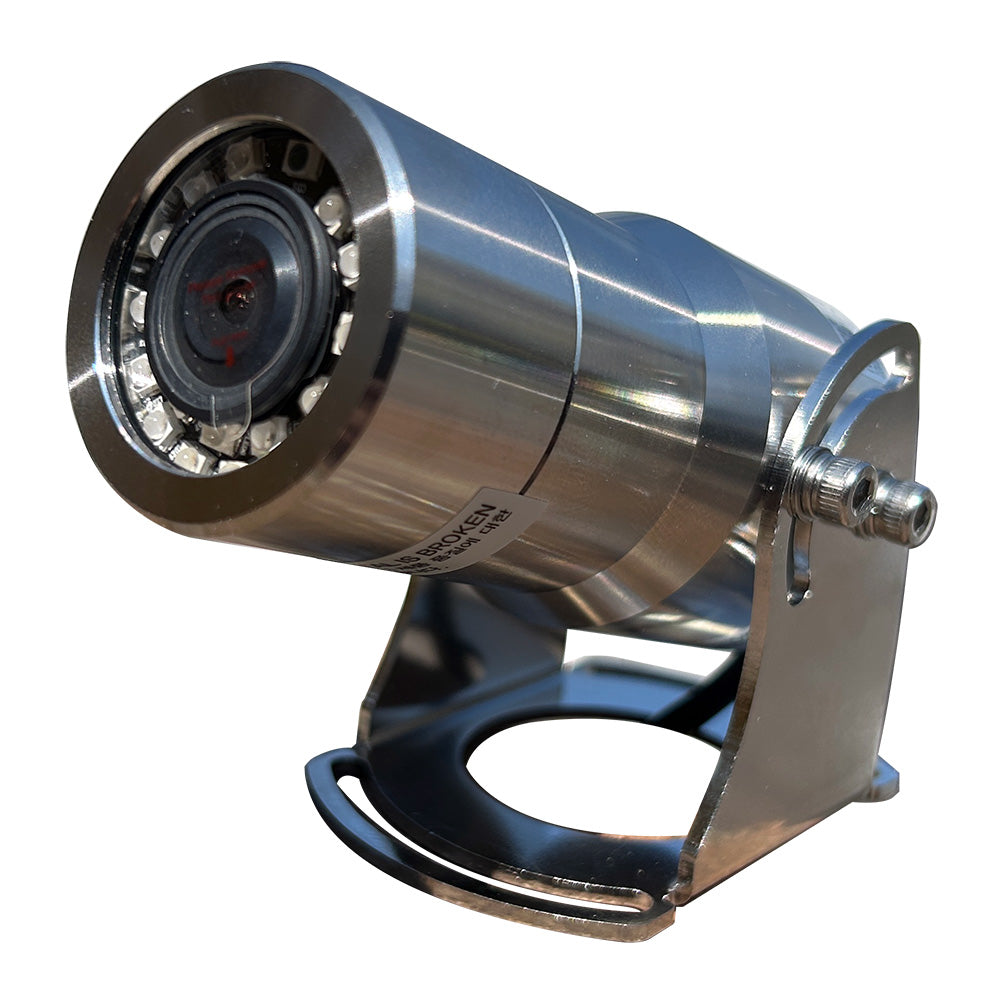

Iris 316 Stainless Steel Marine Camera - TVL - Wide Angle - Reversible - Nitrogen Purged - Infrared

The IRIS090 marine camera is engineered for boaters who demand reliability and high performance in the harshest marine environments. Combining robust stainless steel construction with advanced imaging technology, this camera ensures clear and consistent monitoring of critical areas on your vessel.

Superior Marine-Grade Construction

Crafted from solid billet A316 stainless steel, the IRIS090 is built to withstand the toughest marine conditions. Its durable housing not only provides exceptional protection but also boasts an IP68 waterproof rating, ensuring reliable performance even in submerged or adverse environments.

High-Resolution Imaging for Clear Visibility

Equipped with the Sony Super HAD II CCD chipset, the IRIS090 delivers crisp 700TVL resolution composite video. This high-resolution imaging ensures detailed and clear visuals, making it easier to monitor areas such as bathing platforms and engine rooms with precision.

Advanced Infrared Technology

The IRIS090 features a built-in photo-diode that activates a ring of 24 infrared LEDs (850nm). This powerful infrared illumination can extend visibility up to 50 feet in complete darkness, providing reliable monitoring capabilities during nighttime or low-light conditions.

Wide-Angle Coverage for Comprehensive Monitoring

Fitted with an extensive angled 2.1mm lens, the camera offers a generous horizontal viewing angle of 120°. This wide-angle coverage ensures that large areas are effectively monitored, reducing blind spots and enhancing overall security on your vessel.

Customizable Setup and Configuration

The IRIS090 comes with an extensive list of setup functions, allowing you to tailor the camera settings to achieve the best possible images under various conditions. Features such as Dynamic Noise Reduction and Wide Dynamic Range optimize image quality, ensuring clarity and reliability in diverse environments.

Technical Specifications

Feature	Specification
Material	Billet A316 Stainless Steel
Waterproof Rating	IP68
Resolution	700TVL
Lens	2.1mm Angled Lens (120° View)
Infrared LEDs	24 Built-in LEDs (850nm)
Infrared Range	Up to 50 Feet
Image Enhancement	Dynamic Noise Reduction, Wide Dynamic Range

Additional Resources

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (PDF)

Brochure (PDF)
