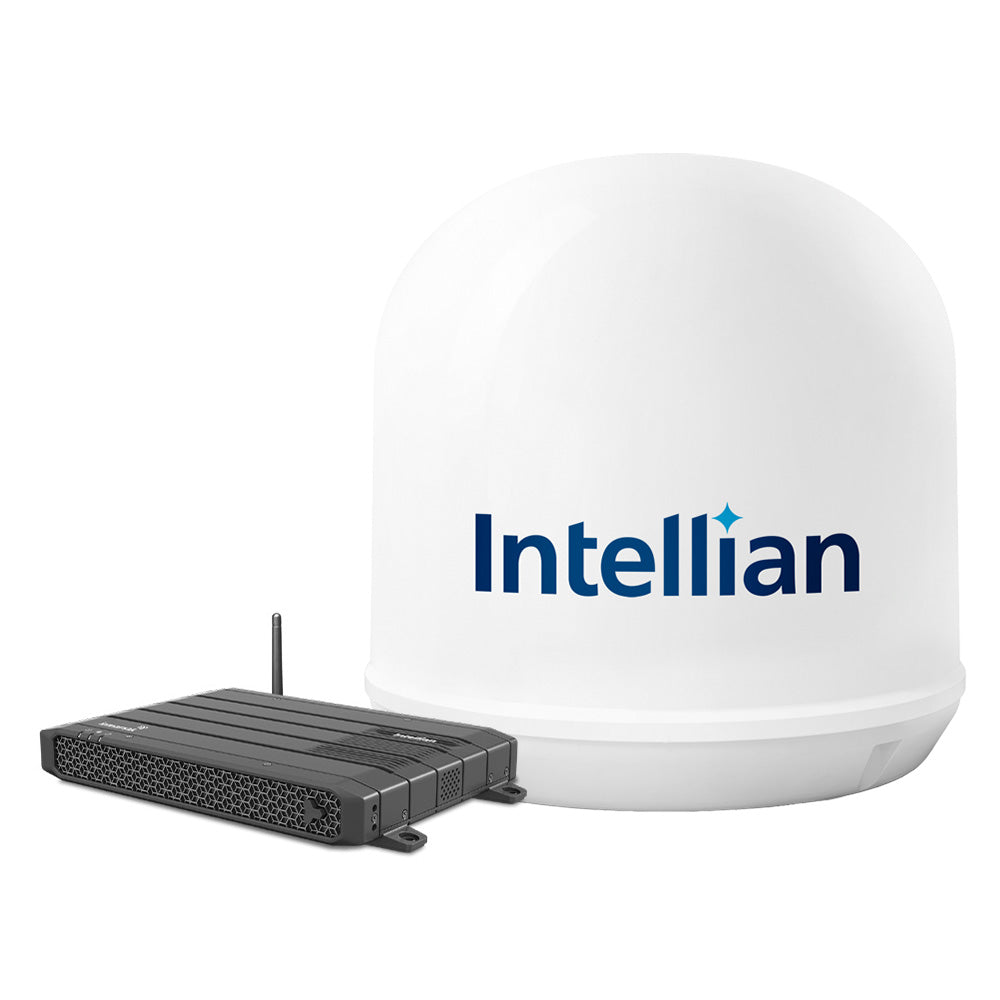

Intellian Maritime Terminal f/Inmarsat Fleet One Service

The Intellian Fleet One Maritime Terminal is your gateway to seamless and reliable communication at sea. Designed specifically for Inmarsat’s Fleet One service, this terminal delivers simultaneous voice and data connectivity, ensuring you stay connected no matter where your voyages take you.

Key Features

• Simultaneous Voice and Data: Enjoy uninterrupted communication with bandwidths up to 150 Kbps, perfect for both personal and professional use onboard.
• Built-in Firewall: Protect your data with advanced security features, ensuring your information remains safe from unauthorized access.
• Emergency Call Capability: The 505 emergency call feature directs urgent calls straight to a Maritime Rescue Coordination Centre (MRCC), enhancing safety during critical situations.
• Maritime Safety Terminal Support: Seamlessly integrates with maritime safety systems, providing comprehensive support for all your safety communication needs.
• aptusLX Intuitive Management Tool: Easily manage and monitor your terminal settings with the user-friendly aptusLX software.
• Power over Ethernet (PoE): Equipped with 2 LAN ports supporting PoE, simplifying installation by reducing the need for additional power cables.

Technical Specifications

Specification	Details
ADU (Above Deck Unit) Dimensions	291.1 x 294.5 mm / 11.5" x 11.6"
ADU (Above Deck Unit) Weight	4.9 kg / 10.8 lbs
BDU (Below Deck Unit) Dimensions	280 x 190 x 41 mm / 11.0″ x 7.5″ x 1.45″
BDU (Below Deck Unit) Weight	1.2 kg / 2.6 lbs
DC Input	10.8-30 VDC
Power (Max)	120 W
Transmission Frequency (Tx)	1626.5 MHz - 1675.0 MHz
Reception Frequency (Rx)	1518.0 MHz - 1559.0 MHz
WiFi	802.11 b/g

What’s Included

• ADU (Above Deck Unit)
• BDU (Below Deck Unit)
• Coaxial Cable
• Quick Installation Guide
• Installation Template
• DC Power Cable
• Ethernet Cable

Additional Resources

For more detailed information, download our comprehensive Fleet One Terminal Brochure (PDF).
