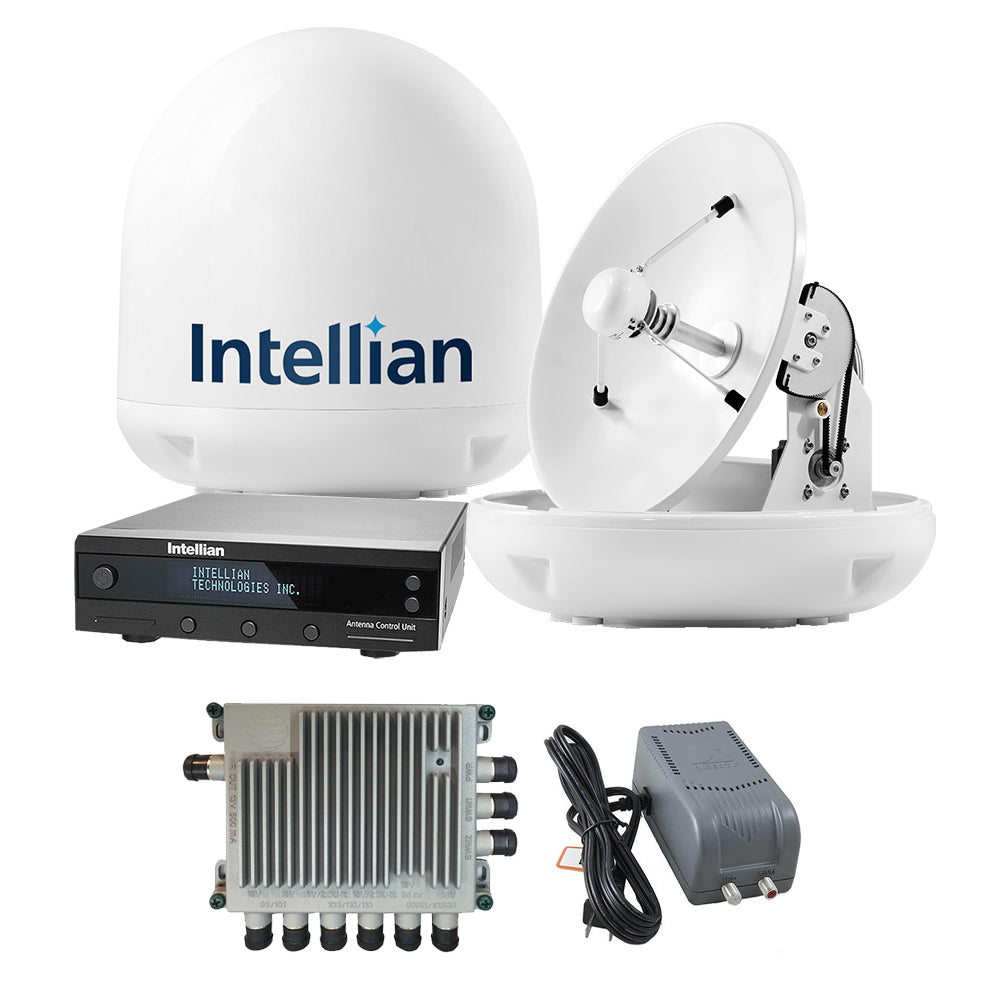

Intellian i4 All-Americas TV Antenna System SWM-30 Kit

The i4 All-Americas TV Antenna System & SWM-30 Kit by Intellian is the ultimate solution for marine enthusiasts seeking reliable and high-performance satellite TV connectivity. Engineered for boats over 50 feet, this robust system ensures uninterrupted entertainment even in challenging sea conditions and high-speed cruising.

i4 All-Americas TV Antenna System

The Intellian i4 stands out with its rugged, dependable design, ensuring consistent performance and signal lock-in. Its sleek dome shape not only enhances the aesthetic of your vessel but also provides superior aerodynamics. Whether you're navigating calm waters or facing rough seas, the i4 maintains a stable connection to premium satellite TV services, delivering unparalleled viewing experiences on the water.

Advanced Tracking Technologies

Equipped with Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, the i4 ensures precise satellite tracking and optimal signal reception without the need for delicate motion sensors. The integrated GPS system accelerates satellite search and acquisition, minimizing downtime and maximizing viewing time.

Integrated HD and TriSat Modules

The i4 features intelligent built-in HD and TriSat modules within its control unit, allowing seamless access to High Definition satellite TV broadcasts from top service providers like Dish Network and Bell TV in Canada. For users requiring DirecTV HD, the Intellian s6HD is recommended. Additionally, the built-in WiFi facilitates effortless one-touch upgrades via the Aptus App, simplifying the user experience.

Easy Installation and Operation

Designed for flexibility, the i4 supports standard dual and quad IRD connections through a single-cable setup between the antenna and the antenna control unit (ACU). This streamlined approach ensures straightforward installation and operation, backed by ISO 9001:2001 quality standards.

Key Features

Fully Automated System

• Automated satellite search and identification
• 2-axis step motor for precise antenna pedestal control

High-Quality Antenna

• 45 cm diameter parabola-type antenna for Ku-Band (10.7-12.75 GHz) signals
• Supports LHCP/RHCP and Horizontal/Vertical polarization
• Enhanced signal gain for superior reception

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) with high-speed BLDC motor for accurate signal maintenance

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm for efficient satellite detection
• Statistical search algorithm for optimized performance

DVB Signal Identification

• High-speed identification using DVB decoder
• QPSK demodulator lock for DSS signal compatibility

Built-in GPS System

• Integrated GPS for automatic data upload and system optimization

SWM-30 Kit

The SWM-30 Kit is the latest external multi-switch designed for DIRECTV, capable of feeding up to 26 tuners across two banks of 13. This kit simplifies wiring and supports 4K installations as well as international WorldDIRECT dishes. It includes a 29-volt power inserter, allowing remote support for SWM-8 or SWM-16 multi-switches via a coaxial cable. The SWM-30 can operate from a splitter's power passing port or from the SWM-16's separate power port.

SWM-30 Features

• Supports two banks of 13 tuners without MoCA/MRV crossover
• Compatible with SWM-8, SWM-16, and SWM-32 multi-switches
• Works with previous generation Slimline dishes
• Compatible with Genie and Genie 2 systems
• Requires WD-DIPLEXER-09 diplexer for WorldDIRECT dishes (sold separately)
• Supports 4K installations with SL5RB or SL3RBAH LNB (requires 6 coax cables to the SWM)
• Output level: -25dBm
• Powers coax-powered devices up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used with SWM-8 and SWM-16 models
• Outputs: 1 IRD & 1 SWM port
• SWM Port Output: 29V

Specifications

Feature	Details
Antenna Dish Diameter	18 inches
Dome Weight	25.6 lbs
Service Coverage	DirecTV, Dish
Voltage Input Range	9-30V
Box Dimensions	5" H x 11" W x 17" L
Weight	49.3 lbs

Owner's Manual (PDF)

Brochure (PDF)
