Humminbird XPT-9-HW-T Dual Spectrum CHIRP Portable Transducer w/Temp

The XPT-9-HW-T Dual Spectrum CHIRP Portable Transducer with Temperature Sensor is the perfect addition to your marine setup, delivering advanced sonar capabilities with ease of installation. Whether you're fishing, navigating, or exploring underwater terrains, this transducer offers reliable performance and versatility for various boating activities.

Product Overview

The XPT-9-HW-T transducer utilizes Dual Spectrum CHIRP 2D Sonar technology, providing both high-frequency beams and a wide cone angle. With an impressive CHIRP frequency range of 150-220 kHz and a maximum depth capability of 1200 feet, this portable transducer ensures clear and detailed underwater imaging. Its suction cup mount allows for quick and secure attachment to smooth surface hulls, making installation hassle-free. The package includes all necessary mounting hardware, a built-in temperature sensor, and a 20-foot cable. Please note that this transducer is not recommended for high-speed boating.

Key Features

• Dual Spectrum CHIRP Technology: Offers Full (150-220 kHz), Narrow (180-240 kHz), and Wide (140-200 kHz) frequency options for versatile sonar performance.
• Extended Depth Range: Capable of operating at depths up to 1200 feet (365 meters).

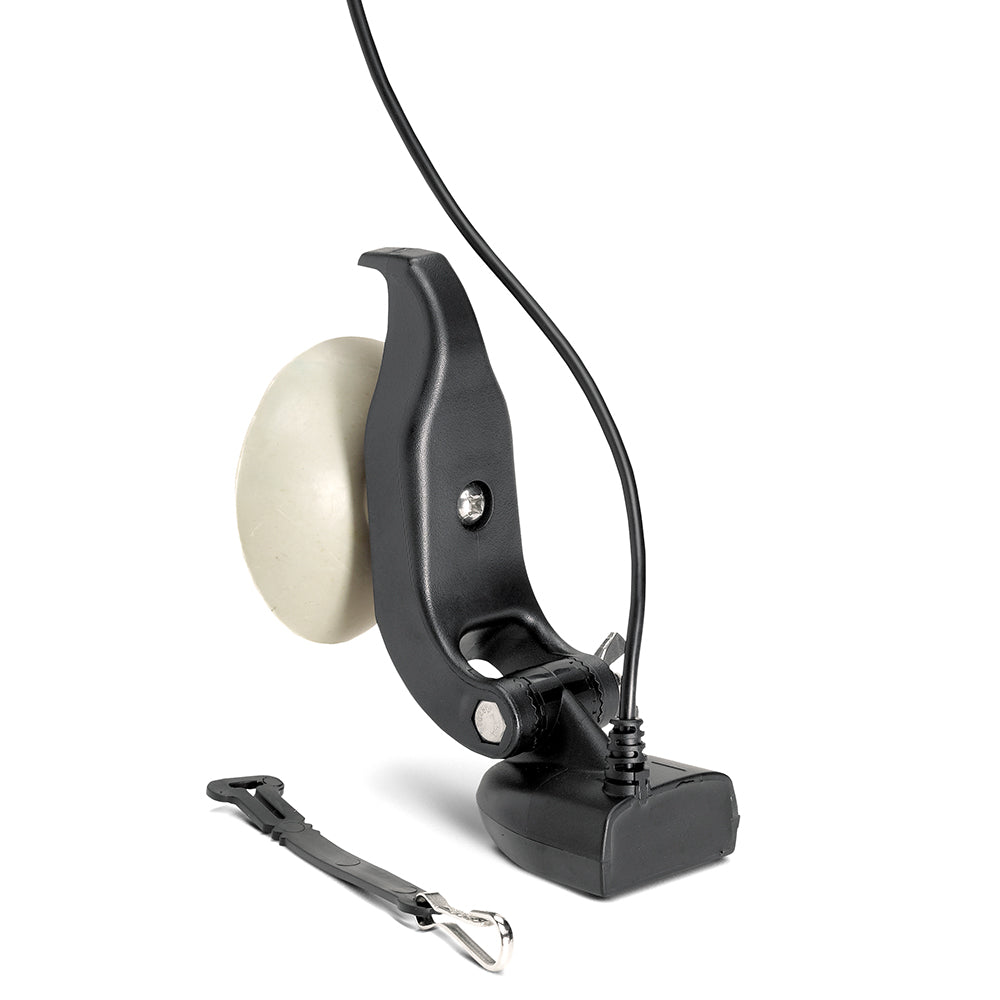

• Easy Installation: Suction cup mount adheres securely to smooth hull surfaces, with all mounting hardware included.
• Built-In Temperature Sensor: Monitors water temperature for enhanced fishing and navigation accuracy.
• Portable Design: Lightweight and compact, weighing only 1.1 lbs with box dimensions of 4"H x 8"W x 9"L.

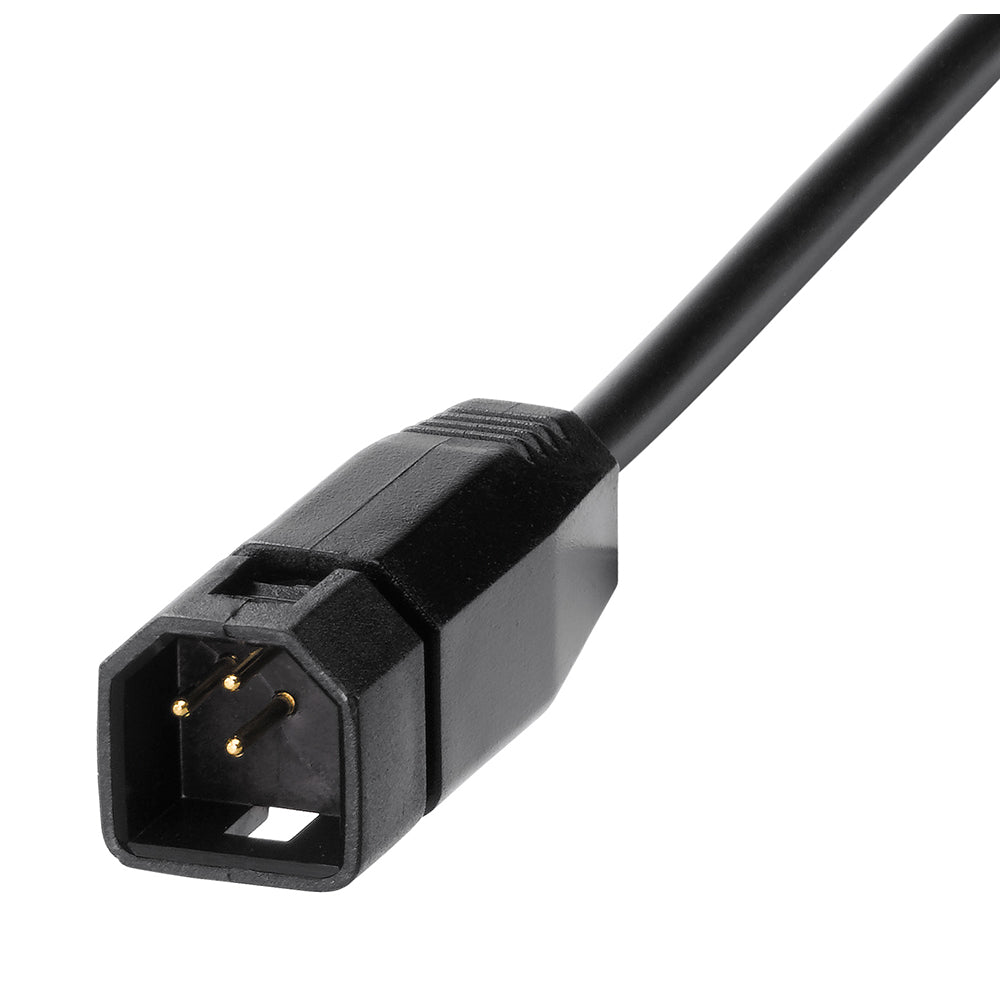

• Included Cable: 20-foot cable length provides flexibility in transducer placement.

Compatibility

The XPT-9-HW-T transducer is compatible with a wide range of Humminbird products, including:

• HELIX 5 CHIRP G2 – GPS-equipped models only
• HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models
• HELIX 7 CHIRP G2N/G3N – All models
• HELIX 8 CHIRP G3N – All models
• HELIX 9 CHIRP G2N/G3N – All models
• HELIX 10 CHIRP G2N/G3N – All models
• HELIX 12 CHIRP G2N/G3N – All models
• ICE HELIX CHIRP G2 – All models (In Open Water Mode)

Additionally, while Side Imaging™ and Down Imaging™ units can support the XPT-9-HW-T as a 2D sonar only transducer, it does not support Side Imaging or Down Imaging functionalities.

Technical Specifications

Installation and Usage

Installing the XPT-9-HW-T transducer is straightforward thanks to its portable suction cup mount. Simply attach the mount to a smooth surface hull, secure the transducer, and connect the 20-foot cable to your compatible Humminbird device. The built-in temperature sensor provides real-time water temperature data, enhancing your fishing and navigation experience.

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed instructions and more information, please refer to the Owner's Manual (PDF).
