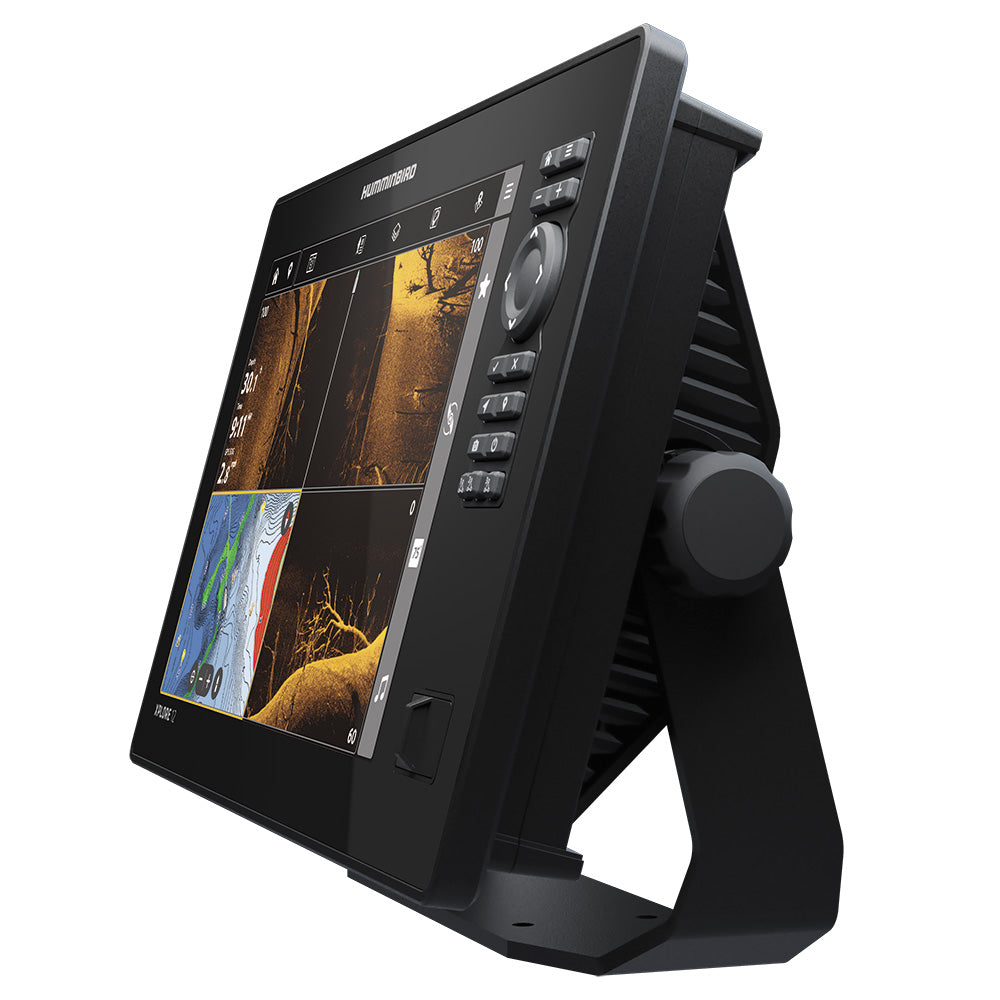

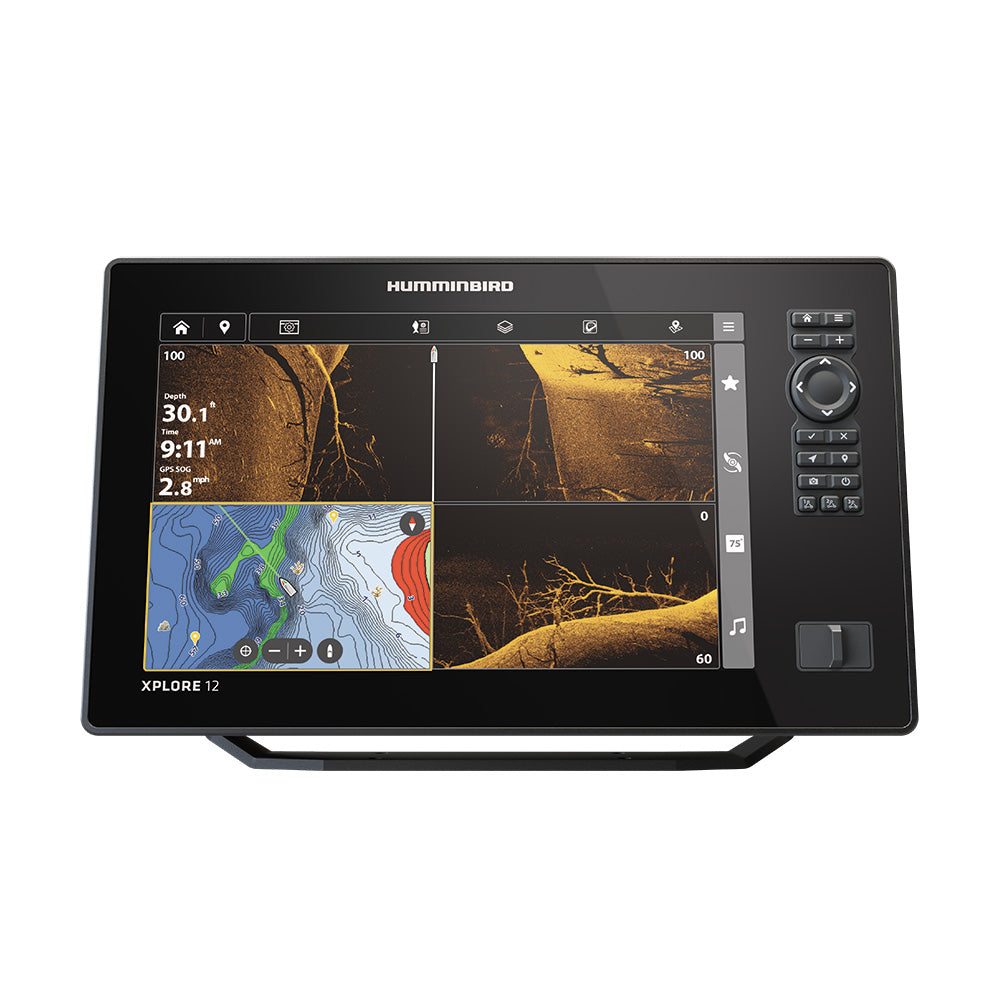

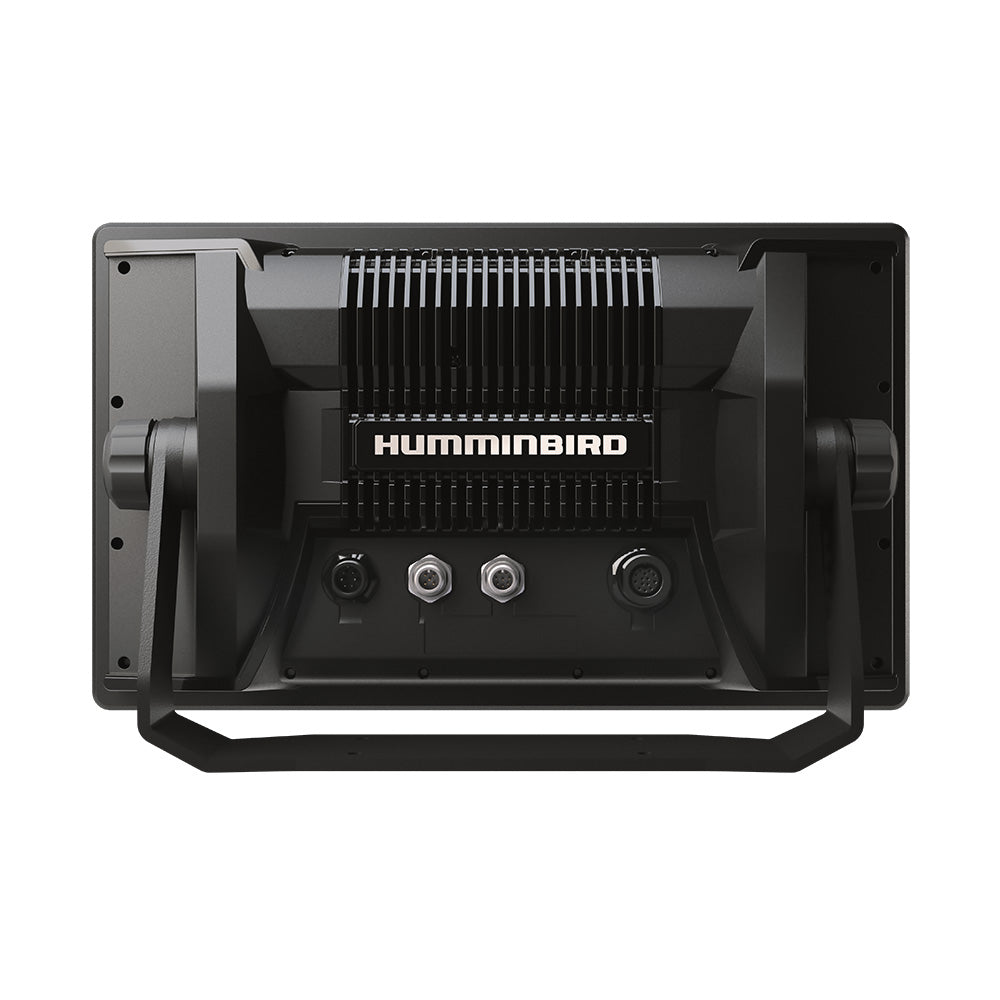

Humminbird XPLORE 12 Control Head Only

The Humminbird XPLORE 12 Control Head Only (CHO) is the ultimate fish finder for marine enthusiasts seeking advanced sonar technology and seamless integration with their boating equipment. Featuring a stunning 12” ultra-clear display, intuitive Cross Touch™ interface, and comprehensive networking capabilities, the XPLORE 12 CHO equips anglers with the tools needed for an exceptional fishing experience.

Outstanding Features

Control Head Only Model

• This model does not include a transducer, providing flexibility to choose your preferred transducer setup.
• Ideal for connecting to Built-in MEGA Imaging trolling motors from Minn Kota®, MEGA 360 Imaging transducers, or sharing sonar data through an existing Humminbird Ethernet network.
• Operate effortlessly using the user-friendly menu system via the touchscreen or directional keypad, ensuring reliable performance in any fishing condition.

Full-HD 12” Display with Cross Touch® Interface

• Experience crystal-clear visuals with a 1280H x 800V resolution display, delivering exceptional detail in sonar and chart images.
• Choose between touchscreen control or the intuitive directional keypad to navigate menus and settings with ease.

Dual Spectrum CHIRP Sonar

• Gain a comprehensive view of underwater structures and fish with detailed fish arches and clear visuals.
• Powered by Humminbird’s proprietary Low-Q CHIRP transducer, Dual Spectrum offers two search modes:
  • Wide Mode: Maximizes coverage area for broad scanning.
  • Narrow Mode: Focuses on specific targets for enhanced detail.
• Note: Optional transducer required.

MEGA Side Imaging+

• Explore underwater environments up to 200 feet on either side of your boat with stunning clarity.
• Unlock 20% more detail and enjoy 60% increased range compared to standard MEGA Side Imaging sonar.
• Note: Optional transducer required.

MEGA Down Imaging+

• Achieve unparalleled underwater clarity with Down Imaging coverage extending to 200 feet below your boat.
• Benefit from 20% more detail and 60% greater depth capability than standard MEGA Down Imaging sonar.
• Note: Optional transducer required.

Industry-Leading Humminbird Sonar Technologies

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar for comprehensive underwater monitoring.
• MEGA Imaging+ delivers views up to 250 feet under and out to the sides of your boat, while Dual Spectrum CHIRP offers superior 2D sonar with excellent target separation and fish clarity.

Internal GPS and Humminbird Basemap

• Integrated GPS provides precise navigation and fishing location tracking with Humminbird Basemap.
• Access detailed maps of over 10,000 lakes and coastal areas in the United States and Canada, highlighting buoys, marinas, hazards, contours, and depth markers.

Premium Chart Compatibility

• Choose from Humminbird’s extensive range of premium charts, including LakeMaster® and CoastMaster™ products, as well as compatible Navionics® charts.
• Preloaded with LakeMaster and CoastMaster mapping cards featuring standard North American data for immediate use.

AutoChart Live Mapping

• Create real-time maps of your favorite fishing spots with patented Humminbird® LakeMaster® features.
• Map depth contours, bottom hardness, and vegetation as you navigate, enhancing your fishing strategy.
• Includes eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for extended mapping capabilities.

One-Boat Network Compatibility

• Seamlessly integrate with Minn Kota and Cannon products to expand your fishing system’s functionality.
• Utilize exclusive boat control and fish-catching features available through the One-Boat Network™.

Comprehensive Networking Options

• Ethernet Networking: Connect multiple fish finders or add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar with high-speed Ethernet.
• Bluetooth: Enjoy wireless communication with compatible Talon and Raptor shallow water anchors, Cannon Optimum downriggers, and receive wireless software updates via the Humminbird One-Boat App. Additionally, display smartphone notifications directly on your Humminbird display.
• NMEA 2000 Networking Built-in: Connect an accessory NMEA 2000 network to access extensive boat performance data, weather, and water conditions.

Included Accessories

• Control head
• Power adapter
• Unit cover
• Mounting bracket

Compatibility

The Humminbird XPLORE 12 CHO is compatible with a wide range of Minn Kota and Humminbird products, including:

• Minn Kota US2 Sonar
• Minn Kota Built-In MEGA DI
• Minn Kota Talon/Raptor
• Minn Kota i-Pilot Link
• Minn Kota Built-In MEGA SI
• MEGA Live
• NMEA 2000
• MEGA 360
• Radar
• AutoPilot
• One-Boat Network

Specifications

Feature	Specification
Cartography Brand	Humminbird
Screen Size	12"
Display Resolution	1280H x 800V
Touchscreen	Yes
Control Interface	Cross Touch™ and Keypad
Transducer Included	No
Memory Card Slots	Dual Micro SD
Sonar Technologies	Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
CHIRP Frequencies Supported	Narrow Mode: 180-240 kHz Wide Mode: 140-200 kHz Full Mode: 150-220 kHz
Sonar Optional Frequencies	50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
Depth Range	3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
Imaging Frequencies Supported	455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
Down Imaging Depth	200 ft (MEGA), 400 ft (455 kHz)
Side Imaging Range	800 ft (455 kHz), 250 ft (MEGA)
Power Input	10.8-20 VDC
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Mount Type	Standard Gimbal Mount Optional In-Dash Mounting Kit
Mount Dimensions	14.145 in W x 8.911 in H x 3.989 in D
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Receiver	Internal
Waypoints	10,000
Routes	50
Tracks/Points	50/20,000
360 Imaging Compatibility	Yes
MEGA Live Compatibility	Yes
Humminbird Basemap	Included
LakeMaster Compatibility	Yes
CoastMaster Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum+ Compatibility	Yes
Platinum Compatibility	Yes
Minn Kota Advanced GPS Navigation Compatibility	Yes
Minn Kota i-Pilot Link Compatibility	Yes
Minn Kota Talon Shallow Water Anchor Compatibility	Yes
Radar Compatibility	Yes
5-Port Ethernet Switch Compatibility	Yes
AIS Compatibility	Not Supported
Autopilot Compatibility	No
Heading Sensor GPS Compatibility	No
Heading Sensor GPS (NMEA 2000) Compatibility	Yes
NMEA2000	Included
Target Separation	2.5 in
Upgradable Software	Yes
View Preset Keys	Yes
X-Press Menu System	Yes
Custom Digital Readout	Yes
Custom View Selections	Yes
Display Colors Grayscale	24-Bit
Display Type	Color TFT
Speed	Included
Temperature	Built-In
Temperature Alarm	Yes
Temperature Graph	Yes
HDMI Compatible	No
Warranty	Two-Year Limited Warranty
Box Dimensions	12"H x 13"W x 19"L
Weight	13.1 lbs
UPC	082324058707

Warranty Information

The Humminbird XPLORE 12 Control Head Only comes with a 2-Year Limited Warranty, ensuring peace of mind and reliable performance for your marine adventures.

Included in the Package

• Control head
• Power adapter
• Unit cover
• Mounting bracket

Additional Resources

For more detailed information, please download the Brochure (PDF).
