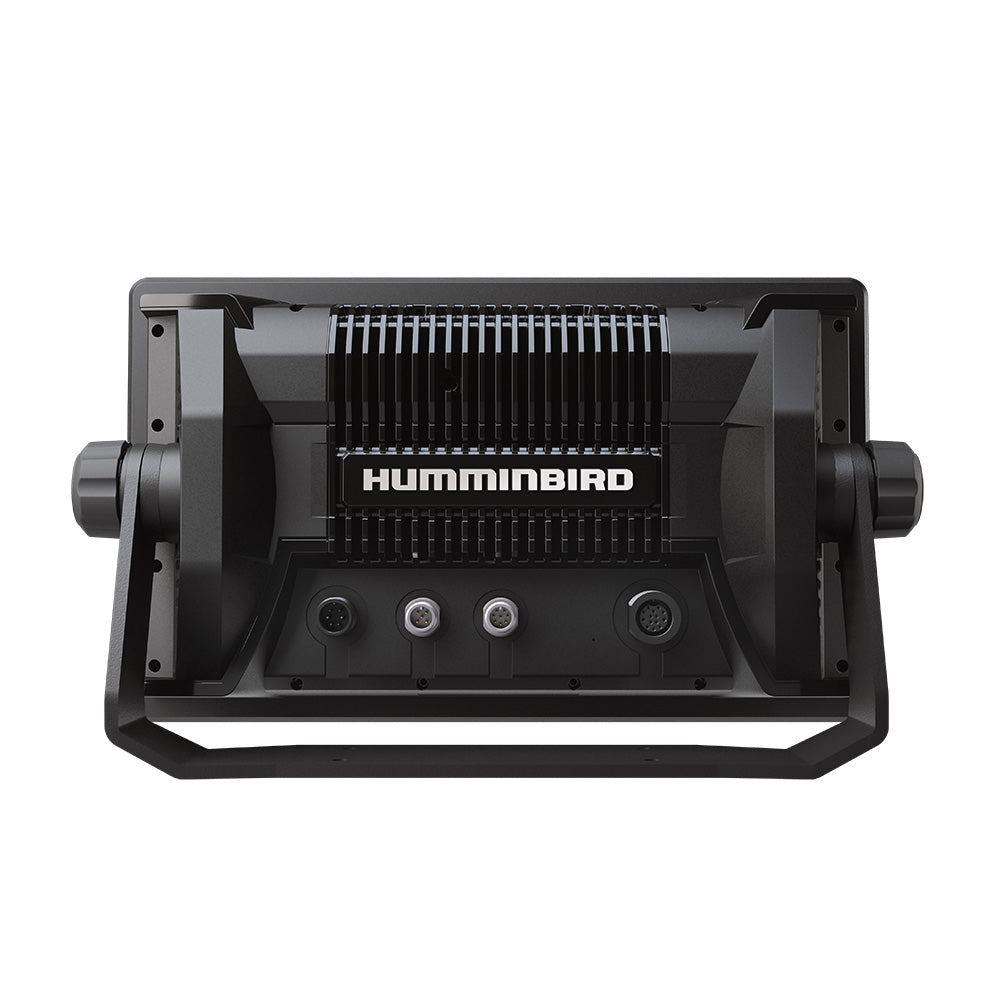

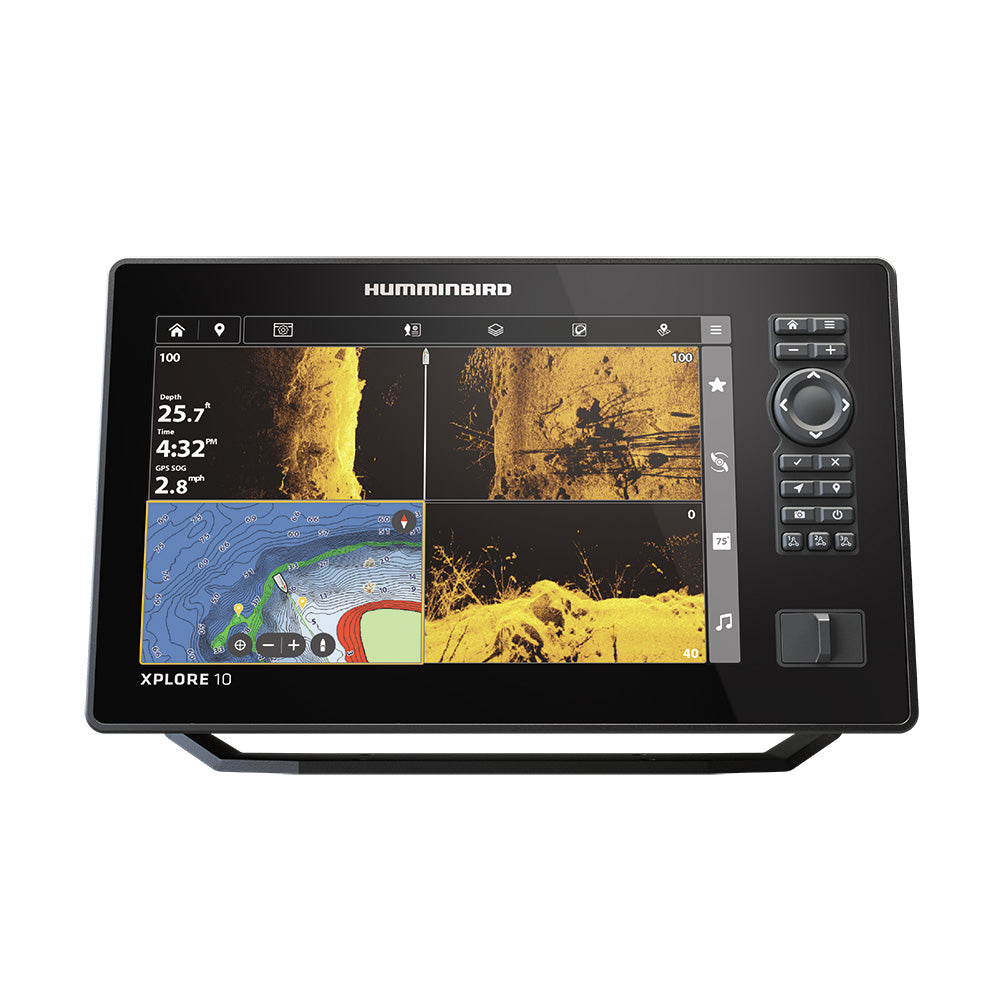

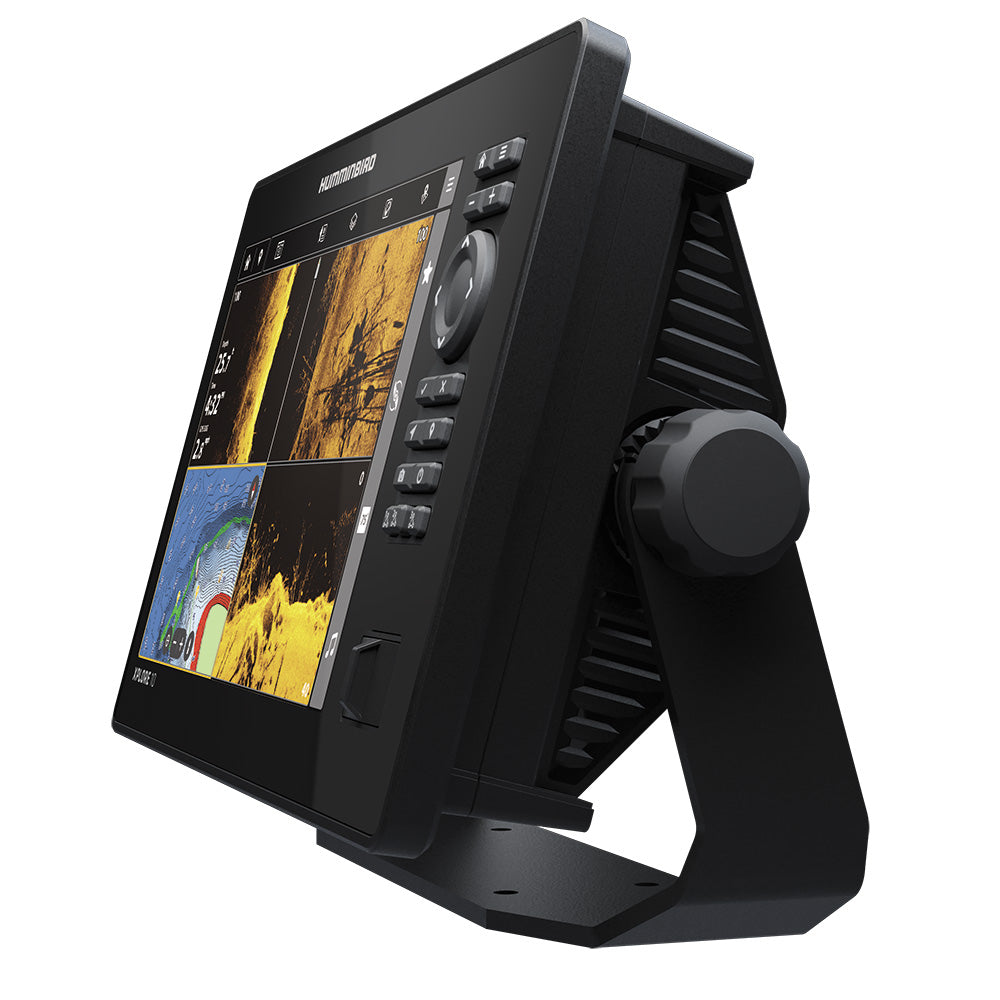

Humminbird XPLORE 10 Control Head Only

The XPLORE 10 Control Head Only is a state-of-the-art fish finder designed for marine enthusiasts seeking unparalleled underwater clarity and advanced navigation features. With its 10” ultra-clear display and seamless integration with a wide range of marine accessories, this control head offers both flexibility and performance for serious anglers.

Key Features

Control Head Only Model

• This model does not include a transducer, providing you the freedom to choose the transducer that best fits your fishing needs. Ideal for connecting to Built-in MEGA Imaging on Minn Kota trolling motors, MEGA 360 Imaging accessory transducers, or sharing sonar data within an existing Humminbird Ethernet network.
• Access preloaded views through an intuitive menu system, operable via touchscreen or directional keypad, ensuring reliable performance in any conditions.

Full-HD Display with Cross Touch® Interface

• Experience stunning detail with a 1280H x 720V Full-HD display. The vibrant screen ensures you never miss a detail, whether viewing sonar or chart images.
• Control your fish finder effortlessly using either the responsive touchscreen or the tactile keypad.

Dual Spectrum CHIRP Sonar

• Advanced sonar technology that provides detailed fish arches and clear views of underwater structures and the bottom. Dual Spectrum offers Wide Mode for maximum coverage and Narrow Mode for enhanced detail.
• Compatible with optional transducers to customize your sonar capabilities.

MEGA Side Imaging+ and MEGA Down Imaging+

• MEGA Side Imaging+ delivers crystal-clear side imaging up to 200 feet on either side of your boat, offering 20% more detail and 60% increased range compared to standard MEGA Side Imaging sonar.
• MEGA Down Imaging+ provides unprecedented underwater clarity down to 200 feet below your boat, enhancing detail and depth capabilities by 20% and 60%, respectively.

Advanced Connectivity and Networking

• Includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking for seamless integration with the One-Boat Network™ family of Humminbird, Minn Kota, and Cannon products.
• High-speed Ethernet allows you to connect multiple fish finders and add technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
• Bluetooth connectivity offers wireless communication with compatible anchors and downriggers, software updates via the Humminbird One-Boat App, and smartphone notification displays.
• Built-in NMEA 2000 networking provides access to comprehensive boat information, including performance, weather, and water conditions.

Internal GPS and Humminbird Basemap

• Enhanced basemap for clear visualization of underwater terrain and surrounding points of interest, enabling confident navigation and fishing.
• Includes charts for over 10,000 lakes and coastal coverage across the continental U.S., with detailed markers for buoys, hazards, marinas, and more.

Premium Chart Compatibility

• Supports a wide range of premium chart options, including Humminbird LakeMaster®, CoastMaster™, and compatible Navionics® charts.
• Comes with LakeMaster and CoastMaster mapping cards featuring standard North American data.

AutoChart Live

• Create real-time maps of your fishing spots with patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation while navigating.
• Includes eight hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for extended mapping capacity.

One-Boat Network Compatible

• Integrates seamlessly with Minn Kota and Cannon products to unlock enhanced fishing features and boat control capabilities, maximizing your time on the water.

Specifications

Feature	Details
Screen Size	10” Full-HD (1280H x 720V)
Touchscreen	Yes, Cross Touch® Interface
Transducer Included	No
Memory Card Slot	Dual Micro SD
Sonar Technologies	Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
GPS	Internal GPS Receiver with Humminbird Basemap
Connectivity	Wi-Fi, Bluetooth, Ethernet, NMEA 2000®
Power Input	10.8-20 VDC
Power Output	8000 Watts Peak-to-Peak, 1000 Watts RMS
Mounting	Standard Gimbal Mount, Optional In-Dash Mounting Kit
Dimensions	Standard Mount: 12.098"W x 7.702"H x 3.891"D Optional Mount: 12.098"W x 7.702"H x 3.891"D
Weight	10.5 lbs
Compatibility	Minn Kota US2 Sonar, Built-In MEGA DI/SI, Talon/Raptor Anchors, i-Pilot Link, MEGA Live, MEGA 360, Radar, AutoPilot, One-Boat Network
Additional Features	AutoChart Live, Premium Chart Support, One-Boat Network Integration, Custom Views, Temperature Graph, Speed Display
Warranty	2-Year Limited Warranty

What's Included

• Control Head
• Power Adapter
• Unit Cover
• Mounting Bracket

Compatibility

Compatible with a wide range of Minn Kota and Humminbird products, including:

• Minn Kota US2 Sonar
• Minn Kota Built-In MEGA DI
• Minn Kota Talon/Raptor Anchors
• Minn Kota i-Pilot Link
• Minn Kota Built-In MEGA SI
• MEGA Live
• NMEA 2000®
• MEGA 360
• Radar
• AutoPilot
• One-Boat Network™

Technical Specifications

• Cartography Brand: Humminbird
• Screen Size: 10"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 11"H x 11"W x 16"L
• Weight: 10.5 lbs
• UPC: 082324058684

Warranty

• 2-Year Limited Warranty

Additional Resources

Download the Brochure (PDF)
