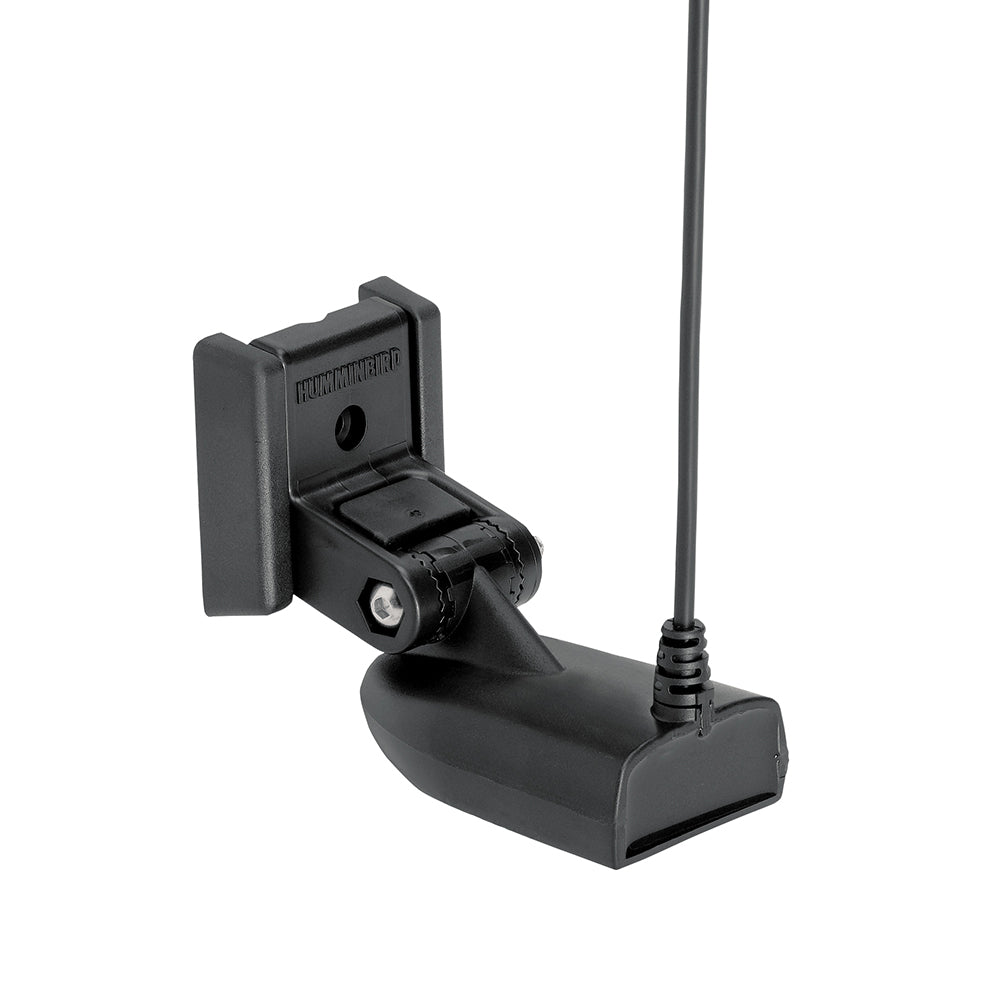

Humminbird XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer w/Temp f/HELIX 7/8 MEGA SI

The XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer delivers exceptional sonar performance tailored for marine and boating enthusiasts. Whether you're a professional angler or a recreational boater, this transducer enhances your vessel's imaging capabilities with advanced Dual Spectrum CHIRP technology and built-in temperature monitoring.

Key Features

• Dual Spectrum CHIRP Sonar: Offers a comprehensive range of frequencies (Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz) for detailed underwater imaging.
• High-Performance Imaging: Equipped with MEGA Side Imaging (MEGA SI) and MEGA Down Imaging (MEGA DI) for expansive side-to-side and downward views.
• Exceptional Depth Capability: Dual Spectrum CHIRP reaches depths up to 1200 feet (365 meters), ensuring visibility in deep waters.
• Built-In Temperature: Integrated temperature sensor provides real-time water temperature readings.
• Wide Compatibility: Seamlessly integrates with HELIX 7 CHIRP MEGA SI GPS G3/G4 and HELIX 7 CHIRP MEGA SI GPS G3N/G4N systems.
• Durable Transom Mount: Ensures secure installation and reliable performance in various marine environments.
• Long Cable: Includes a 20-foot cable for flexible installation options.

Technical Specifications

Specification	Details
Frequencies	455 kHz and 1.2 MHz
Dual Spectrum CHIRP Frequencies	Full: 150-220 kHz Narrow: 180-240 kHz Wide: 140-200 kHz
Dual Spectrum CHIRP Max Depth	1200 ft (365 m)
Side Imaging Frequencies	455 kHz: 440-500 kHz - 800 ft (146 m) MEGA SI: 1075-1150 kHz - 250 ft (76 m)
Down Imaging Frequencies	455 kHz: 440-500 kHz - 125 ft (38 m) MEGA DI: 1075-1150 kHz - 75 ft (23 m)
Temperature	Yes
Pins	7
Mounting Style	Transom
Speed Included	No
Imaging Modes	Standard, Down, Side
Chirp	High Wide
Cable Length	20 feet
Box Dimensions	4" H x 8" W x 9" L
Weight	1.45 lbs
UPC	082324053498

Compatibility

The XNT-9-HW-MSI-150-T transducer is fully compatible with the following HELIX systems:

• HELIX 7 CHIRP MSI GPS G3
• HELIX 7 CHIRP MSI GPS G3N
• HELIX 7 CHIRP MSI GPS G4
• HELIX 7 CHIRP MSI GPS G4N

Installation and Usage

Designed for transom mounting, the XNT-9-HW-MSI-150-T ensures a secure and stable installation on your vessel. The included 20-foot cable provides flexibility in positioning your helm, allowing for optimal sonar performance. Utilize the built-in temperature sensor to monitor water conditions, enhancing your fishing strategy and overall boating experience.

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Owner's Manual

Download Owner's Manual (PDF)
