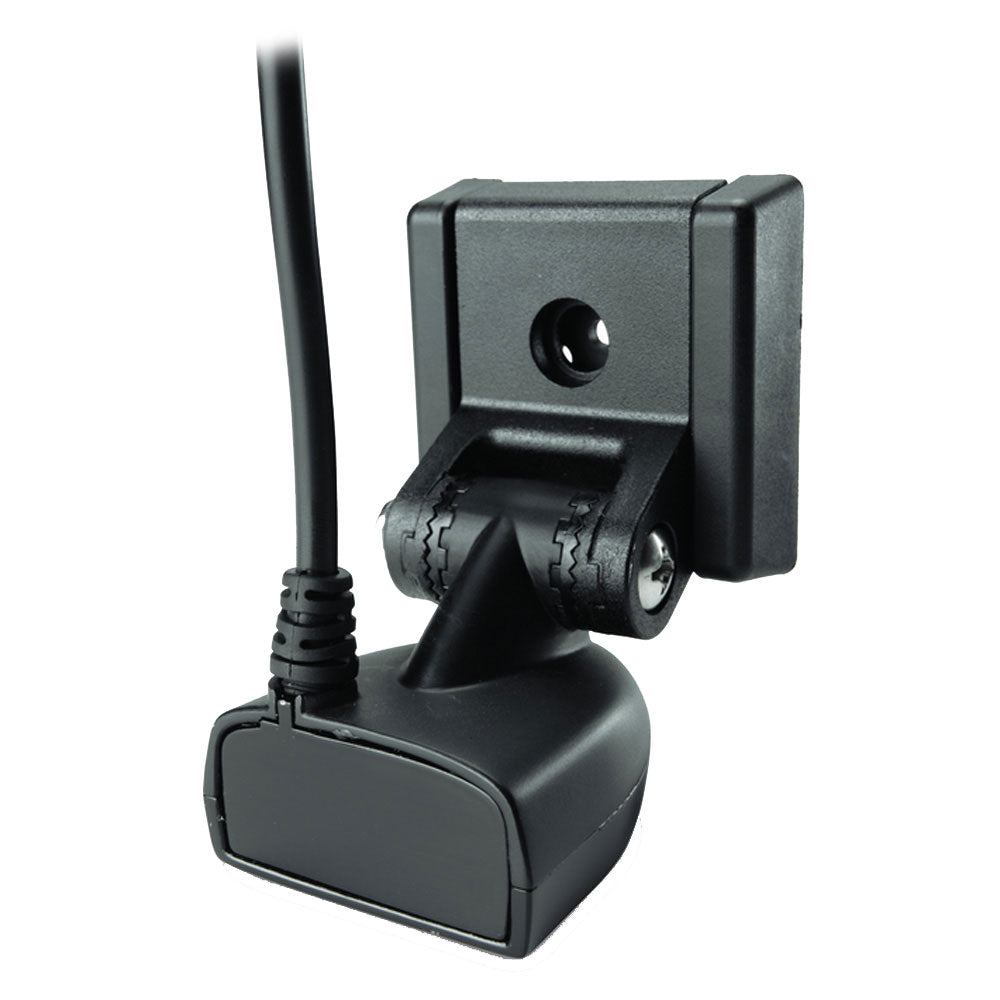

Humminbird XNT-9-20-T TM Transducer - 83/200 kHz

Transom Mount Transducers provide boaters with reliable and precise fish-finding capabilities by securely mounting on the transom (back) of your vessel. Engineered for optimal contact with the water surface, these transducers ensure accurate readings while protecting both your boat and the transducer from potential damage. With included transom mount hardware, installation is straightforward and hassle-free.

Features

• Innovative transom mount design enhances stability and durability.
• Available in Single or Dual Beam with 20° and 60° angles.
• Dual Frequencies: 200 kHz and 83 kHz for versatile fishing conditions.
• Built-in temperature sensor for real-time water temperature monitoring.
• Improved running angle minimizes kick-up in rough waves.
• Optional lock-down screw allows manual override of the kick-up mechanism.
• Compatible with existing transducers featuring the same hole pattern.

Specifications

Temperature Sensor	Yes
Speed Included	No
Number of Pins	7
Mounting Style	Transom
Imaging	Standard
Chirp Technology	No
Cable Length	20' (Feet)
Box Dimensions	4" H x 8" W x 9" L
Weight	1.1 lbs
UPC	082324507489

Compatibility

Compatible with a wide range of marine sonar systems, including:

• Matrix Series: 10, 12, 15, 17, 20, 27, 67, 77c, 87c, 97, 717, 727, 737, 767, 777, 787
• Other Models: 323, 343, 363, 383, 141, 161
• PMax Series: PMax10, PMax15, PMax20, PMax210, PMax215, PMax220
• Additional Models: 917c, 931c, 937c, 957c, 997c, 515, 525, 535, 565, 580, 585c, 595c, Piranha 2, Piranha 4, XP2000, XP4000

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Downloads

• Quick Guide (PDF)
• Owner's Manual (PDF)
