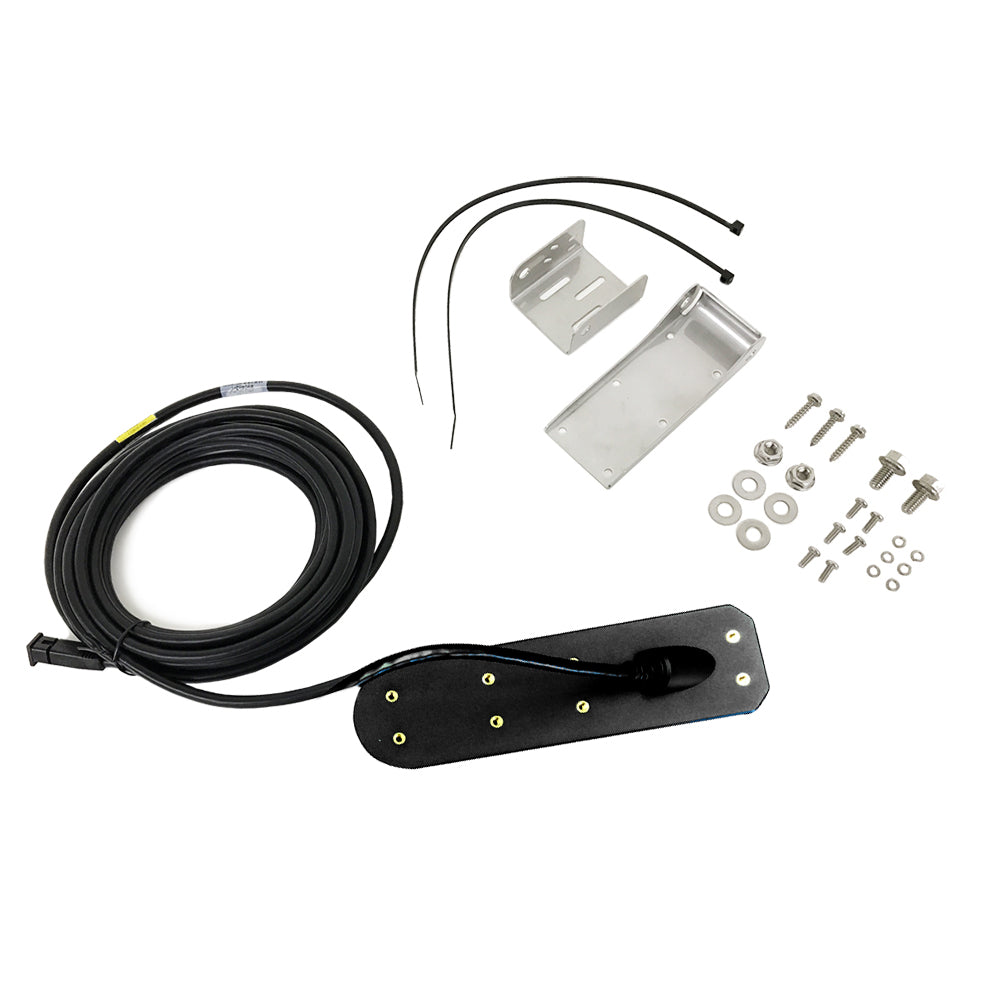

Humminbird XM 9 HW MSI T MEGA Side Imaging+ Transom Mount Transducer

The XM 9 HW MSI T MEGA Side Imaging+™ Transom Mount Transducer is a cutting-edge sonar accessory designed for marine enthusiasts seeking superior underwater imaging. Engineered to deliver exceptional performance, it integrates seamlessly with a variety of Humminbird chartplotters, providing anglers and boaters with detailed and reliable sonar data for an enhanced boating experience.

Key Features

• Advanced Sonar Technology: Supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar, offering a comprehensive CHIRP range of 150-220kHz for versatile underwater imaging.
• Enhanced Imaging Capabilities: MEGA Side Imaging+ delivers high-resolution side-to-side views up to 800kHz, while MEGA Down Imaging+ provides clear downward sonar images.
• Built-In Temperature Sensor: Monitors water temperature in real-time, allowing for more accurate fish detection and behavior analysis.
• Durable Construction: Features an all-metal mounting bracket ensuring longevity and stability in various marine environments.
• Extended Cable Length: Comes with a 20-foot cable, providing flexible installation options for different transom setups.
• Compatibility: Fully compatible with a range of Humminbird chartplotters, ensuring seamless integration and optimal performance.

Compatibility

The XM 9 HW MSI T MEGA Side Imaging+ Transom Mount Transducer is compatible with the following Humminbird chartplotters:

• HELIX 8 CHIRP MEGA SI+ GPS G3N
• HELIX 9 CHIRP MEGA SI+ GPS G3N
• HELIX 10 CHIRP MEGA SI+ GPS G3N
• HELIX 12 CHIRP MEGA SI+ GPS G3N

Technical Specifications

Feature	Details
Sonar Frequencies	Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz MEGA Side Imaging+: 455kHz (440-500 kHz) – Max Depth: 800ft (244m) 800kHz (790-850 kHz) – Max Depth: 250ft (76m) MEGA SI+: 1075-1150 kHz – Max Depth: 400ft (122m) MEGA Down Imaging+: 455kHz (440-500 kHz) – Max Depth: 400ft (122m) 800kHz (790-850 kHz) – Max Depth: 125ft (38m) MEGA DI+: 1075-1150 kHz – Max Depth: 200ft (61m)
Maximum Depth	Dual Spectrum CHIRP: 1200ft (365m)
Temperature Sensor	Yes
Imagining Modes	Standard, Down, Side
Pins	7
Mounting Style	Transom
Chirp	High Wide
Cable Length	20' (feet)
Speed Included	No
Box Dimensions	4" H x 9" W x 15" L
Weight	2.75 lbs
UPC	082324053269

Safety Information

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Warranty

Enjoy peace of mind with a 1-Year Limited Warranty, ensuring your transom mount transducer remains in top condition.

Additional Resources

For detailed installation instructions and product information, refer to the Owner's Manual (PDF).
