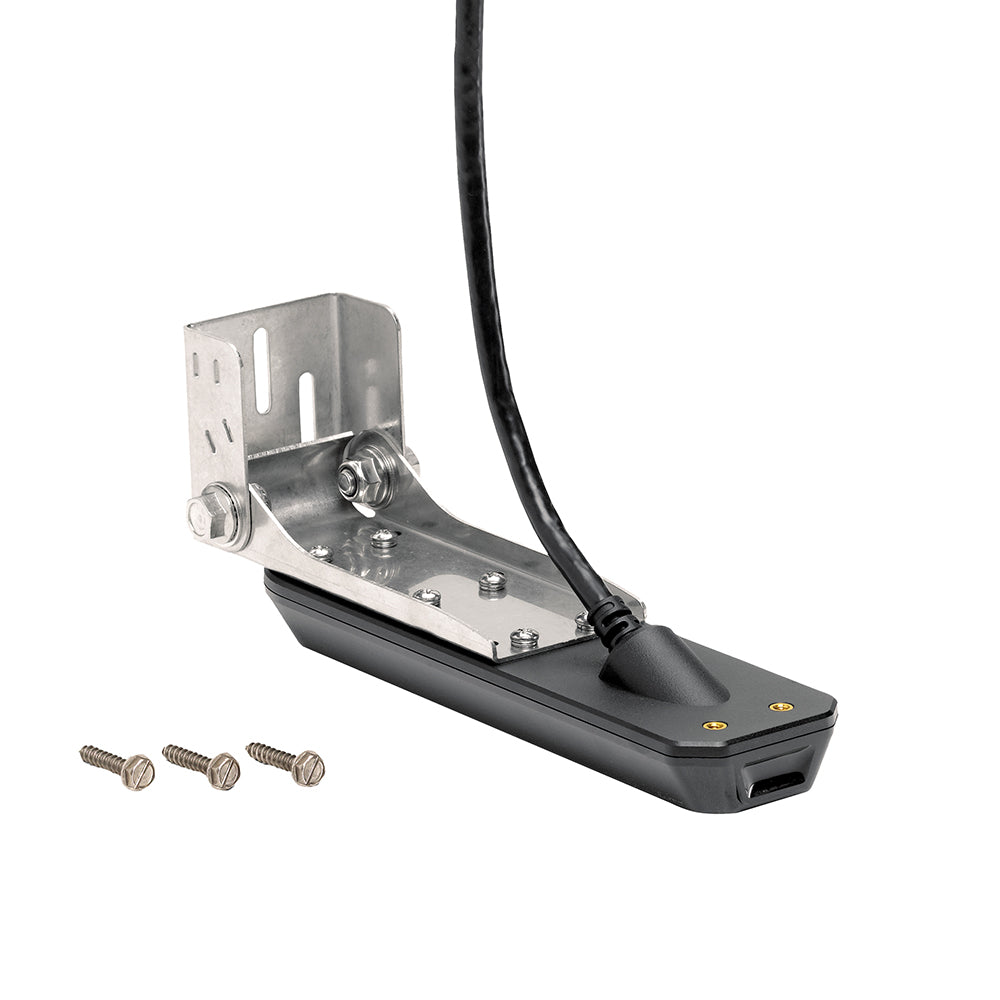

Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX
Humminbird XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer w/Temp f/SOLIX is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temperature Sensor is engineered for superior sonar performance on your SOLIX™ fishing electronics. This high-performance transom mount transducer delivers exceptional imaging capabilities, robust durability, and precise temperature measurements, ensuring an enhanced fishing experience on the water.
Advanced Sonar Technology
Experience unparalleled underwater imaging with the Dual Spectrum CHIRP and MEGA Side Imaging+ technologies. The transducer operates across a wide range of frequencies, providing detailed 2D sonar views and real-time temperature readings to help you locate fish with accuracy.
Dual Spectrum CHIRP
| Frequency Mode | Range (kHz) | Max Depth |
|---|---|---|
| Full | 150-220 | 1200ft (365m) |
| Narrow | 180-240 | 1200ft (365m) |
| Wide | 140-200 | 1200ft (365m) |
MEGA Side Imaging+
Provides detailed side-to-side views of underwater structures and fish, enhancing your ability to make informed fishing decisions.
| Frequency | Range (kHz) | Max Range |
|---|---|---|
| 455kHz | 440-500 | 800ft (244m) |
| 800kHz | 790-850 | 250ft (76m) |
| MEGA SI+ | 1075-1150 | 400ft (122m) |
MEGA Down Imaging+
Delivers clear downward views to monitor fish activity below your boat, ensuring you never miss a catch.
| Frequency | Range (kHz) | Max Depth |
|---|---|---|
| 455kHz | 440-500 | 400ft (122m) |
| 800kHz | 790-850 | 250ft (76m) |
| MEGA DI+ | 1075-1150 | 200ft (61m) |
Robust and Reliable Design
Built to withstand the harsh marine environment, the XM-14-HW-MSI-T features a rugged composite construction and an all-metal bracket for secure mounting. The 20-foot cable ensures flexible installation, allowing you to position the transducer for optimal performance.
Key Features
- Compatible with Humminbird SOLIX 10, 12, and 15 CHIRP MEGA SI+ GPS G2 models
- Integrated temperature sensor for real-time water temperature monitoring
- Dual Spectrum CHIRP frequencies for versatile sonar applications
- MEGA Side Imaging+ and MEGA Down Imaging+ for comprehensive underwater views
- Durable composite body with an all-metal mounting bracket
- 20-foot high-quality, marine-grade cable
Technical Specifications
| Cable Length | 20' (feet) |
| Temperature Sensor | Yes |
| Speed Included | No |

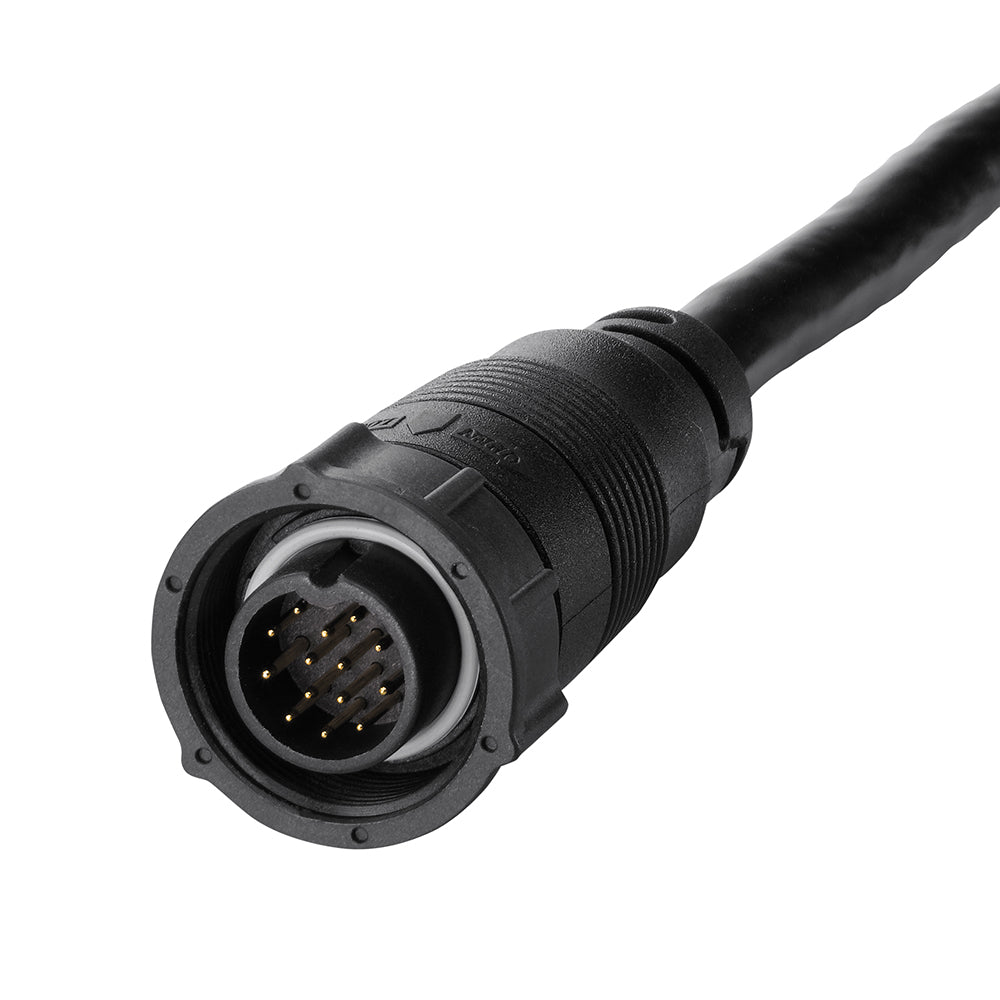

| Number of Pins | 14 |
| Mounting Style | Transom |
| Imaging Modes | Standard, Down, Side |
| Chirp Modes | High, Wide |
| Box Dimensions | 4"H x 9"W x 15"L |
| Weight | 2.9 lbs |
| UPC | 082324053252 |
Additional Resources
For more detailed information on installation and usage, please refer to the Owner's Manual (PDF).
