Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer w/Temp f/SOLIX MEGA DI

Enhance your fishing adventures with the XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer. Engineered for precision and durability, this high-performance transducer delivers exceptional sonar imaging and depth capabilities, seamlessly integrating with Humminbird's SOLIX™ MEGA DI series to provide anglers with unparalleled underwater visibility and data accuracy.

Unmatched Sonar Technology

Experience the next level of sonar performance with Dual Spectrum CHIRP. The XM-14-HW-MDI-T supports a wide range of frequencies from 150-220kHz, enabling clear detection of fish and underwater structures. Whether you are targeting shallow waters or venturing into deep-sea fishing, this transducer adapts to your needs, ensuring you never miss a catch.

Comprehensive Features

• Advanced Sonar Technology: Supports MEGA Imaging+, Dual Spectrum CHIRP 2D Sonar with a frequency range of 150-220kHz, ensuring clear and precise underwater views.
• Temperature Sensor: Built-in sensor for accurate water temperature readings, enhancing your fishing strategy.

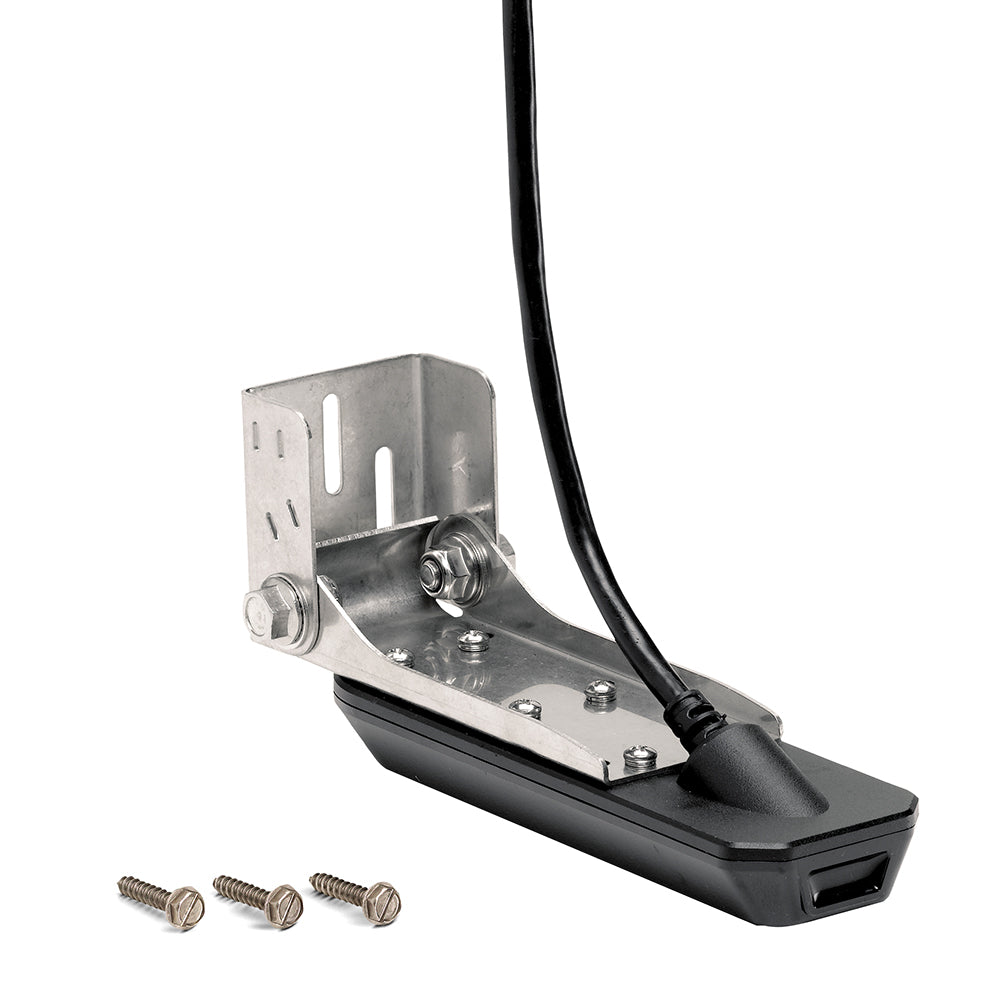

• Rugged Design: Crafted with a robust composite construction and all-metal bracket to withstand harsh marine environments.

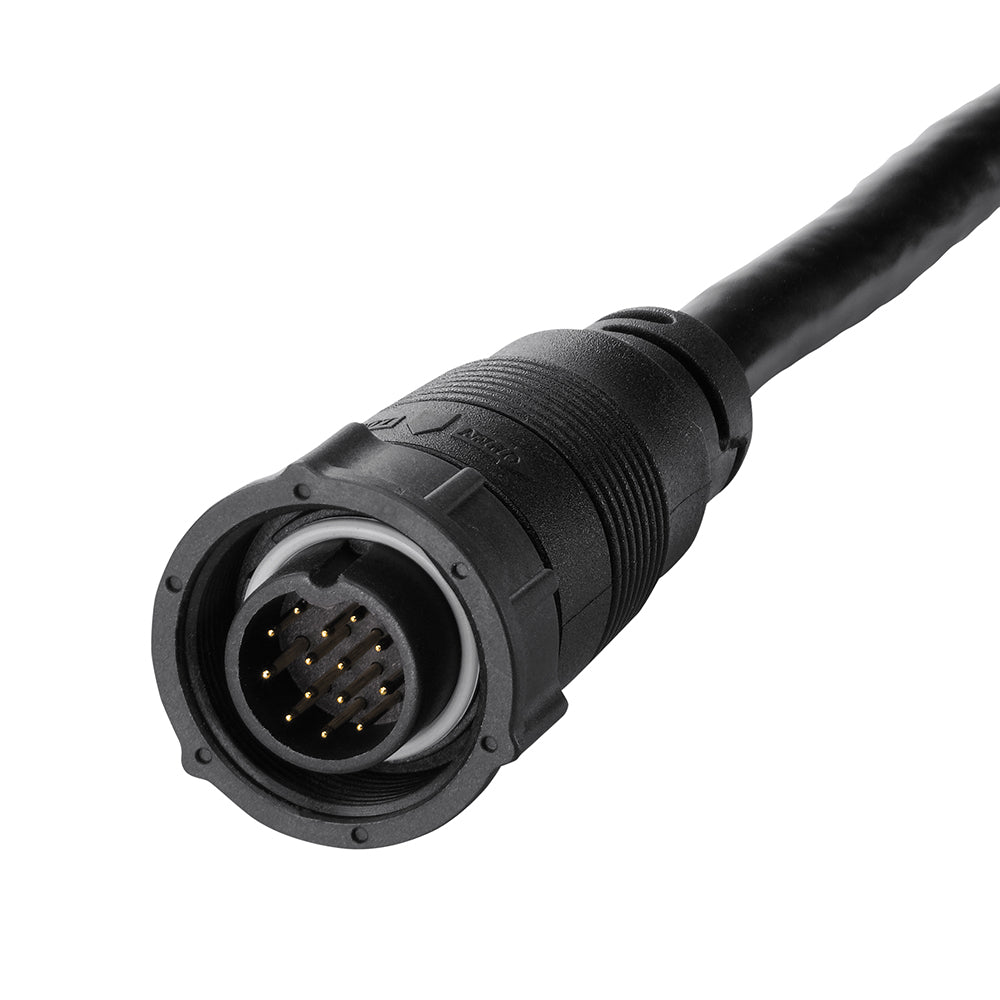

• Extended Cable Length: Comes with a 20’ cable for flexible installation options on various transom configurations.
• Wide Compatibility: Fully compatible with Humminbird SOLIX 10, 12, and 15 CHIRP MEGA DI+ GPS G2 models.

Technical Specifications

Advanced Sonar Performance

The Dual Spectrum CHIRP technology offers multiple frequency settings tailored for various fishing environments:

• Full Spectrum: 150-220 kHz
• Narrow Spectrum: 180-240 kHz
• Wide Spectrum: 140-200 kHz

These settings allow anglers to customize their sonar configurations based on specific fishing conditions and target species, ensuring optimal detection and imaging performance.

Depth Capabilities

With a Dual Spectrum CHIRP maximum depth of 1200ft (365m), the XM-14-HW-MDI-T transducer is perfect for both fresh and saltwater fishing. The MEGA Down Imaging frequencies are as follows:

This extensive depth capability ensures comprehensive underwater mapping, allowing you to identify fish, structures, and other underwater features with ease.

Seamless Compatibility

This transom mount transducer is compatible with the following Humminbird models:

• SOLIX 10 CHIRP MEGA DI+ GPS G2
• SOLIX 12 CHIRP MEGA DI+ GPS G2
• SOLIX 15 CHIRP MEGA DI+ GPS G2

Ensure your fishing setup is equipped with this high-performance transducer for the best underwater imaging and sonar capabilities.

Safety Information

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Owner's Manual (PDF)
