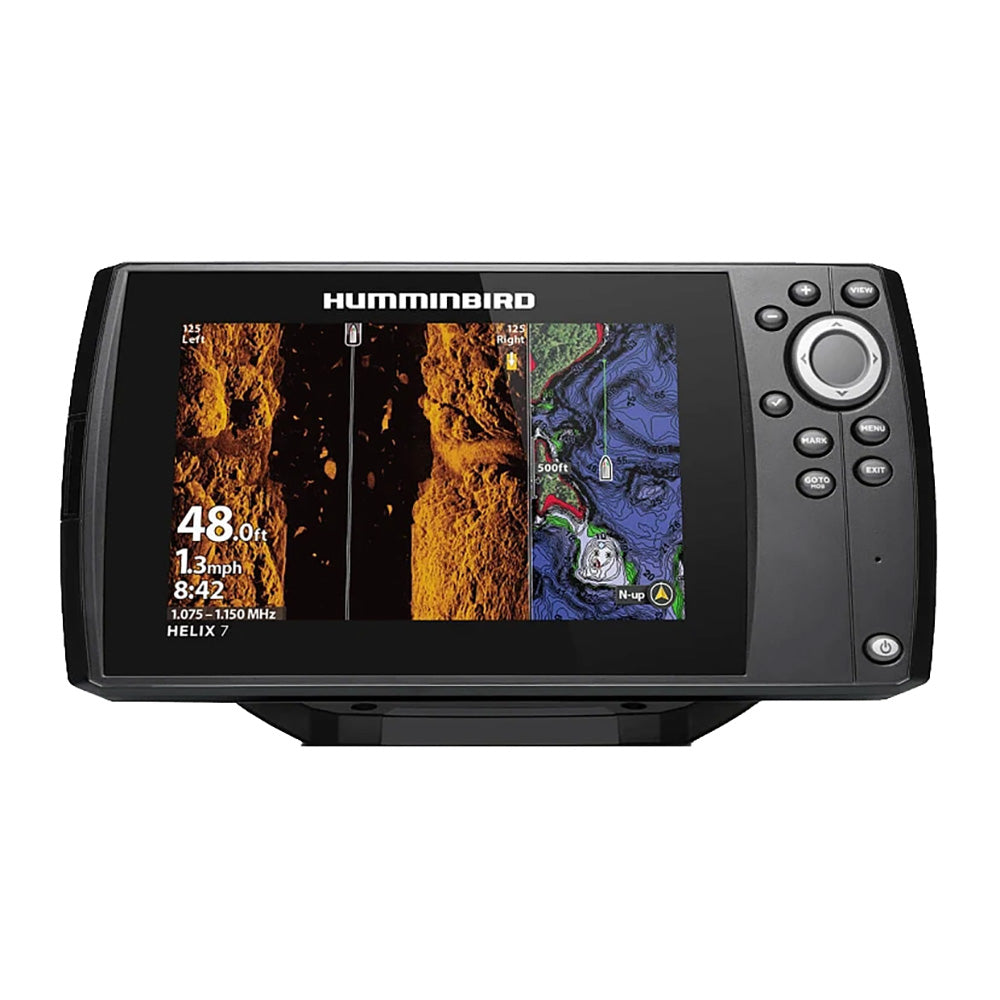

Humminbird HELIX 7 GPS CHIRP MSI G4
Humminbird HELIX 7 GPS CHIRP MSI G4 is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
$100 Back Via Prepaid Humminbird Mastercard with Qualifying Purchases UNTIL 03/31/2025 VIEW
The Humminbird HELIX 7 GPS CHIRP MSI G4 is a state-of-the-art fish finder designed for marine enthusiasts seeking unparalleled underwater visibility and advanced navigation features. Equipped with MEGA Side Imaging and Down Imaging, Dual Spectrum CHIRP Sonar, and built-in GPS with Humminbird Basemap, this fish finder ensures you never miss a catch.
Key Features
- Keypad Control: Easily navigate through pre-loaded views using the intuitive keypad, allowing reliable operation in any boating condition.
- MEGA Side Imaging: Experience crystal-clear side views up to 125 feet on each side, revealing up to three times more detail than standard side imaging sonar.
- MEGA Down Imaging: Achieve unmatched clarity with down imaging coverage up to 125 feet below your boat, providing three times the detail of standard down imaging sonar.
- Dual Spectrum CHIRP Sonar: Gain a comprehensive view of underwater structures and fish activity with both Wide Mode for extensive coverage and Narrow Mode for detailed insights.
- Internal GPS & Humminbird Basemap: Navigate with confidence using the integrated GPS and detailed basemaps that highlight buoys, hazards, marinas, and more. Includes charts for over 10,000 lakes and U.S. coastal areas.
- Premium Chart Compatibility: Enhance your maps with optional Humminbird LakeMaster® and CoastMaster™ charts or compatible Navionics® charts for a complete underwater perspective.
- AutoChart Live: Generate real-time maps of your fishing spots, capturing depth contours, bottom hardness, and vegetation as you navigate. Comes with 8 hours of recording time and expandable storage via AutoChart Zero Line SD cards.
- Comprehensive Package: Includes control head, transom-mount transducer, power cable, gimbal mounting bracket, and all necessary hardware for easy installation.
- 1-Year Limited Warranty: Peace of mind with Humminbird’s reliable warranty coverage.
Technical Specifications
| Feature | Specification |
|---|---|
| Display Size | 7" Diagonal |
| Display Resolution | 1024H x 600V |
| Included Transducer | XNT 9 HW MSI 150 T |
| Compatibility | Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, AIS, AutoPilot |
| Sonar Features | Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging |
| Memory Card Slot | Single Micro SD |
| Sonar Coverage | 20°, 42°, 60°, & (2) 86° @ -10dB |
| SONAR Frequencies Supported | 50/83/200/455/800 kHz & 1.2 MHz |
| Depth Capability | 3,500' (optional 50 kHz), 1,200 ft (standard transducer) |
| Display Type | Color TFT, 16-Bit Grayscale |
| Power Requirements | 10.8-20 VDC, 800 mA draw |
| Mounting Options | Gimbal (Standard), In-Dash Mounting Kit (Optional) |
| GPS Features | Internal Receiver, Chartplotting, Trackplotting, 2,750 Waypoints |
| Compatibility | LakeMaster, CoastMaster, Navionics Gold/HotMaps, Navionics Platinum+, Platinum |
| Additional Features | AutoChart Live, X-Press Menu System, Custom Digital Readout, Temperature Graph & Alarm |
| Warranty | One-Year Limited Warranty |
Additional Specifications
- Cartography Brand: Humminbird/Navionics
- Touchscreen: No
- Box Dimensions: 5"H x 14"W x 17"L
- Weight: 5.2 lbs
- UPC: 082324058295
Delivery and Shipping
Delivery and Shipping
Orders of physical products placed by 3 PM EST M-F typically ships the same day, if all requested items are in stock. Weekend orders will typically ship on Monday.
Shipping takes 2-7 days.
We currently ship to the Contiguous 48 States.
Life of Sailing merch is custom made for the customer after an order is placed. Total turnaround is typically 7-14 days from order to doorstep.
