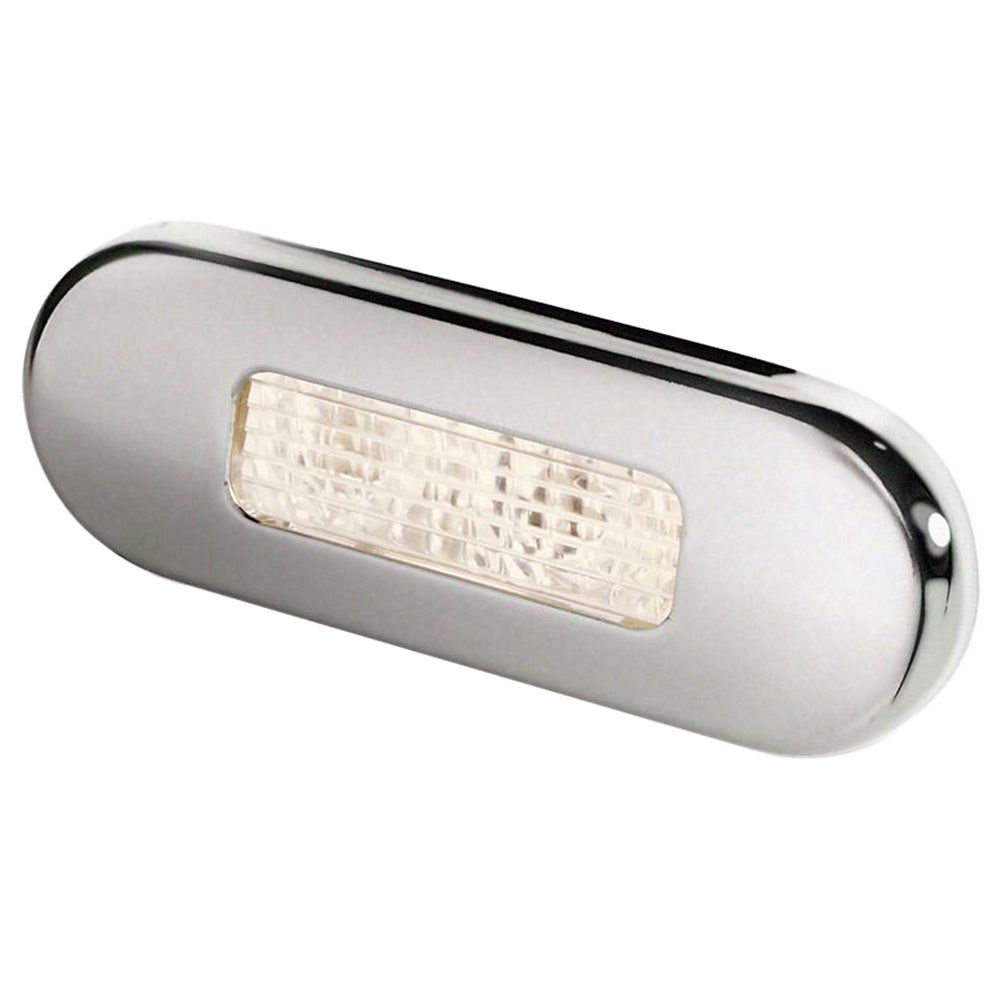

Hella Marine Surface Mount Oblong LED Courtesy Lamp - Warm White LED - Stainless Steel Bezel

The Surface Mount Oblong LED Courtesy Lamp is an essential lighting solution tailored for marine and boating applications. Featuring a warm white LED and a sleek stainless steel bezel, this lamp delivers reliable and energy-efficient illumination, perfect for both step lighting and general courtesy lighting around your vessel.

Optimized for Marine Environments

Designed specifically for the demanding conditions of marine settings, our oblong LED lamps ensure exceptional performance whether installed on the interior or exterior of your vessel. The dedicated step lamps utilize advanced optics to direct light downward at a 30° angle, providing safe and effective illumination of deck and step tread surfaces without causing glare or discomfort to the eyes.

Durable and Sealed Construction

Built to withstand the harshest marine conditions, these LED lamps are completely sealed with an IP67 rating, making them suitable for both wet and dry installations. The polished 316 stainless steel bezels not only offer a stylish finish but also provide superior resistance to corrosion and environmental wear, ensuring longevity and maintaining a pristine appearance over time.

Energy Efficient Performance

Operating on a multi-voltage system (12/24V DC), the Surface Mount Oblong LED Courtesy Lamp boasts impressive energy efficiency with a power consumption of just 0.5W. This low power draw translates to minimal impact on your vessel's electrical system, prolonging battery life and reducing overall energy usage without compromising on brightness or performance.

Easy Installation and Lightweight Design

Installation is hassle-free thanks to the pre-wired 120mm marine cable and included stainless steel screws. Weighing only 35g (including the cable), these lamps are lightweight and easy to mount in any desired location on your vessel, whether you're enhancing your boat's interior ambiance or improving exterior visibility.

Technical Specifications

Feature	Details
Lens Material	UV and enhanced impact-resistant Grilamid
Rim Material	316 stainless steel
Cable	Pre-wired with 120mm marine cable
Operating Voltage	MultiVolt 12 / 24V DC
Power Consumption	0.5W (< 0.04A@12V / < 0.02A@24V)
Degree of Protection	IP67 - Completely Sealed
Bulb Type	LED
Voltage - Input Range (Volts)	12/24V
Housing	Stainless Steel
LED Color	Warm White
Dimming	No
Box Dimensions	2"H x 4"W x 6"L
Weight	35g (including cable)
Approvals	CE
UPC	9416325234012
Mounting	Stainless steel screws included

Included Components

• Polished 316 Stainless Steel Bezels
• Black and White Plastic End Caps
• Stainless Steel Mounting Screws

Additional Resources

For more detailed information, please refer to our brochure (pdf).
