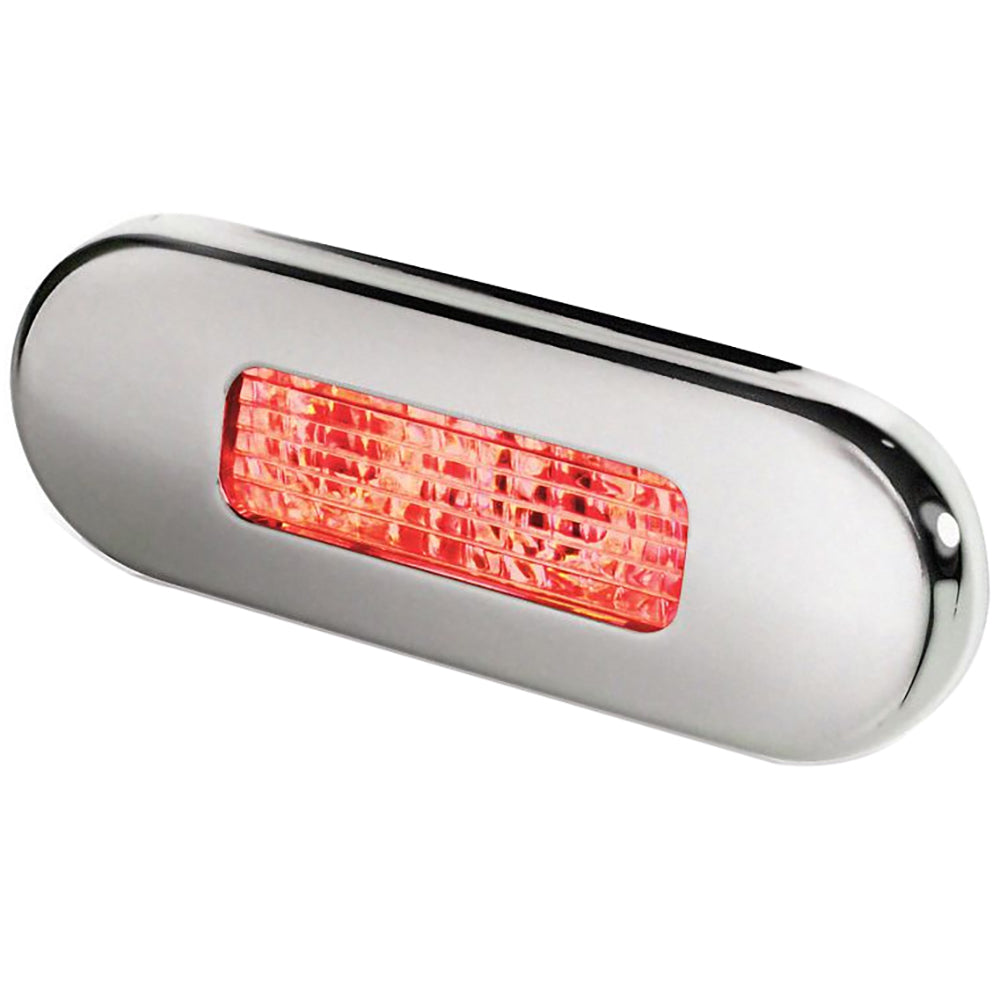

Hella Marine Surface Mount Oblong LED Courtesy Lamp - Red LED - Stainless Steel Bezel

Enhance your vessel's lighting with our Surface Mount Oblong LED Courtesy Lamp, featuring a vibrant red LED and a sleek stainless steel bezel. Designed specifically for marine environments, this durable and weather-resistant lamp provides reliable illumination for both interior and exterior applications, ensuring safety and visibility on your boat.

Key Features

• Versatile Mounting Options: Ideal as dedicated step lamps or for general courtesy lighting, offering consistent vertical light spread.
• Advanced Optics: Engineered to direct light downwards at a precise 30°, effectively illuminating deck and step tread surfaces without causing glare.
• Superior Durability: Completely sealed with an IP67 rating, these LED lamps are built to withstand harsh marine conditions, both wet and dry.
• High-Quality Materials: Features polished 316 stainless steel bezels for a premium look, along with black and white plastic end caps.
• Energy Efficient: Consumes only 0.5W of power, making it an eco-friendly lighting solution for your vessel.

Specifications

Feature	Details
Lens Material	UV and enhanced impact-resistant Grilamid
Rim Material	316 Stainless Steel
Cable	Pre-wired with 120mm marine cable
Operating Voltage	Multivolt 12 / 24V DC
Power Consumption	0.5W (< 0.04A@12V / < 0.02A@24V)
Degree of Protection	IP67 - Completely Sealed
Mounting	Stainless steel screws included
Weight	35g (including cable)
Approvals	CE Certified
Bulb Type	LED
Voltage - Input Range	12/24V
Housing	Stainless Steel
LED Color	Red
Dimming	No
Box Dimensions	2"H x 4"W x 6"L
Weight	0.2 lbs
UPC	9416325233985

Additional Information

Each lamp comes with polished 316 stainless steel bezels and includes black and white plastic end caps for a seamless installation. The pre-wired marine cable simplifies the setup process, ensuring a hassle-free experience.

Download the Product Brochure (PDF)
