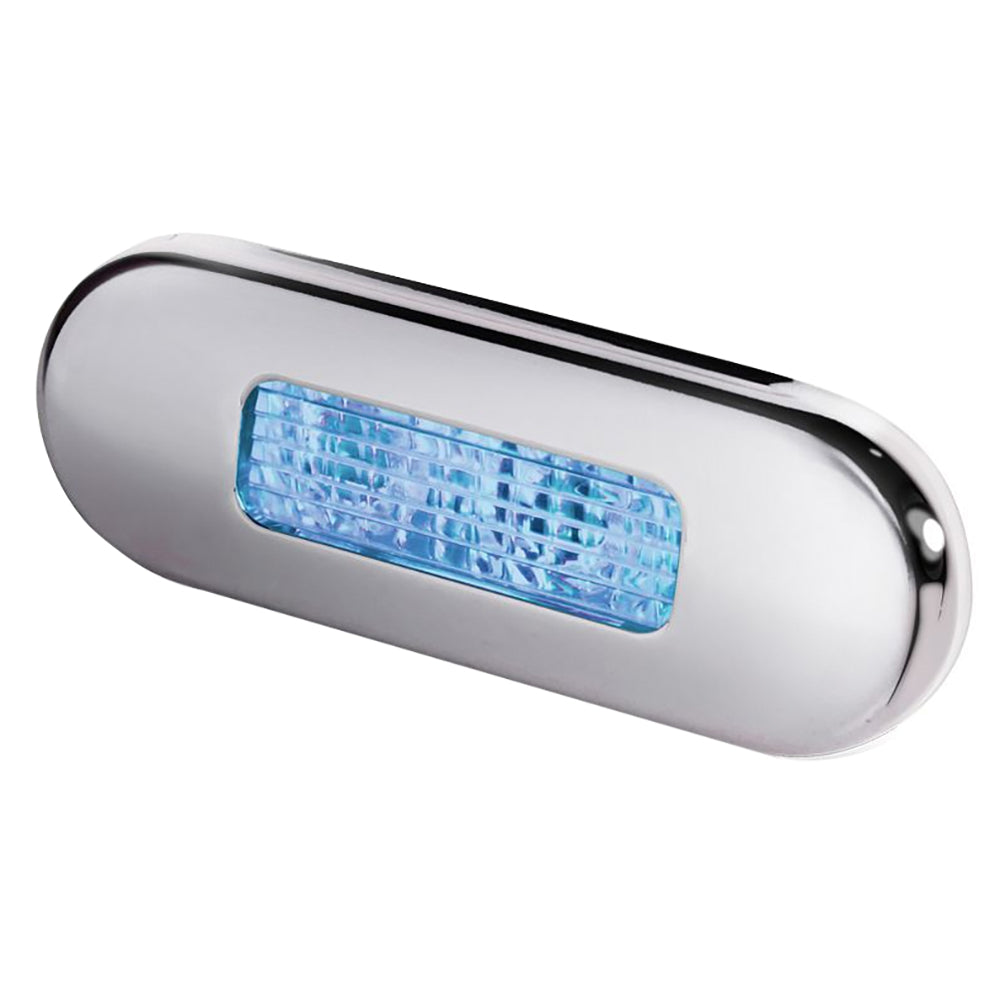

Hella Marine Surface Mount Oblong LED Courtesy Lamp - Blue LED - Stainless Steel Bezel

Enhance your vessel's lighting with the Surface Mount Oblong LED Courtesy Lamp, featuring a striking blue LED and a sleek stainless steel bezel. Designed for marine environments, this lamp delivers dependable illumination both inside and outside your boat, ensuring safety and style on every voyage.

Durable and Waterproof Design

Built to withstand the rigors of marine settings, this LED lamp boasts a completely sealed construction with an IP67 rating. Whether mounted on deck or within the cabin, it remains protected against water ingress and harsh weather conditions. The polished 316 stainless steel bezel not only offers resistance against corrosion but also adds a touch of elegance to your vessel's aesthetic.

Optimized Lighting Performance

The Oblong LED lamp is engineered with advanced optics that direct light downwards at a 30° angle. This focused illumination ensures safe visibility of deck and step tread surfaces without causing glare, protecting both you and your passengers from unwanted light exposure. Perfect as a step lamp or general courtesy light, it provides uniform light spread for versatile applications.

Easy Installation and Compatibility

Installation is a breeze with the pre-wired 120mm marine cable, compatible with both 12V and 24V DC systems. The included stainless steel screws facilitate quick and secure mounting on any surface. Whether integrating into your boat’s interior lighting scheme or outfitting external fixtures, this lamp adapts seamlessly to your electrical setup.

Technical Specifications

Feature	Specification
Lens Material	UV and enhanced impact-resistant Grilamid
Rim Material	316 Stainless Steel
Cable	Pre-wired with 120mm marine cable
Operating Voltage	Multivolt 12 / 24V DC
Power Consumption	0.5W (<0.04A @12V / <0.02A @24V)
Degree of Protection	IP67 - Completely Sealed
Mounting	Stainless steel screws included
Weight	35g (including cable) / 0.2 lbs
Approvals	CE
Bulb Type	LED
LED Color	Blue
Dimming	No
Box Dimensions	2" H x 5" W x 6" L
UPC	9416325233992

Certifications and Approvals

Compliant with CE standards, this LED lamp meets stringent safety and performance requirements, ensuring reliable operation in marine environments.

Additional Resources

Download the brochure (PDF)
