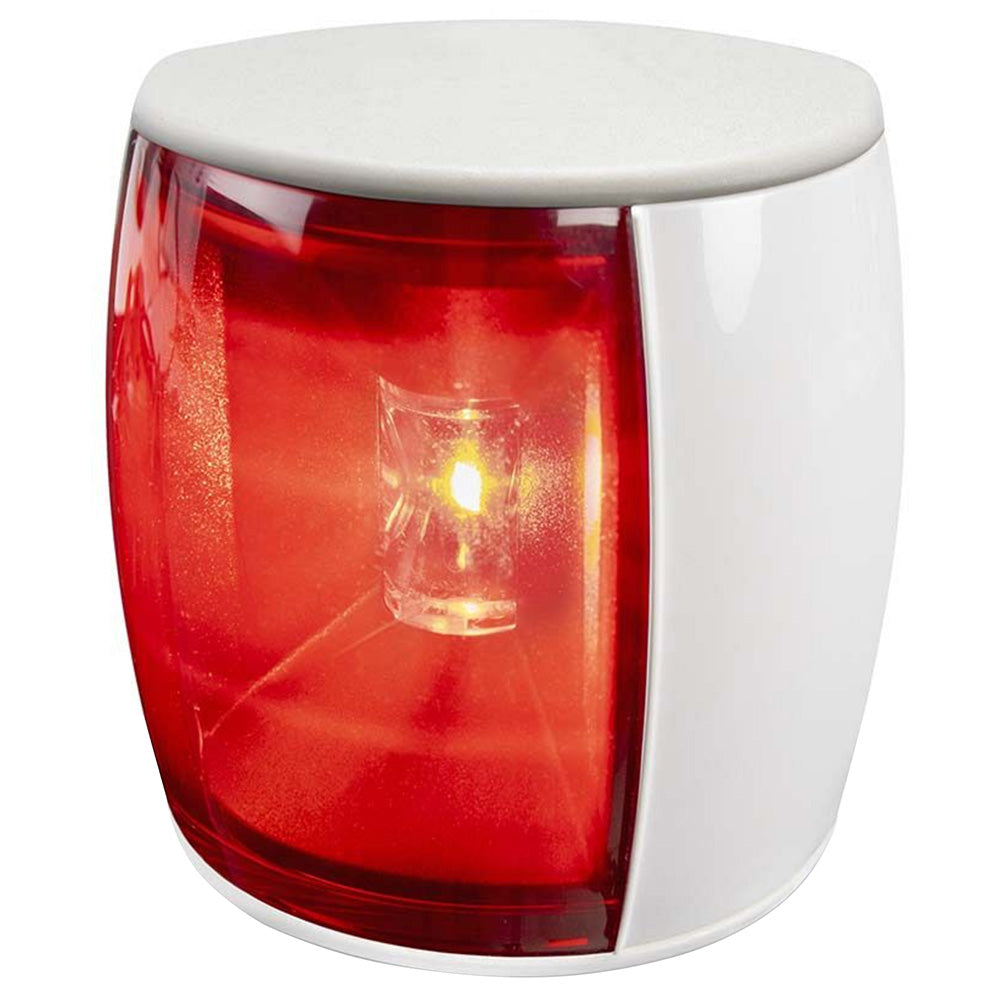

Hella Marine NaviLED PRO Port Navigation Lamp - White Shroud - Red Lens - 3NM

The NaviLED PRO Port Navigation Lamp is engineered to meet and exceed the stringent requirements of vessels operating beyond 50 meters. Trusted by commercial, military, and recreational mariners worldwide, this high-performance navigation lamp ensures reliable and efficient illumination for your marine vessel.

Energy Efficient Performance

Featuring an ultra-low current draw, the NaviLED PRO port lamp consumes less than 3.2W in total, optimizing your vessel's power usage without compromising on brightness or visibility.

Durable and Low Maintenance

Utilizing Hella marine LED technology, these lamps eliminate the need for traditional bulbs, resulting in no filaments to break. This design ensures that NaviLED PRO lamps are highly resistant to shock and vibration, providing long-lasting reliability and safety even in the most demanding marine environments.

Versatile Voltage Compatibility

Equipped with Multivolt™ technology, the lamp operates seamlessly across a wide voltage range of 9-33V DC. Advanced electronics within the lamp protect against severe voltage fluctuations and low battery conditions, ensuring consistent illumination under varying power scenarios.

Superior Sealing and Protection

Each NaviLED PRO lamp is fully sealed to IP67 standards, guaranteeing complete protection against water and dust ingress. The high-impact housings are designed to withstand waves and physical impacts, while the ultra-heavy-duty BSH versions incorporate Grilamid® lenses for enhanced durability in extreme conditions.

Easy Installation with Pre-Wired Cable

The lamp comes pre-wired with 2.5 meters of twin-core marine cable, facilitating a time-saving and hassle-free installation process. The high-quality cable assemblies are fully sealed to prevent any environmental exposure, ensuring a secure and reliable connection.

Technical Specifications

Feature	Description
Lamp Type	Port navigation
Lens Color	Red
Housing Color	White
Material	High impact resistant acrylic lens
Minimum Visible Distance	3 Nautical Miles (Yachts and Powerboats)
Cable	Pre-wired with 2.5M twin-core marine cable
Operating Voltage	Multivolt™ 9-33V DC
Voltage Protection	Spike protected to +500V, Reverse polarity protected to -700V
Power Consumption	Less than 3.2W combined
Degree of Protection	IP67 - Completely Sealed
Weight	250g (including cable)
Box Dimensions	4"H x 4"W x 6"L
Weight (Box)	1 lb
UPC	9416325253280
Approvals	IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
