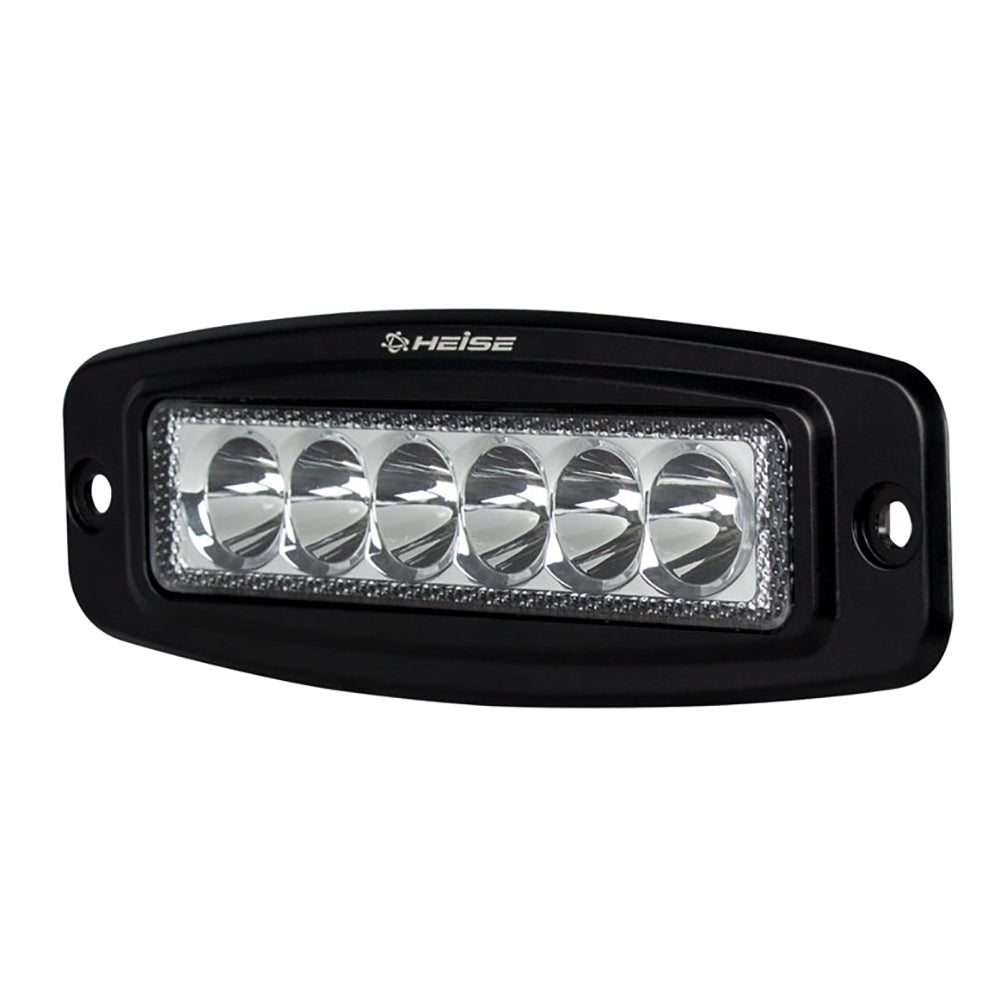

HEISE 6 LED Single Row Driving Light - Flush Mount

Enhance your vessel's navigation capabilities and aesthetic appeal with our premium 6 LED Single Row Driving Light. Designed specifically for marine and boating applications, this flush mount driving light delivers superior brightness and durability to ensure safe and stylish voyages.

Key Features

• High-Intensity Illumination: Equipped with 6 OSRAM LEDs, each rated at 3W, providing a total raw lumens of 1440 for clear visibility in all conditions.
• Optimized Beam Pattern: 25-degree spot beam pattern tailored for precise driving illumination on the water.
• Wide Voltage Compatibility: Operates efficiently within a wide input voltage range of 10-30V DC, suitable for various marine electrical systems.
• Energy Efficient: Consumes only 18W, ensuring minimal power draw while maintaining maximum performance.
• Bright White Light: 6000K color temperature delivers a crisp, daylight-like illumination for enhanced visibility.

Construction & Durability

• Robust Housing: Crafted from die-cast aluminum, the housing ensures long-lasting durability and resistance to the corrosive marine environment.
• Weather Resistant: Certified with an IP67 rating, offering complete protection against dust and water immersion up to 1 meter.
• Quality Materials: Features a PC lens and stainless steel mounting brackets, ensuring stability and longevity in harsh conditions.
• Integrated Protection: Electronics are epoxy encapsulated to safeguard against moisture and vibrations common in marine settings.
• Comprehensive Hardware: Includes stainless 316 hardware, a gasket for waterproof sealing, and a precise cut-out template for easy installation.

Performance Specifications

Specification	Details
Input Voltage	10-30V DC
Wattage	18W (6-3W OSRAM LEDs)
Raw Lumens	1440
Color Temperature	6000K
Beam Pattern	25° Spot
Operating Temperature	-40°C to +60°C
Current Consumption	0.9A at 13.8V
IP Rating	IP67
Protections	Reverse Polarity Protection
Beam Type	Driving
Voltage Input Range	12/24V
Length	7.37"
Housing Color	Black
Box Dimensions	3"H x 4"W x 9"L
Weight	1.05 lbs
UPC	086429312924

Easy Installation

• Universal Fit: Designed to fit a wide range of marine vessels with a flush mount configuration for a streamlined look.
• Included Accessories: Comes with stainless steel mounting brackets, gasket, and a cut-out template to simplify the installation process.
• Quick Setup: Intuitive design allows for straightforward mounting, minimizing downtime and getting you back on the water faster.
