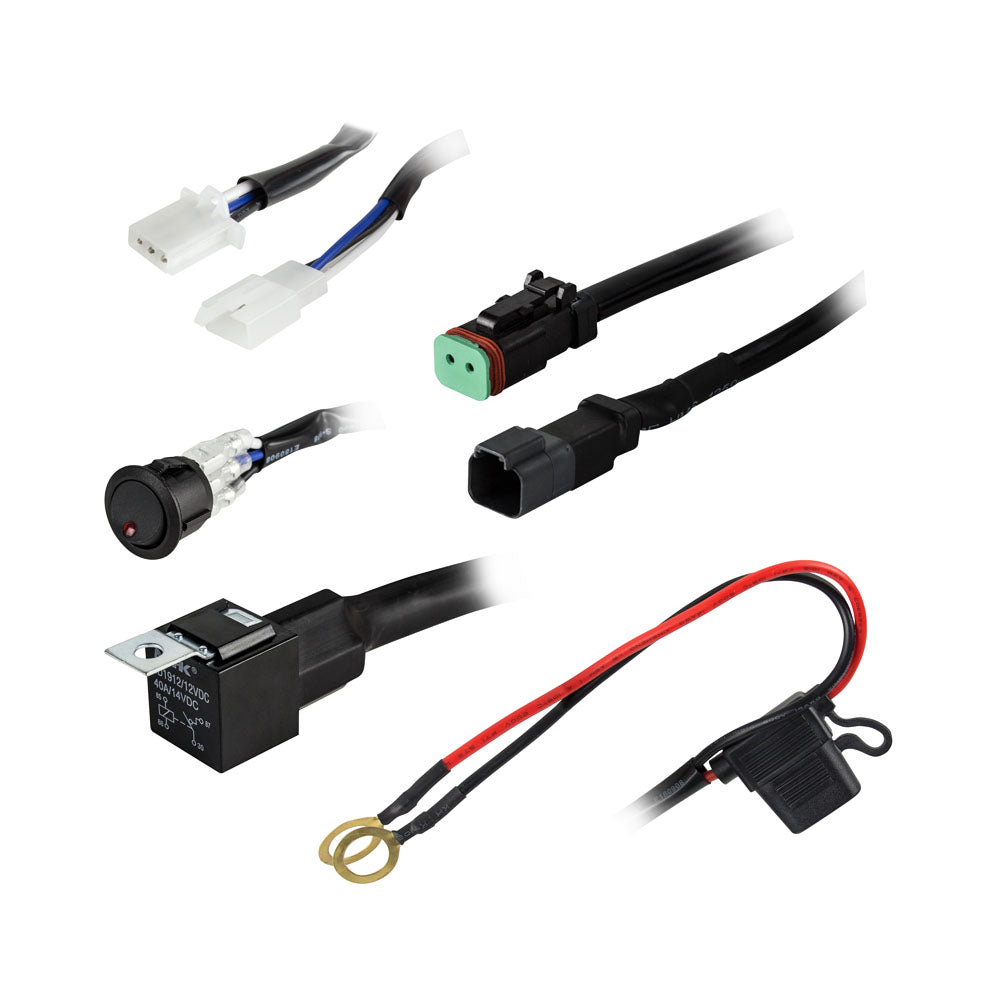

HEISE 1 Lamp DR Wiring Harness Switch Kit

Enhance your marine lighting setup with our 1 Lamp DR Wiring Harness & Switch Kit, specifically designed for reliable performance on boats and marine vessels. This comprehensive kit ensures seamless installation and operation of your single lamp, providing the durability and functionality needed in harsh marine environments.

Product Features

• Universal Wiring Harness & Switch Kit: Tailored for a single lamp with a DT connector, ensuring compatibility with various marine lighting systems.
• Plug and Play Design: Simplifies installation with a universal wiring harness and an easy-to-use on/off rocker switch.
• Robust Electrical Components:
• 12V DC Relay for reliable switching
• 30A Fuse to protect your electrical system
• Expandable Connectivity: Equipped with 2-pin DT connectors, allowing for the addition of a second lamp if needed.
• Waterproof Fuse Holder: Ensures longevity and safety in wet marine conditions.
• Comprehensive Set: Includes all necessary wiring harness and switch components for a complete installation.
• Easy Installation: Designed for quick and hassle-free setup, minimizing downtime on your vessel.
• Compatibility: Ideal for use with one Heise light bar up to 22 inches or smaller, as well as any cube lighting systems.

Technical Specifications

Component	Specification
Voltage	12V DC
Fuse Rating	30A
Connectors	2-pin DT for up to 2 lamps
Compatibility	Heise Light Bar (22” or smaller), Cube lighting systems
Installation Type	Plug and Play
Switch Type	On/Off Rocker Switch

Installation Guide

Installing the 1 Lamp DR Wiring Harness & Switch Kit is straightforward:

1. Disconnect your vessel’s battery before starting the installation.
2. Connect the universal wiring harness to your boat’s power source using the included connectors.
3. Attach the DT connector to your Heise light bar or compatible cube lighting system.
4. Mount the on/off rocker switch in a convenient location on your dashboard or console.
5. Secure the waterproof fuse holder in a dry area to protect the electrical system.
6. Reconnect the battery and test the lighting system to ensure proper functionality.

Why Choose Our Wiring Harness & Switch Kit?

Designed with the marine environment in mind, our wiring harness and switch kit offers durability, ease of installation, and reliable performance. Whether you're upgrading your boat's lighting or replacing a faulty system, this kit provides the essential components needed for a seamless and efficient setup.
