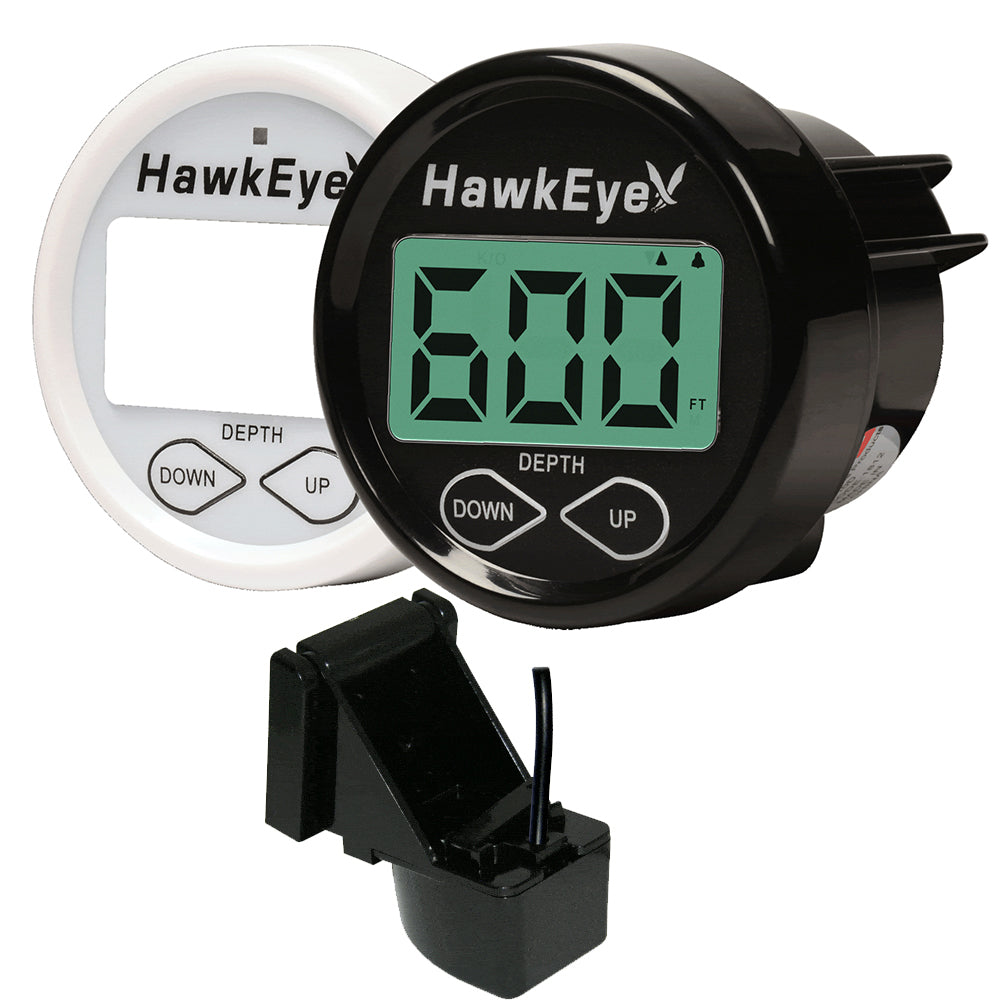

Hawkeye DepthTrax In-Dash Digital Depth Temp Gauge - Transom Mount

The DepthTrax In-Dash Digital Depth & Temperature Gauge - Transom Mount is engineered for boating enthusiasts seeking precise depth measurements and reliable temperature monitoring. This advanced gauge combines cutting-edge sonar technology with dual temperature displays, ensuring you have all the essential information at your fingertips for a safe and enjoyable maritime experience.

Superior Sonar Technology and Temperature Monitoring

The DepthTrax 2BX elevates your boating experience by integrating the advanced sonar capabilities of the DepthTrax 2B with dual temperature displays. Featuring an AIRMAR® ultra-sensitive, high-performance transom mount transducer, the 2BX allows you to effortlessly access both water and air temperature readings. A simple button press on the display provides instant temperature data from sensors located in the head unit and transducer, keeping you informed about your marine environment in real-time.

Exceptional Performance at an Affordable Price

Combining high-performance features with affordability, the DepthTrax 2BX offers unmatched value in the depth sounder market. Whether you're fishing, cruising, or exploring, this gauge delivers reliable performance without breaking the bank.

Key Features

• Algorithmic Precision: Reduces false readings and enhances depth accuracy with advanced programming.
• EasyTouch Programming: Provides one-touch access to user settings for seamless customization.
• User Programmable Keel Offset: Automatically adjusts depth readings based on your vessel’s draft requirements.
• Unit Flexibility: Select between Imperial or Metric measurements to suit your preference.
• Dual Depth Alarms: Set upper and lower depth alarms across the entire depth range for enhanced safety.
• 3-Stage Advanced Warning System™: Signals alarm conditions with audible alerts, LED, and LCD indicators, and includes one-touch alarm muting.
• Dual Temperature Display: View both air and water temperatures in °F or °C for comprehensive environmental awareness.
• Memory Retention: Automatically retains all user settings for convenience and consistency.
• Customizable Face System: Includes white and black faceplates and trim rings to match your boat’s interior.
• Glare-Free Display: Polarized LCD icon display with a storage sun cover ensures clear visibility in bright conditions.
• SoftGlow™ Backlit Display: Low-intensity, low-temperature lighting prevents eye strain and condensation, providing excellent nighttime viewing.

Technical Specifications

Specification	Details
Gauge Dimensions	2" Diameter x 1.75" Depth (51 x 45mm)
Screen Dimensions	1.65" Height x 0.87" Width (42 x 22mm)
Gauge Cut-out Size	2"
Operating Temperature	0 to 160° F (-18 to 71°C)
Depth Range	2.5' to 600' (0.7 to 180m)
Transducer Type	Transom Mount
Transducer Frequency	200kHz
Transducer Beam Angle	14°
Transducer Cable Length	30' (9m)
Power Requirement	12 - 14 VDC

What’s Included

• DepthTrax 2BX Gauge
• Bezel/Faceplate - Available in Black and White
• Display Cover
• Mounting Hardware
• Transducer - Transom Mount with 30' Cable
• Instruction Manual

*Sold individually

Additional Specifications

Specification	Details
Box Set	No
Gauge Size	2"
Gauge Type	Depth Sounder
Voltage - Input Range (Volts)	12 - 14
Box Dimensions	4"H x 7"W x 7"L
Weight	2.4 lbs
UPC	818800103919

Download the Owner's Manual (PDF)
