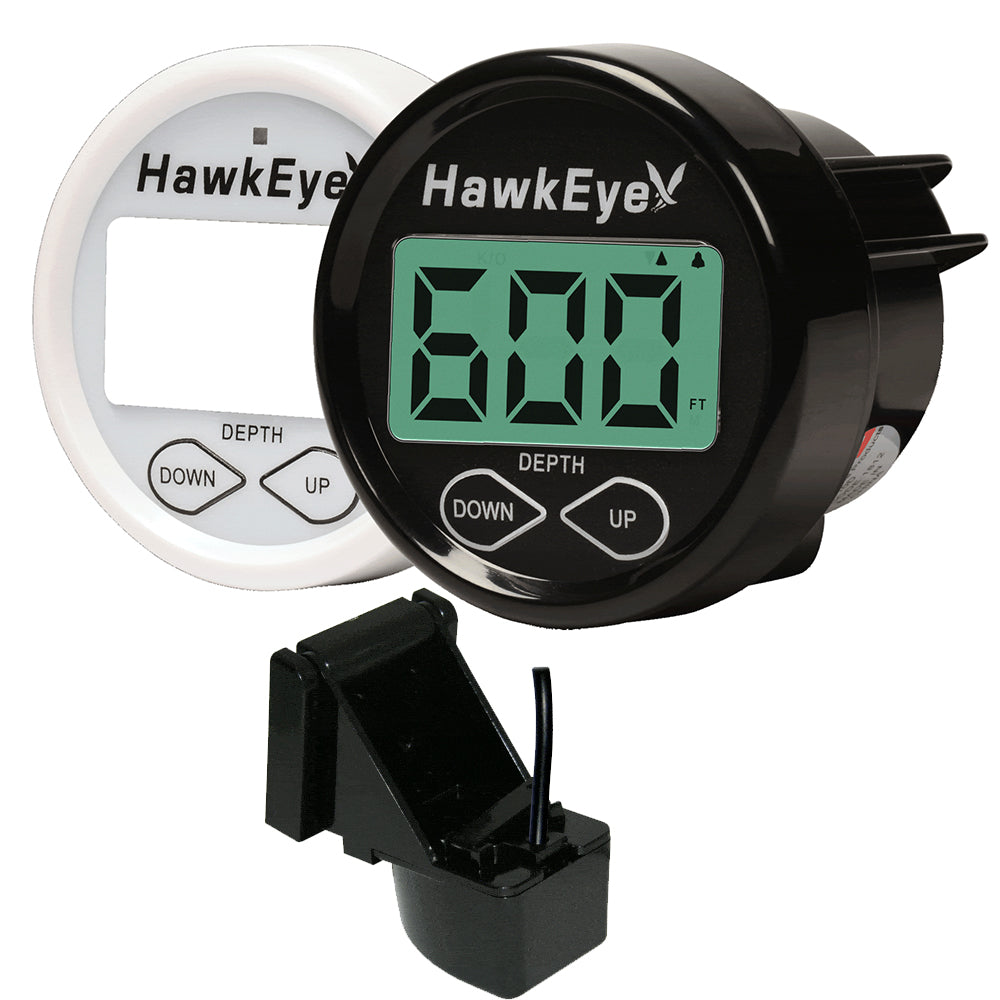

HawkEye DepthTrax In-Dash Digital Depth Gauge - Transom Mount

The DepthTrax 2B In-Dash Digital Depth Gauge is the ultimate tool for marine enthusiasts seeking precision and performance. Equipped with advanced sonar technology, depth alarms, and keel offset capabilities, this depth finder is engineered to deliver reliable readings even in the most demanding conditions. Whether you're navigating shallow waters or exploring depths up to 600 feet, the DepthTrax 2B ensures you stay informed and in control.

Key Features

• Advanced Sonar Technology: Utilizes updated SONAR algorithms to reach depths of up to 600 feet, providing accurate and reliable depth measurements.
• High-Speed Performance: Tuned for rapid response, ensuring real-time depth tracking during high-speed maneuvers.
• Precision Programming: Algorithmic programming minimizes false readings, delivering unmatched precision on every hunt.
• EasyTouch Programming: Simplifies user customization with one-touch access to settings, making adjustments effortless.
• Adjustable Keel Offset: User-programmable keel offset automatically adjusts depth readings to account for your vessel’s draft.
• Unit Flexibility: Choose between Imperial or Metric readouts to suit your preference.
• Dual Depth Alarms: Set upper and lower depth alarms across the full depth range to stay alerted to critical depth changes.
• Advanced Warning System™: Features a 3-stage alert system with audible alarms, LED, and LCD indicators, along with one-touch muting for convenience.
• Temperature Display: Monitors both air and water temperatures in °F or °C for comprehensive environmental awareness.
• Memory Retention: Automatically saves all user settings, ensuring consistency even after power interruptions.
• Customizable Appearance: Removable face system includes white and black faceplates and trim rings to match your boat’s interior.
• Glare-Free Display: Polarized LCD icons with a storage sun cover reduce glare for clear visibility under bright sunlight.
• SoftGlow™ Backlighting: Low-intensity, low-temperature backlit display and keys prevent eye strain and condensation, perfect for nighttime use.

Technical Specifications

Specification	Details
Gauge Dimensions	2" Diameter x 1.75" Depth (51 x 45mm)
Screen Dimensions	1.65" Height x 0.87" Width (42 x 22mm)
Gauge Cut-out Size	2"
Operating Temperature	0 to 160° F (-18 to 71°C)
Depth Range	2.5' to 600' (0.7 to 180 M)
Transducer Type	Transom Mount
Transducer Frequency	200kHz
Transducer Beam Angle	14°
Transducer Cable Length	30' (9 M)
Power Requirement	12 - 14 VDC

What’s Included

• DepthTrax 2B Gauge
• Bezel/Faceplate – Black and White
• Display Cover
• Mounting Hardware
• Transducer – Transom Mount with 30' Cable
• Instruction Manual

Sold as an individual unit.

Additional Specifications

Feature	Details
Box Set	No
Gauge Size	2"
Gauge Type	Depth Sounder
Voltage - Input Range	12 - 14 V
Box Dimensions	4"H x 7"W x 9"L
Weight	1.7 lbs
UPC	818800010118

Resources

Owner's Manual (PDF)
