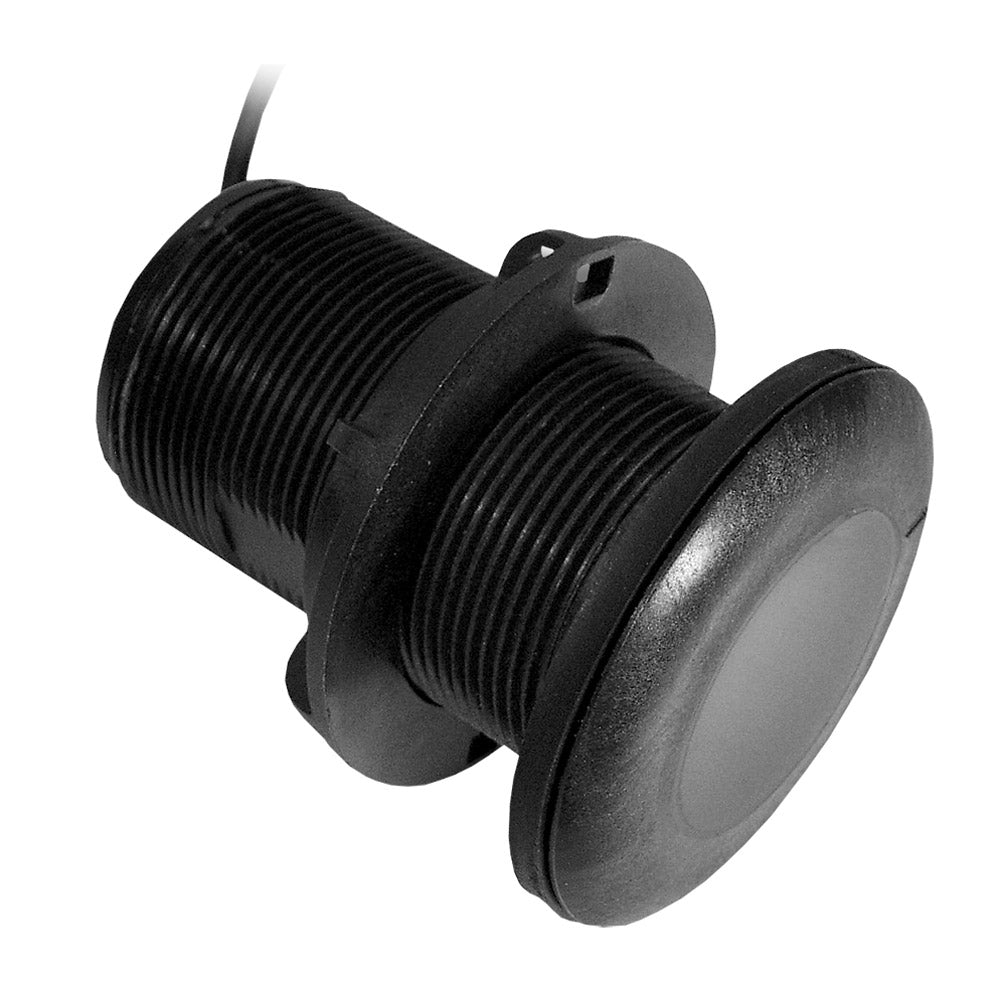

Garmin P19 Nylon 12 Degree Tilt Transducer - 8-Pin

The Tilted Element™ Thru-Hull transducer is engineered for marine enthusiasts seeking superior performance with minimal drag. Designed with precision, this transducer offers deep echosounding capabilities, ensuring accurate depth readings and enhanced navigation for your vessel.

Why Choose Tilted Element™ Thru-Hull?

Optimized for low-profile installations, the Tilted Element™ Thru-Hull minimizes hydrodynamic drag, allowing your boat to glide smoothly through the water. The innovative tilted ceramic element compensates for hull deadrise, delivering clear and reliable echo returns up to 206 meters (700 feet).

Features

• Depth and Temperature Monitoring: Choose between depth-only or depth and temperature configurations to suit your needs.
• Fixed Tilt Options: Available in fixed 12° tilted versions, compatible with hull deadrise angles ranging from 8° to 15°.
• Low-Profile Design: Only 5mm (2/10") of the housing protrudes above the hull, significantly reducing drag.
• Right Angle Cable Exit: Ensures low headroom and protects the transducer cable from damage when stepped on.
• Versatile Installation: Includes a rubber washer for secure mounting on irregular hull surfaces.
• Compliance: Housings are ABYC H-27 compliant, meeting industry standards for marine equipment.
• Durable Plastic Housing: Resistant to harsh marine environments, ensuring longevity and reliability.
• Boat Size Compatibility: Suitable for vessels up to 9 meters (30 feet) in length.
• Optional Temperature Sensor: Enhance your monitoring capabilities with the available temperature sensor.

Applications

• Powerboats
• Sailboats
• Cruising Yachts
• Fishing Vessels

Specifications

Feature	Details
Speed Included	No
Pins	8
Mounting Style	Thru-Hull
Imaging	Standard
Chirp Technology	No
Cable Length	30 feet
Temperature Monitoring	Yes
Box Dimensions	4"H x 6"W x 8"L
Weight	2.1 lbs
UPC	801769000764

Quick Guide (PDF) | Owner's Manual (PDF) | Brochure (PDF)
