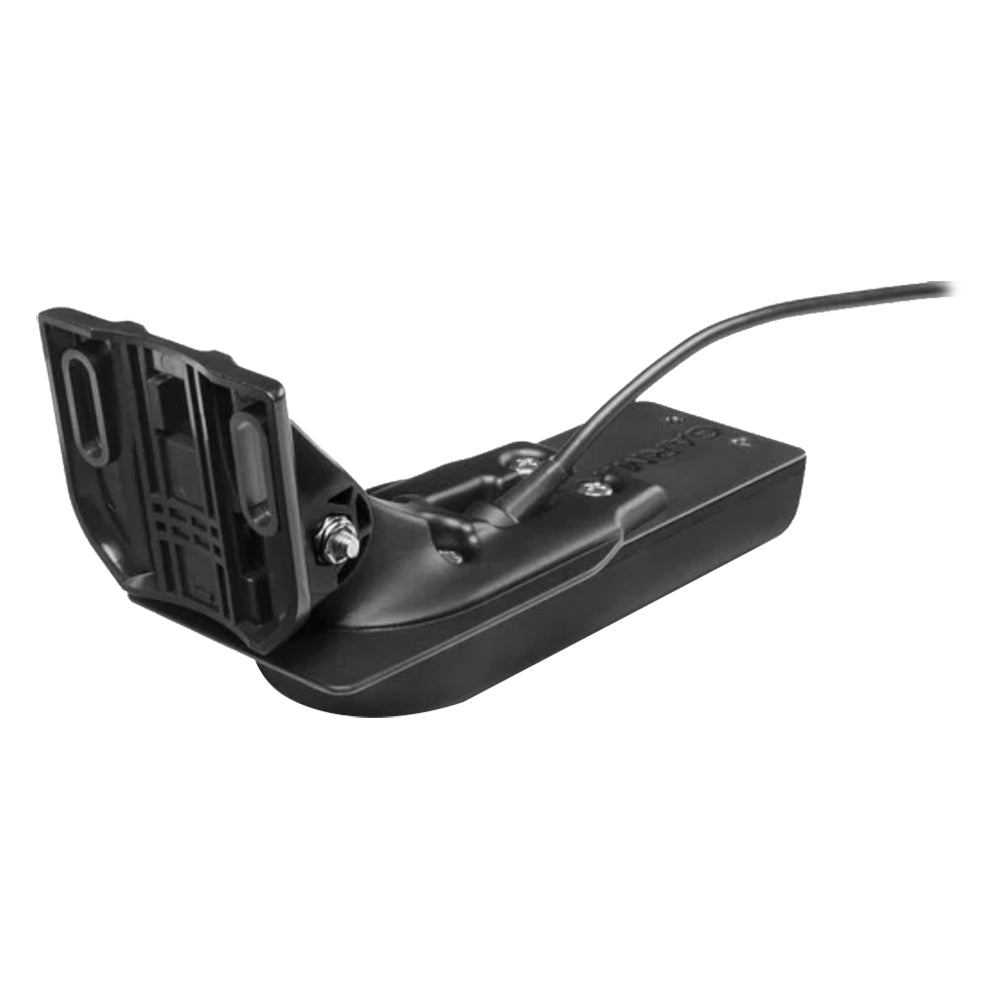

Garmin GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVu - 455/800kHz, 500W, 8-Pin

The GT22HW-TM Plastic Transducer is engineered for freshwater anglers seeking exceptional sonar performance on their transom or trolling motor. Designed to deliver both CHIRP traditional sonar and CHIRP DownVü scanning sonar, this transducer ensures clear and precise fish arches, superior target separation, and detailed structural imaging below your boat.

Product Overview

The GT22HW-TM transducer operates seamlessly with both transom mounts and trolling motors, making it a versatile choice for various fishing setups. Its compact design is optimized for mounting on trolling motors without compromising performance.

Key Features

• Dual Sonar Modes: Utilizes high wide band CHIRP traditional sonar (150-240 kHz) and CHIRP DownVü scanning sonar (455/800 kHz) for comprehensive underwater imaging.
• Power Ratings: Traditional sonar element rated at 250 W and DownVü element at 500 W, ensuring robust performance and reliability.
• 8-Pin Connector: Facilitates easy and secure installation with an 8-pin interface.
• Compact Design: Specifically designed for trolling motor mounts, providing flexibility without adding bulk.
• Durable Construction: Built to withstand the rigors of freshwater fishing environments.

Technical Specifications

Specification	Details
Frequency	CHIRP Traditional: 150-240 kHz CHIRP DownVü: 455/800 kHz
Power Rating	Traditional Sonar: 250 W DownVü: 500 W
Pins	8
Mounting Style	Transom or Trolling Motor
Cable Length	20 feet
Temperature Capability	Yes
Imaging Modes	Standard/Down
Box Dimensions	3"H x 7"W x 8"L
Weight	2 lbs
UPC	753759148584

Installation Guide

Mounting the GT22HW-TM transducer to your trolling motor is straightforward due to its compact design. Follow these steps for a secure installation:

1. Refer to the included installation manual for detailed instructions.
2. Ensure the mounting surface is clean and free from debris.
3. Attach the transducer securely to the trolling motor using the provided hardware.
4. Connect the 8-pin connector to your fish finder or sonar unit.
5. Double-check all connections to prevent any damage to your boat or the transducer.

Proper installation is crucial for optimal performance and to avoid any potential damage to your equipment or vessel.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Why Choose the GT22HW-TM Transducer?

For marine enthusiasts and serious anglers, the GT22HW-TM offers unparalleled sonar clarity and performance. Its dual sonar capabilities allow for versatile fishing strategies, whether you're scanning for fish or exploring underwater structures. The robust power ratings ensure consistent performance, while the easy installation makes it a favorite among freshwater fishermen.

Customer Reviews

Join the many satisfied anglers who have enhanced their fishing experience with the GT22HW-TM Transducer. Experience clear sonar readings, reliable performance, and the confidence that comes with using a top-tier marine transducer.
