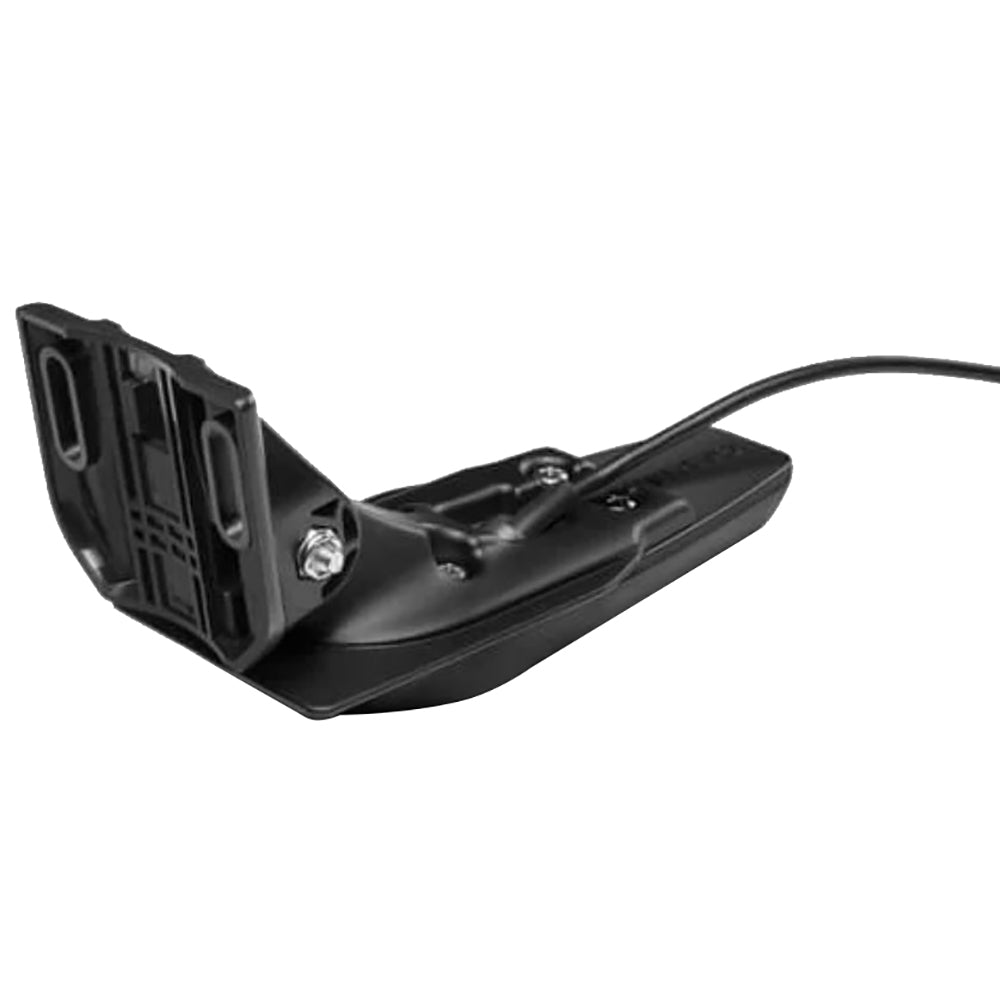

Garmin GT20-TM Transom Mount DownVu 500W (CHIRP 455/800kHz) Traditional 500W (77/200 Hz) Transducer w/Temp - 4-Pin

Enhance your boating experience with the Transom Mount DownVü 500W 4-Pin Transducer, designed to deliver crystal-clear sonar images of underwater objects, structures, and fish beneath your vessel. This versatile transducer integrates both traditional and DownVü technologies, ensuring comprehensive and detailed sonar performance for all your marine adventures.

Key Features

• Dual Frequency Operation: Combines Traditional 77/200 kHz and CHIRP 455/800 kHz DownVü frequencies for enhanced imaging capabilities.
• Power Rating: Robust 500 W power ensures reliable performance in various marine conditions.
• Depth Capability: Supports depths up to 1,900 ft (Traditional) and 750 ft (DownVü), making it suitable for both shallow and deep-water fishing.
• Temperature Monitoring: Built-in fast response temperature sensor provides real-time water temperature data.
• Adjustable Transom Angle: Features a 0 to 70-degree transom angle for optimal installation flexibility.
• Comprehensive Package: Includes transom and trolling motor mounts, along with detailed installation instructions to ensure a hassle-free setup.

Specifications

Attribute	Details
Pins	4
Mounting Style	Transom
Imaging Modes	Standard / DownVü
CHIRP Technology	Non-Traditional
Cable Length	20 ft
Temperature Sensor	Included
Speed Feature	Not Included
Box Dimensions	4"H x 7"W x 9"L
Weight	1.4 lbs
UPC	753759152758

Installation Instructions

The Transom Mount DownVü 500W comes with all necessary mounts and detailed installation guides. To ensure optimal performance and to prevent any damage to your boat, please follow the provided instructions carefully during the installation process.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
