Garmin Bronze Thru-hull Wide Beam Transducer w/Depth & Temp - 20 Degree tilt, 8-pin - Airmar B175HW

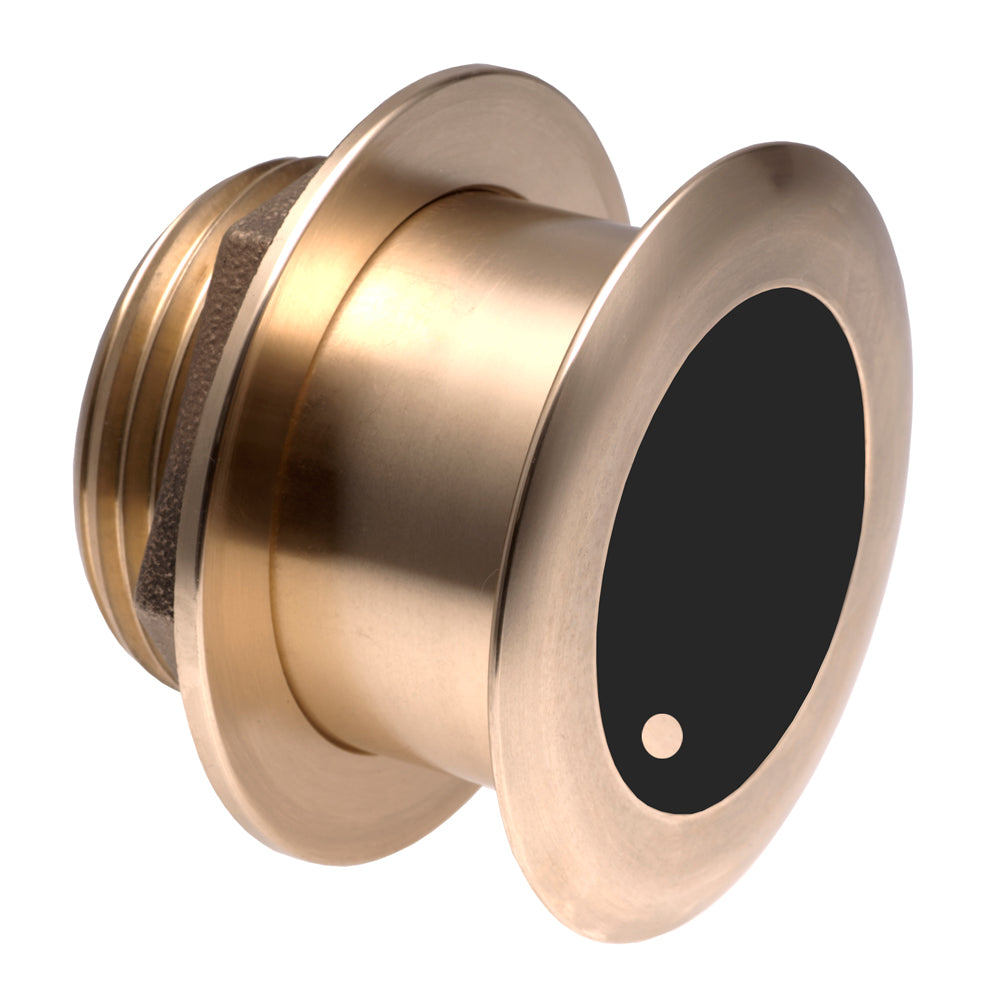

The Airmar B175HW Bronze Thru-hull Wide Beam Transducer is engineered for superior performance on fiberglass and wood hulls. Its flush-mounted bronze housing minimizes hull penetration, enhancing both durability and aesthetics while delivering precise depth and temperature measurements essential for marine and boating enthusiasts.

Outstanding Features

• Flush-Mounted Design: The bronze housing protrudes less than 1/4-inch outside the hull, allowing the transducer to safely rest on trailer rollers or bunks without sustaining damage.
• 20° Tilt Element: Accommodates a wide range of hull deadrises, eliminating the need for additional fairing blocks and ensuring accurate sonar readings in various water conditions.
• Versatile Frequency Options: Available in low, medium, high, and high wide versions, providing maximum flexibility to match different sonar frequency requirements for optimal fish finding.
• Durable Construction: Crafted from high-quality bronze, this transducer is built to withstand harsh marine environments, ensuring long-lasting reliability.
• Integrated Temperature Sensor: Monitor water temperature in real-time alongside depth measurements, enhancing your fishing and navigation experience.
• Easy Installation: Comes with comprehensive installation instructions, making it straightforward to set up without specialized tools or expertise.

Technical Specifications

Specification	Details
Model	Airmar B175HW
Cable Length	39 feet
Operating Frequency	150-250 kHz
Beamwidth	25°
Compatible Deadrise	16° to 24°
Mounting Style	Thru-Hull
Connector Pins	8
Maximum Depth	600 feet
Temperature Monitoring	Included
Box Dimensions	8" H x 10" W x 12" L
Weight	10.7 lbs
UPC	753759123550

Installation Guidelines

The Airmar B175HW transducer kit includes detailed installation instructions to ensure a seamless setup on your vessel. It is crucial to follow each step carefully to prevent any damage to your boat and to guarantee the transducer operates at peak performance. Proper installation not only enhances the longevity of the transducer but also ensures accurate depth and temperature readings.
