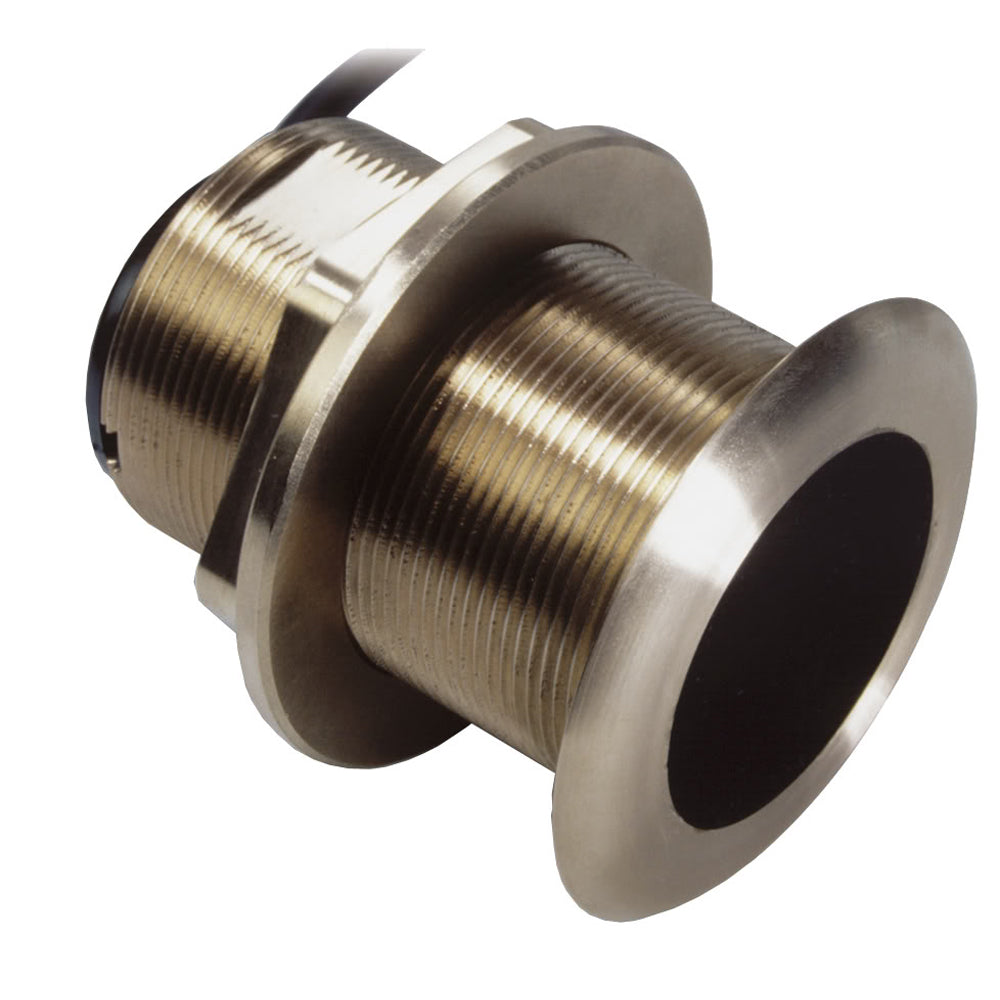

Garmin B60 600W Tilted Element 12 Degree - 8-Pin

The B60 600W Tilted Element 12° - 8-Pin Transducer is engineered for marine enthusiasts seeking dependable sonar performance on fiberglass and wood hulls. With its robust 600-watt power output and versatile design, this transducer delivers clear and accurate underwater imaging, making it an ideal choice for both recreational and professional boating applications.

Key Features

• Power Output: 600 Watts for enhanced sonar performance
• Tilt Angle: 12° tilted bronze element for optimal signal transmission
• Deadrise Compatibility: Suitable for angles between 8° to 15° without needing a fairing
• Operating Depth: Effective from 800 to 1,200 feet
• Frequency Range: 50 to 200 kHz for versatile imaging capabilities
• Beamwidth: Adjustable from 45° to 12° for tailored underwater views
• Mounting Style: Thru-Hull installation for secure and stable placement
• Connector: 8-Pin for seamless integration with compatible sounders
• Imaging: Standard for reliable underwater picture quality
• Chirp Technology: Not included
• Cable Length: 39 feet to reach your sounder effortlessly
• Package Dimensions: 5"H x 6"W x 10"L
• Weight: 5 lbs for easy handling and installation
• UPC: 753759971830

Specifications

Attribute	Details
Temperature Sensor	Included
Speed Included	No
Pin Configuration	8-Pin
Mounting Style	Thru-Hull
Imaging	Standard
Chirp Technology	No
Cable Length	39 feet
Box Dimensions	5"H x 6"W x 10"L
Weight	5 lbs
UPC	753759971830

Installation Instructions

The transducer kit includes detailed installation instructions. It is essential to follow these guidelines carefully to ensure proper setup and to prevent any potential damage to your vessel or the transducer unit.

Compatibility Notes

• Hull Material: Specifically designed for fiberglass and wood hulls. Do not use on metal hulls.
• Sounder Compatibility: When pairing with a 6-Pin Garmin sounder, an adapter cable is required for seamless connectivity.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
