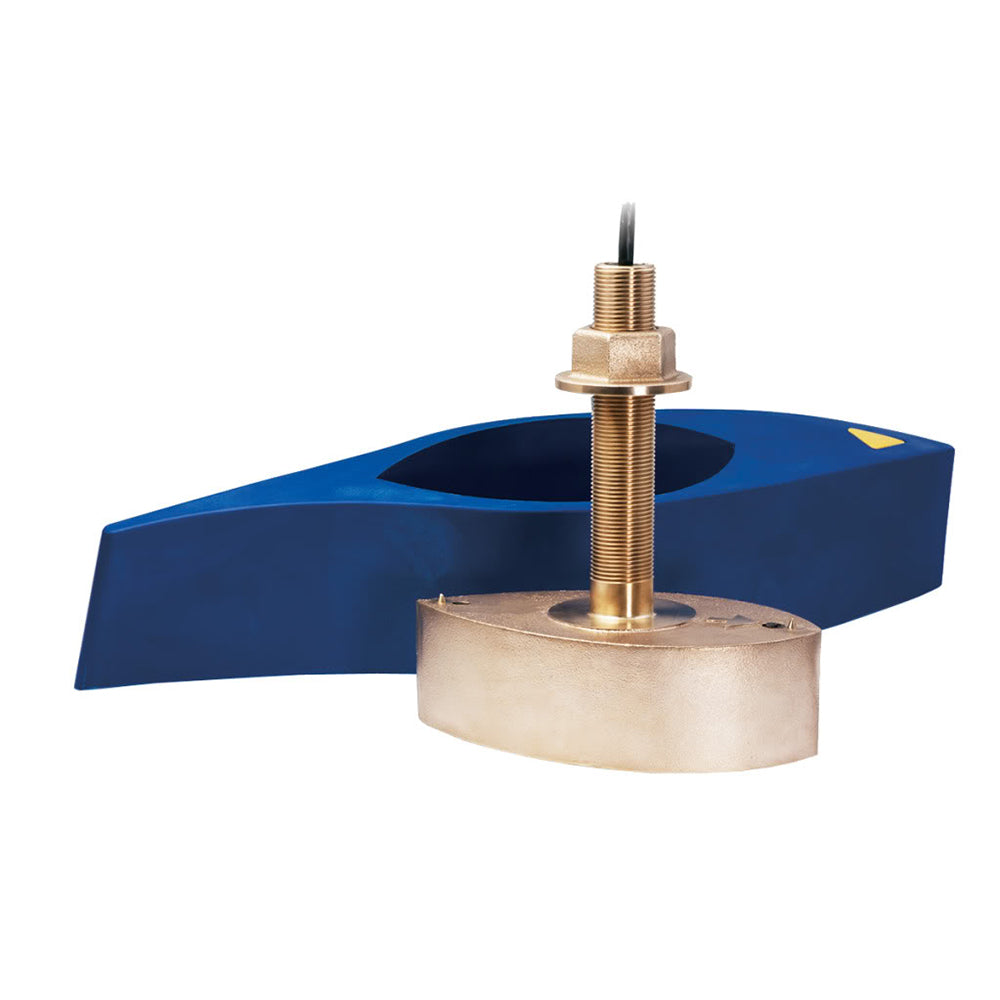

Garmin B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Enhance your boating and fishing adventures with the B275LH-W Bronze Thru-Hull Transducer by Airmar. This high-performance 12-pin transducer delivers exceptional sonar coverage and superior resolution, ensuring you have the most accurate and detailed underwater views possible.

Dual Frequency Excellence

The B275LH-W is equipped with both low and high frequency bands, providing versatile performance for various fishing conditions. The low frequency band operates between 42 kHz and 65 kHz, reaching depths up to 3,000 feet (914 meters), making it ideal for deep-water exploration. Meanwhile, the high frequency band ranges from 150 kHz to 250 kHz, offering detailed imaging and superior resolution down to 500 feet (152 meters).

Wide Beam Coverage for Maximum Detection

Featuring a fixed 25° beamwidth on the high frequency band, this transducer ensures a broad coverage area under your boat. The wide beamwidth delivers twice the coverage compared to standard narrow beam transducers, allowing you to detect fish in the upper water column more effectively and providing clear, extensive fish arches on your display.

High-Performance Fairing for Speed

The included high-performance fairing enhances broadband performance, even when traveling at speeds exceeding 30 knots (34 MPH). This fairing ensures that the transducer maintains optimal performance and accurate readings, providing reliable sonar data regardless of your vessel's speed.

Durable Construction for Marine Environments

Constructed with a robust bronze housing, the B275LH-W is built to withstand the harsh marine environment. Its durable design ensures longevity and consistent performance, making it a reliable choice for both inshore and pelagic fishing applications.

Key Features

• Depth and fast-response water-temperature sensor for real-time data
• 1 kW power output for exceptional deep water performance
• Low Frequency: 42 kHz to 65 kHz with a maximum depth of 3,000' (914 m)
• High Frequency: 150 kHz to 250 kHz with a maximum depth of 500' (152 m)
• 25° constant beamwidth for consistent wide coverage
• Total bandwidth of 123 kHz covering popular fishing frequencies of 50 and 200 kHz
• Superior shallow water performance and fish target separation
• Exclusive Xducer ID® technology for secure and reliable connections
• Bronze transducer housing with high-performance fairing
• Recommended for boats 25' (8 m) and larger with fiberglass or wood hulls

Specifications

Mounting Style	Thru-Hull
Imaging	Standard
Chirp	Low/High Wide
Cable Length	12 meters
Temperature Sensor	Yes
Speed Included	No
Pins	12
Box Dimensions	7"H x 19"W x 26"L
Weight	24.15 lbs
UPC	753759123574

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit P65Warnings.ca.gov.

Download Brochure (PDF)
