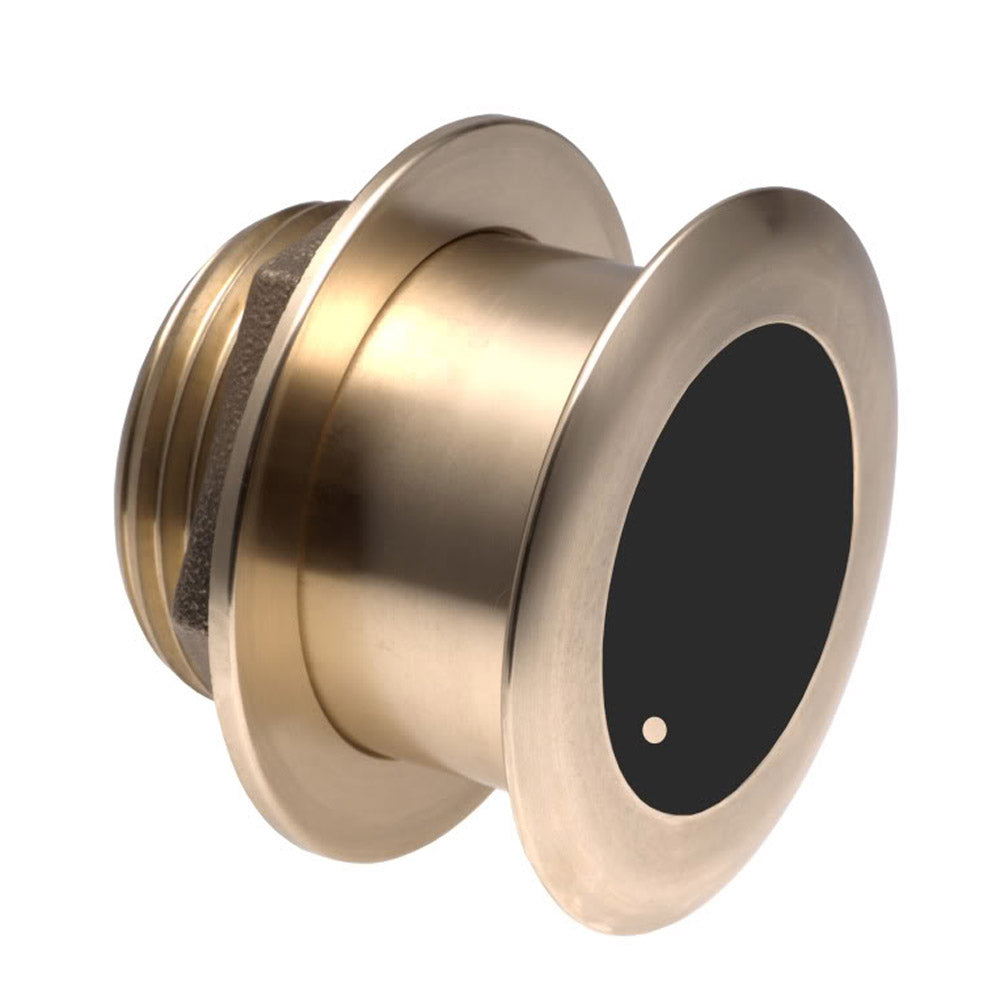

Garmin B175L Bronze 20 Degree Thru-Hull Transducer - 1kW, 8-Pin

The Airmar B175L sonar transducer is engineered for optimal performance on various hull types, including fiberglass and wood. Its flush-mounted bronze housing minimizes hull penetration, ensuring durability and ease of mounting on trailers or bunks without damage. With a tilt mechanism that accommodates hull deadrises from 16° to 24°, the B175L offers versatile installation options without the need for additional fairing blocks. Available in low, medium, and high frequency versions, this transducer delivers exceptional flexibility to meet diverse fishing and navigation needs.

Key Features

• Minimal Hull Penetration: The flush-mounted bronze housing protrudes less than 1/4" outside the hull, protecting your boat’s integrity.
• Adjustable Tilt: The tilted element inside the transducer seamlessly adapts to hull deadrises from 16° to 24°, eliminating the need for fairing blocks.
• Frequency Options: Choose from low, medium, and high frequency versions to match your specific sonar requirements.
• Robust Construction: Designed to withstand the harsh marine environment, ensuring long-lasting performance.
• Easy Mounting: Compatible with trailer rollers and bunks, making installation straightforward and damage-free.

Technical Specifications

Specification	Details
Model	Airmar B175L
Power	1kW
Max Depth	3,000'
Supported Deadrise/Transom Angles	16-24° Deadrise
Temperature Sensor	Yes
Speed Sensor Included	No
Mounting Style	Thru-Hull
Imaging	Standard
Chirp	Low
Cable Length	39' (Feet)
Pins	8
Box Dimensions	8"H x 10"W x 12"L
Weight	12 lbs
UPC	753759995737

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
