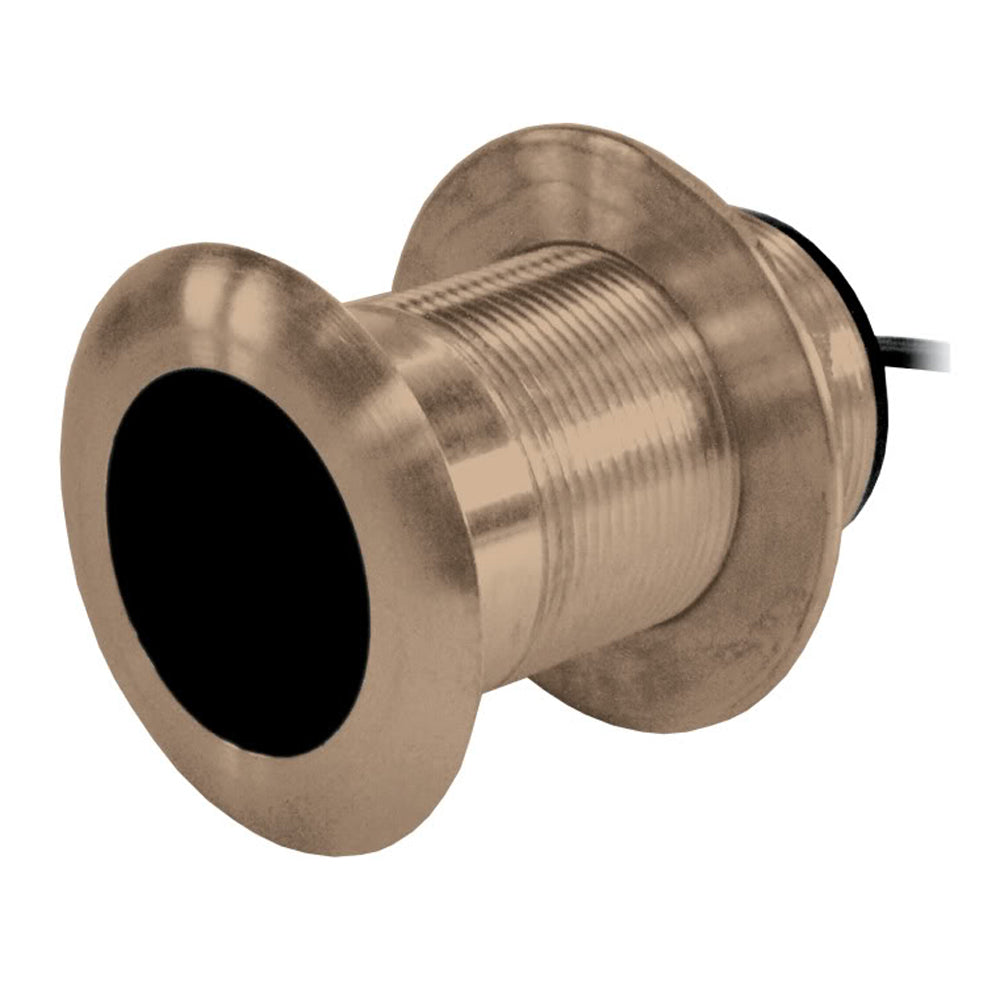

Garmin B117 Bronze Thru-Hull Depth/Temp - 8-Pin

The B117 Bronze Thru-Hull Depth/Temp Transducer is engineered for optimal performance on fiberglass and wood hulls, delivering reliable depth and temperature readings even at high speeds. Its durable bronze construction ensures longevity and resistance to harsh marine environments, making it an excellent choice for serious boaters and marine enthusiasts.

Key Features

• Thru-Hull Mount: Secure and stable installation for accurate readings.
• 8-Pin Configuration: Ensures compatibility with a wide range of marine electronics.
• Wide Operating Depth: Measures depths from 800 to 1,200 feet, suitable for various marine activities.
• Adjustable Operating Frequency: Ranges from 50 to 200 kHz for versatile performance.
• Narrow Stem Design: Minimizes drag and improves hydrodynamic efficiency at high speeds.
• Beamwidth Range: 45 to 12 degrees, providing precise sonar coverage.
• Deadrise Flexibility: Accommodates 0 to 7-degree hull angles for seamless integration.
• Included Installation Instructions: Step-by-step guide to ensure proper setup and prevent damage to your vessel.

Technical Specifications

Specification	Details
Temperature Sensor	Yes
Speed Included	No
Mounting Style	Thru-Hull
Imaging	Standard
Chirp Technology	No
Cable Length	39 feet
Pins	8
Box Dimensions	4"H x 8"W x 10"L
Weight	3.85 lbs
UPC	753759971762

Installation Instructions

The B117 transducer kit includes comprehensive installation instructions to guide you through the setup process. It is crucial to follow these instructions meticulously to ensure correct installation and to prevent any potential damage to your boat. If you are using a 6-pin Garmin sounder, a transducer adapter cable is required for compatibility.

Compatibility

Designed specifically for fiberglass and wood hulls, the B117 transducer is not recommended for use on metal hulls. Its 8-pin configuration ensures broad compatibility with various marine electronics, providing flexibility for different marine setups.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
