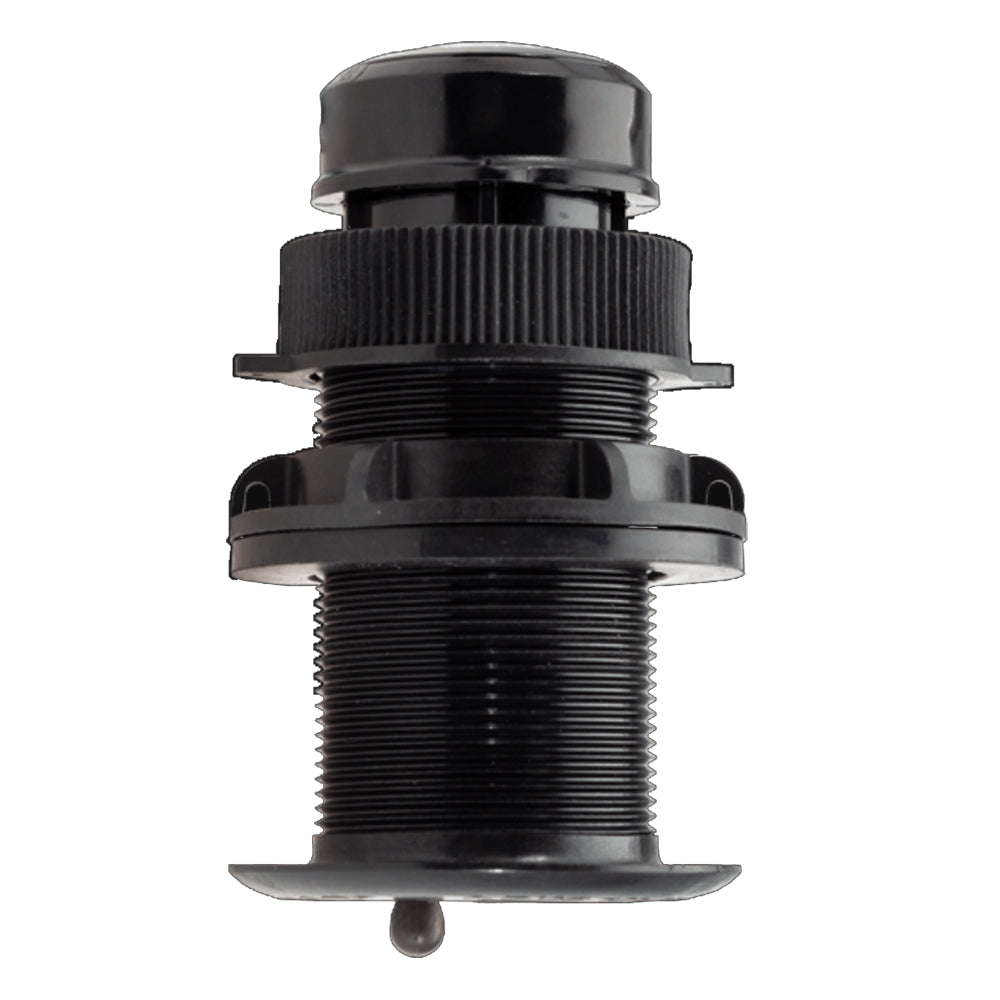

Garmin Airmar DST 810 Smart Transducer - 0 Degree

Airmar's DST 810 Smart Transducer is a cutting-edge, 0° degree plastic thru-hull device tailored for marine and boating enthusiasts. This versatile transducer delivers accurate depth, speed, and temperature readings while providing advanced attitude sensing for precise heel, trim, and pitch/roll data. Capable of measuring depths up to 300 feet and offering a swift 5 Hz water speed signal output, the DST 810 ensures seamless and reliable visualization on compatible chartplotters and marine displays.

Advanced Features

The DST 810 integrates multiple sensor functionalities into a single, efficient unit. It not only measures depth, speed, and temperature but also captures essential attitude information such as heel, trim, and pitch/roll. Operating at a 235 kHz frequency, this transducer minimizes interference with other echosounder devices onboard, ensuring consistent and reliable performance in various marine environments.

Wireless Connectivity

Equipped with Bluetooth® connectivity, the DST 810 allows for effortless management and calibration of sensor data through the Airmar Cast app interface. This wireless feature enhances user convenience, enabling easy adjustments and real-time monitoring to maintain optimal transducer performance.

Superior Beamwidth

Featuring a wide, fan-shaped beamwidth of 10° by 44°, the DST 810 excels in locating the seabed even when installed on vessels with steep deadrise hulls or heeling sailboats. This expansive beam ensures accurate bottom detection and reliable data acquisition under a variety of boating conditions.

Technical Specifications

Feature	Details
Frequency	235 kHz
Power	100 W
Beamwidth	10° x 44°
Maximum Depth	300 ft.
Measurements	Depth, Temperature, Speed
Number of Pins	NMEA 2000
Supported Deadrise/Transom Angles	0° to 22°
Temperature Monitoring	Yes
Speed Included	Yes
Mounting Style	Thru-Hull
Imaging	Standard
Chirp	No
Cable Length	20'
Box Dimensions	4" H x 8" W x 10" L
Weight	2.25 lbs
UPC	753759260989

Owner's Manual (PDF)
