Furuno Thru-Hull Side-Scan Transducer 12-Pin f/TZtouch3 12, 16 19 Models

The 225T-SS904 Thru-Hull Side-Scan Transducer 12-Pin is engineered to provide superior sonar performance for your NavNet TZtouch3 series, enhancing your marine navigation and underwater exploration capabilities.

Product Overview

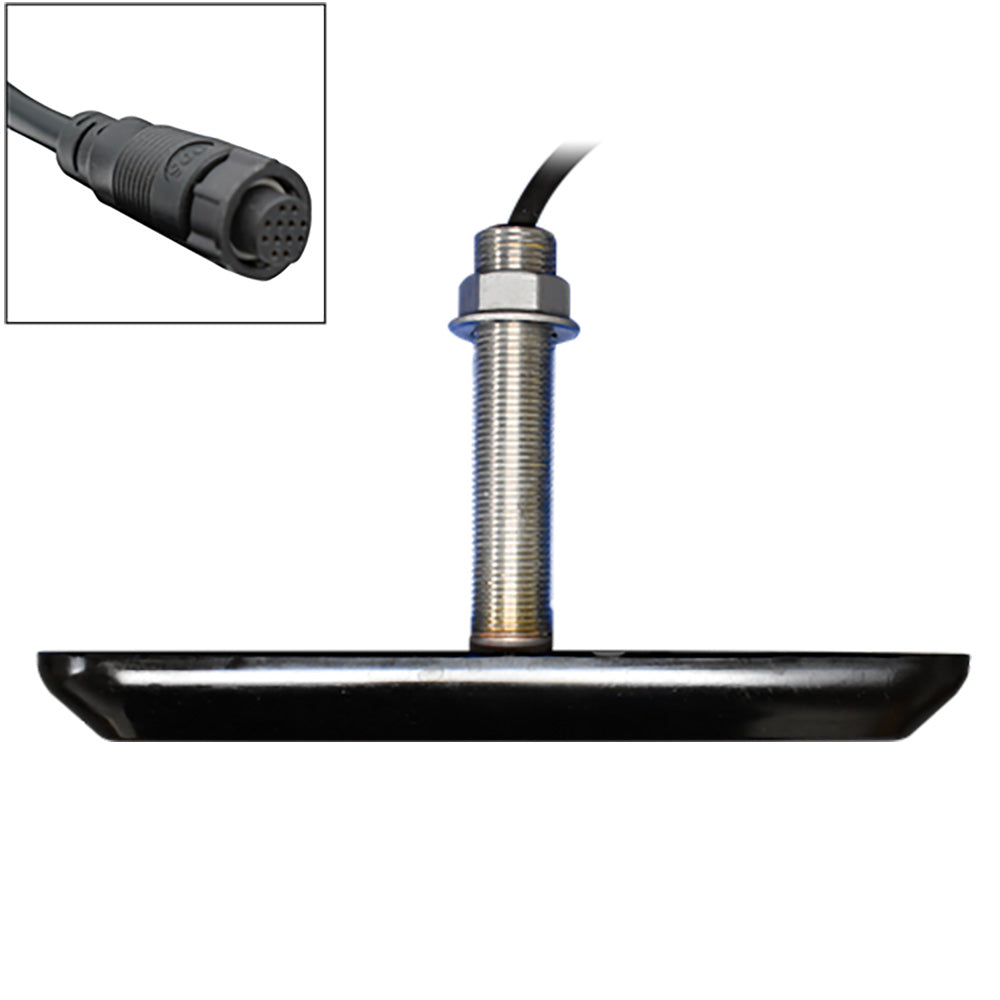

The 225T-SS904 is a high-quality Thru-Hull transducer designed specifically for integration with the built-in Side-Scan functionality of NavNet TZtouch3 models, including TZT12F, TZT16F, and TZT19F Multi-Function Displays (MFD). This transducer ensures reliable and precise data transmission, making it an essential component for fishing, navigating, and exploring underwater environments.

Key Features

• Power Output: Delivers 150 watts on each side for strong and clear sonar signals.
• Frequency: CHIRP 220-240kHz provides enhanced resolution and clarity for detailed underwater images.
• Durable Construction: Stainless steel Thru-Hull assembly with an integrated temperature sensor ensures longevity and accurate temperature readings.
• Connector: Equipped with a 12-pin connector for seamless integration with compatible NavNet TZtouch3 MFDs.
• Cable Length: Comes with a 12-meter (40 feet) high-quality cable, offering flexible installation options.

Compatibility

The 225T-SS904 transducer is fully compatible with the following NavNet TZtouch3 models:

• TZT12F
• TZT16F
• TZT19F

Ensure that your MFD is updated to the latest firmware version to take full advantage of the Side-Scan functionalities provided by this transducer.

Technical Specifications

Parameter	Specification
Model	225T-SS904
Power	150 watts per side
Frequency	CHIRP 220-240kHz
Construction	Stainless steel Thru-Hull with temperature sensor
Connector	12-pin
Cable Length	12 meters (40 feet)

Installation

The 225T-SS904 transducer is designed for straightforward Thru-Hull installation on your vessel. Follow these steps for optimal performance:

1. Select an appropriate location on the hull, ensuring it is free from debris and has a clear path for sonar signals.
2. Drill a hole of the recommended size, maintaining proper alignment to prevent water ingress.
3. Secure the transducer using the provided hardware, ensuring a tight fit to minimize vibrations.
4. Connect the 12-pin connector to your NavNet TZtouch3 MFD, routing the cable neatly to avoid interference.
5. Seal all connections thoroughly to prevent water leaks and ensure the longevity of the transducer.

For detailed instructions, refer to the manufacturer's installation guide.

Warranty and Returns

Please Note: This product may not be returned to the original point of purchase. If you experience any issues or have concerns regarding the 225T-SS904 transducer, please contact the manufacturer directly for assistance and support.
