Furuno Autopilot Pump

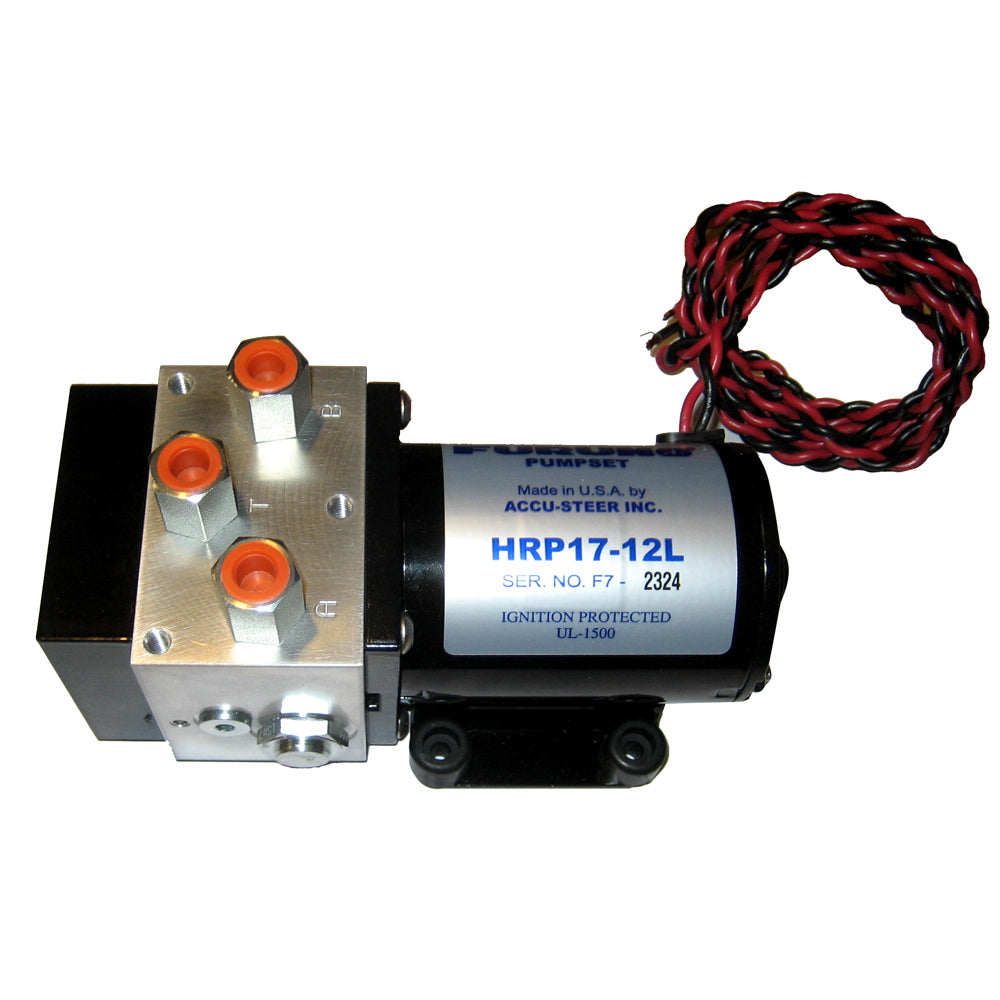

The PUMPHRP17-12 Autopilot Pump is a high-performance 12 VDC hydraulic pump designed to seamlessly integrate your NavPilot series autopilot system with your vessel's hydraulic steering. Engineered for vessels with ram sizes ranging from 14 to 25 cubic inches, this pump ensures smooth, reliable, and precise steering control.

Key Features

• Reversible gerotor gear pump for bidirectional flow
• Two-piece gear housed in an eccentric ring for quiet operation
• Optimized for hydraulic steering systems
• Compatible with ram sizes between 14 to 25 cubic inches
• Durable construction ensures long-lasting performance

How It Works

The PUMPHRP17-12 functions as a reversing pumpset that interfaces with the NavPilot autopilot system to control your vessel's hydraulic steering. The pump assembly features a reversible gerotor gear pump housed within an eccentric ring, enabling incredibly quiet and precise operation.

In a hydraulic steering system, the pump is connected to a hydraulic actuator and one or more helm pumps. When the steering wheel is turned towards port, the helm pump directs hydraulic oil into the port steering line, moving the steering cylinder and thus the rudder to steer the vessel. The oil from the starboard side returns to the helm pump through the starboard hydraulic lines. Turning the wheel to starboard reverses this process, ensuring responsive and accurate steering control.

Installation Requirements

For optimal performance, if multiple helm pumps are utilized, a return/fill line must be installed to connect all helm pump cases together. This setup ensures consistent oil flow and steering responsiveness across your hydraulic steering system.

Performance Specifications

Specification	Details
Flow Rate	1.6 cubic inches per second
Voltage	12 VDC
Compatible Ram Sizes	14 - 25 cubic inches
Box Dimensions	6" H x 6" W x 10" L
Weight	10 lbs
UPC	611679305077

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Warranty and Returns

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

Owner's Manual (PDF)
