Fireboy-Xintex Propane Fume Detector w/Plastic Sensor Solenoid Valve - Black Bezel Display

Ensure the safety of your vessel with our Propane Fume Detector, specifically designed for marine and boating applications. This reliable device detects propane leaks early and automatically shuts off the gas supply, safeguarding you and your passengers from potential hazards on the water.

Key Features

• Advanced Detection: Equipped with a plastic sensor that identifies propane leaks at 20% of the Lower Explosive Limit (LEL).
• Automatic Shut-Off: Integrated solenoid valve automatically closes to stop gas flow when a leak is detected.

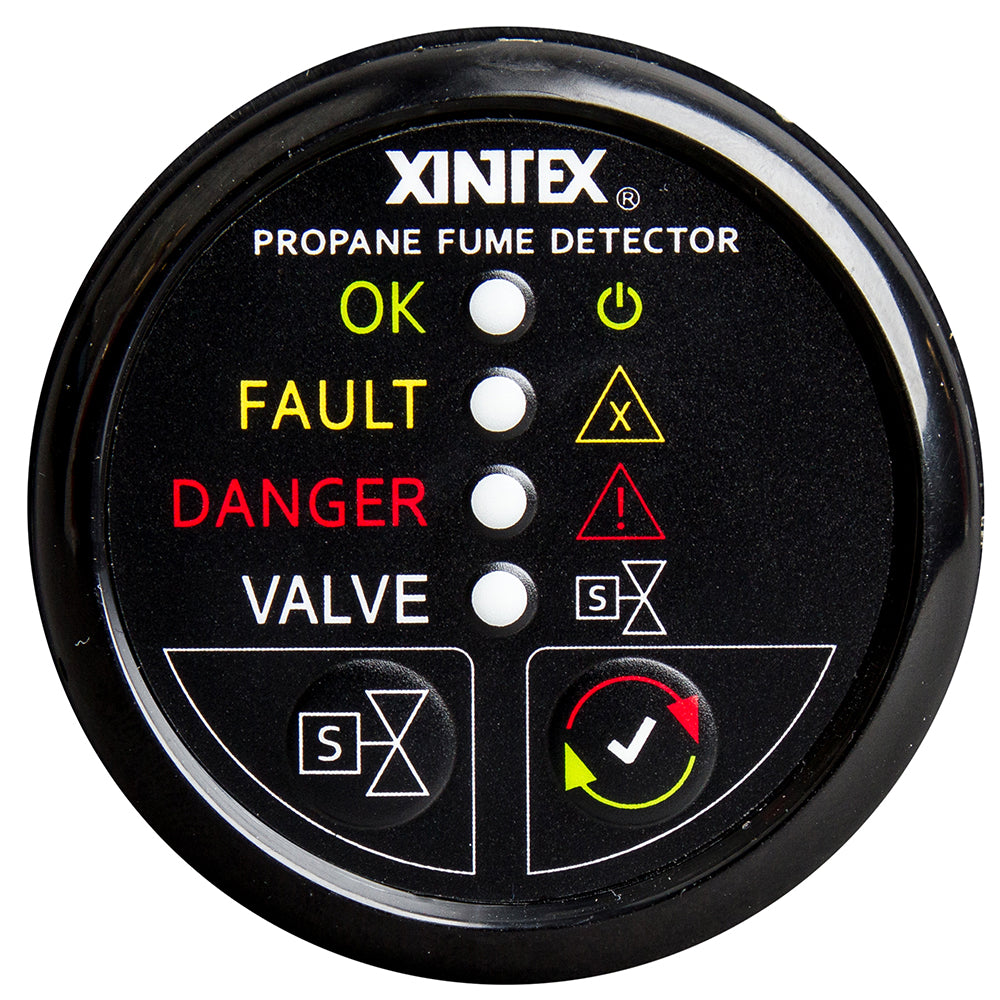

• User-Friendly Display: 2-3/16" round black bezel display with LED indicators and a Silence/Test button for easy operation.
• Audible Alarm: 68 dBA alarm sounds to alert you of propane leaks, ensuring prompt action.
• Durable Construction: Designed to withstand harsh marine environments with an operating temperature range from -40°F to 185°F (-40°C to 85°C).
• Energy Efficient: Operates on 9-30VDC with reverse polarity protection and low current draw at 12VDC (Nominal: 55mA / Maximum: 725mA).
• Easy Installation: Simple setup process, allowing for quick integration into your boat’s existing systems.

Technical Specifications

Feature	Specification
Fume Type	Propane
Voltage - Input Range	9-30VDC
Current Draw @ 12VDC	Nominal: 55mA / Maximum: 725mA
Operating Temperature	-40°F to 185°F (-40°C to 85°C)
Box Dimensions	4"H x 4"W x 8"L
Weight	1.6 lbs
UPC	619749202639

Installation and Usage

Installing the Propane Fume Detector on your boat is straightforward, thanks to its simple installation design. Connect the solenoid valve and adapter to your propane system, and power the device within the 9-30VDC range. The reverse polarity protection ensures safe connection, preventing any electrical mishaps. Once installed, the detector will continuously monitor propane levels, sounding an alarm and activating the solenoid valve to shut off the gas supply in case of any leaks.

Why Choose Our Propane Fume Detector for Your Boat?

• Enhanced Safety: Protects against the dangers of propane leaks, ensuring a safer boating experience.
• Reliable Performance: Consistent detection and automatic shut-off mechanism provide peace of mind.
• Marine-Grade Durability: Built to endure the challenging conditions of marine environments.
• Energy Efficient: Low power consumption ensures minimal impact on your boat’s electrical system.
• Compact Design: Its small footprint allows for flexible installation without taking up valuable space on your vessel.

Compatible Applications

Our Propane Fume Detector is ideal for a wide range of marine and boating applications, including:

1. Propane-powered grills and stoves
2. Boat refrigeration systems
3. Propane heaters and air conditioners
4. Generator units that utilize propane fuel
5. Any onboard propane storage or usage systems

Customer Support

We are committed to providing exceptional support for our marine customers. If you have any questions or need assistance with installation and usage, our dedicated support team is here to help you ensure the optimal safety and functionality of your propane systems.
