Fireboy-Xintex Gasoline Fume Detector w/Dual Channel Blower Control - 12/24V

Ensure the safety of your vessel with our Dual Channel Gasoline Fume Detector, designed specifically for marine environments. Monitor gasoline fumes effectively in engine compartments, fuel storage areas, or any space where fumes may accumulate, providing peace of mind on every voyage.

Comprehensive Monitoring System

The Dual Channel Gasoline Fume Detector offers a complete safety solution with its integrated Blower Control Relay. Experience effortless installation and reliable, precise monitoring of gasoline vapor levels, ensuring your boat remains a safe haven against potential hazards.

Key Features

• Simple Installation: Designed for easy setup in various marine environments.
• Audible and Visual Alarms: Immediate alerts for Lower Explosive Level (LEL) presence through loud alarms and clear indicators.
• Dual Monitoring: Simultaneously monitors two separate areas, enhancing safety across multiple sections of your vessel.
• Automatic Blower Activation: Engages the bilge blower automatically to ventilate and disperse accumulated fumes.

Technical Specifications

Specification	Details
Operating Temperature	-40° to 185°F (-40° to 85°C)
Current Draw Nominal	55mA
Current Draw Maximum	150mA
Operating Voltage	9 to 30V DC
Alarm Horn	68 dB

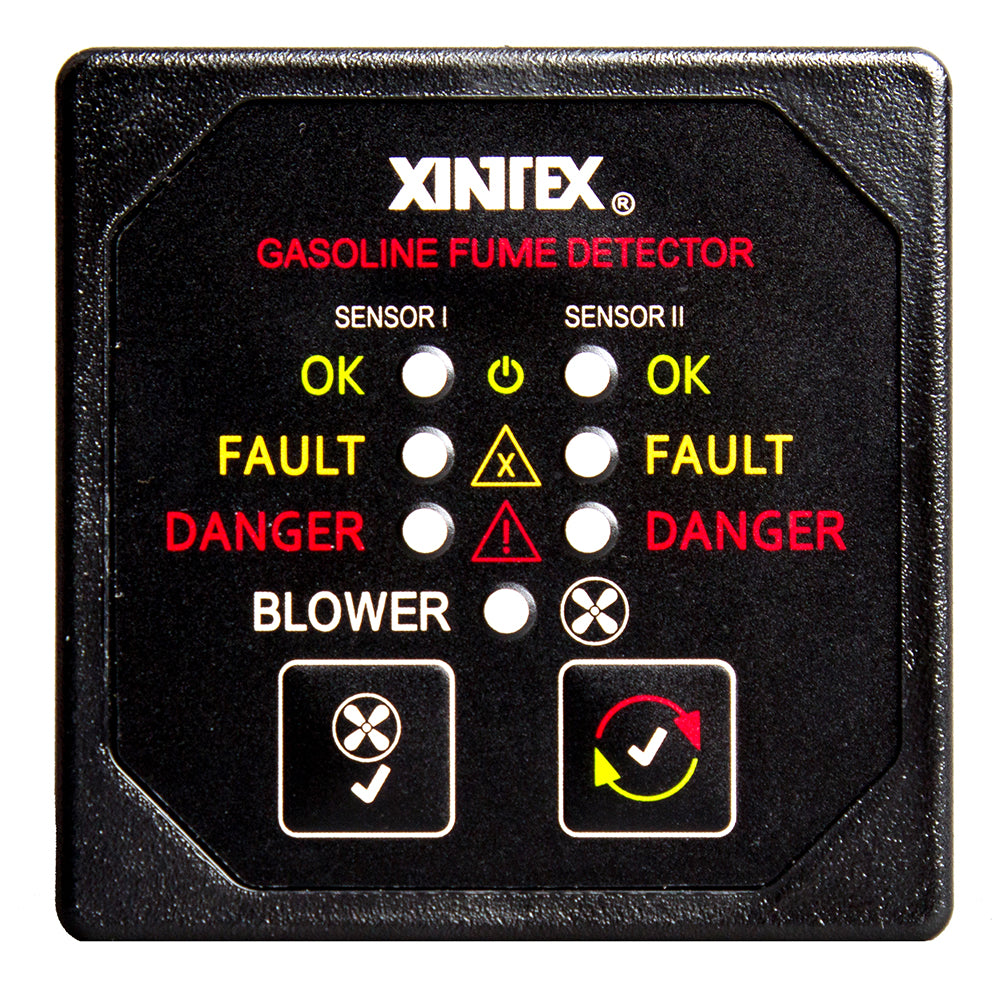

Display Style	Square with Black Bezel
Display Dimensions	2-5/8" x 2-5/8" (6.7 x 6.7 cm)
Cutout Dimension	2-1/8" (5.4 cm) round hole

Package Includes

• Gasoline Fume Detector Unit
• Two Fuel Sensors
• Two 20' Extension Cables
• Blower Relay
• Comprehensive Instruction Manual

*Sold individually

Additional Specifications

Specification	Details
Blower Relay	Included
Fume Type	Gasoline
Generator Shutdown	No
Sensors Included	2
Voltage Input Range (Volts)	9-30V
Box Dimensions	4"H x 4"W x 8"L
Weight	1.6 lbs
UPC	619749202561

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
