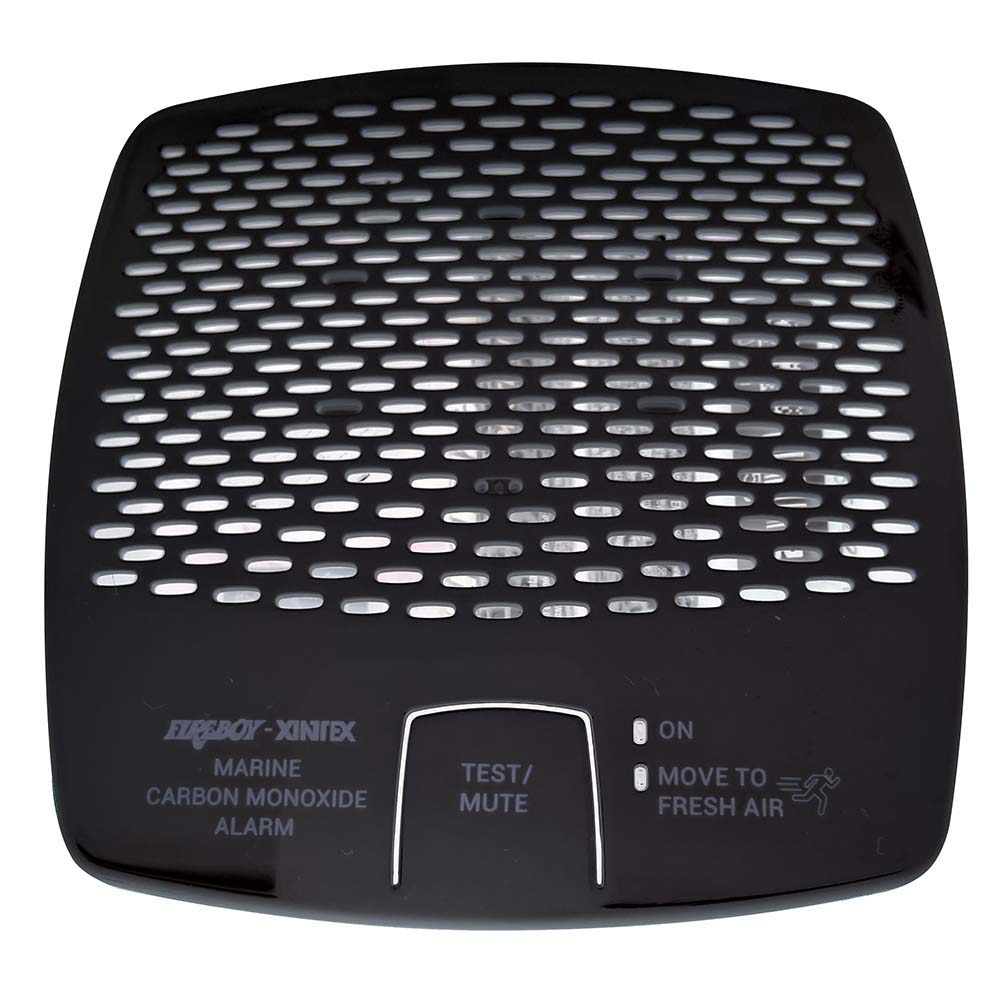

Fireboy-Xintex CO Alarm Internal Battery w/Interconnect - Black

The Fireboy-Xintex CMD6-M Internal Battery Carbon Monoxide Alarm with Interconnect is an essential safety device for your marine vessel. Designed specifically for the challenging marine environment, this compact and reliable CO detector ensures the safety of all onboard by continuously monitoring carbon monoxide levels and providing timely alerts.

Product Overview

Carbon Monoxide (CO) is a silent threat that can pose serious health risks in enclosed spaces like cabins and engine rooms on boats and RVs. The Fireboy-Xintex CMD6-M Series CO alarm utilizes advanced sensor technology and a microprocessor-controlled system to accurately measure CO concentrations, temperature, and time. By calculating the levels of Carboxyhemoglobin (COHb), the alarm effectively gauges the impact of CO on the oxygen-carrying capacity of the blood, ensuring a reliable alarm response when necessary.

Key Features

• Interconnect Capability: Connect up to ten (10) CO alarms, ensuring that all alarms sound simultaneously for comprehensive coverage throughout your vessel.
• Microprocessor Controlled: Advanced processing for accurate and reliable CO level detection.
• Compact Design: A sleek and unobtrusive design that seamlessly integrates into your marine environment.
• Time-Weighted Average Measurement: Continuously monitors CO levels using a time-weighted average process for precise detection.
• Durable Construction: Highly resistant to chemicals, solvents, and cleaners commonly found in marine settings.
• Maintenance-Free: Equipped with a long-lasting internal lithium-metal battery, eliminating the need for wiring and reducing installation costs.
• Extended Sensor Life: Approximately 7-year end-of-life (EOL) for prolonged protection.

Technical Specifications

Power Usage	None
Alarm Point	10% COHb
Alarm Horn	85 dBA
Dimensions	0.5" x 3.5" x 1.21" (1.27 x 8.89 x 3.07 cm)
Interconnect Functionality	Yes

Additional Specifications

Blower Relay	No
Fume Type	Carbon Monoxide
Generator Shutdown	Yes
Sensors Included	1
Voltage - Input Range (Volts)	N/A
Box Dimensions	2"H x 4"W x 6"L (5.08 cm x 10.16 cm x 15.24 cm)
Weight	0.4 lbs
UPC	619749208686

Installation and Maintenance

The CMD6-MD Internal Battery model simplifies installation with its included maintenance-free lithium-metal batteries. This design eliminates the need for complex wiring, reducing both labor and material costs. For optimal performance, install one CO detector per accommodation space or sleeping area on your vessel.

Safety Information

A CO detector should be installed in each accommodation space on your marine vessel. For small crafts or RVs with an open design, a single detector may suffice. However, if your boat has multiple sleeping areas or partitioned spaces, ensure that one CO alarm is installed in each area to provide adequate protection for all occupants.

*Sold as an Individual

Resources

• Owner's Manual (PDF)
• Brochure (PDF)
