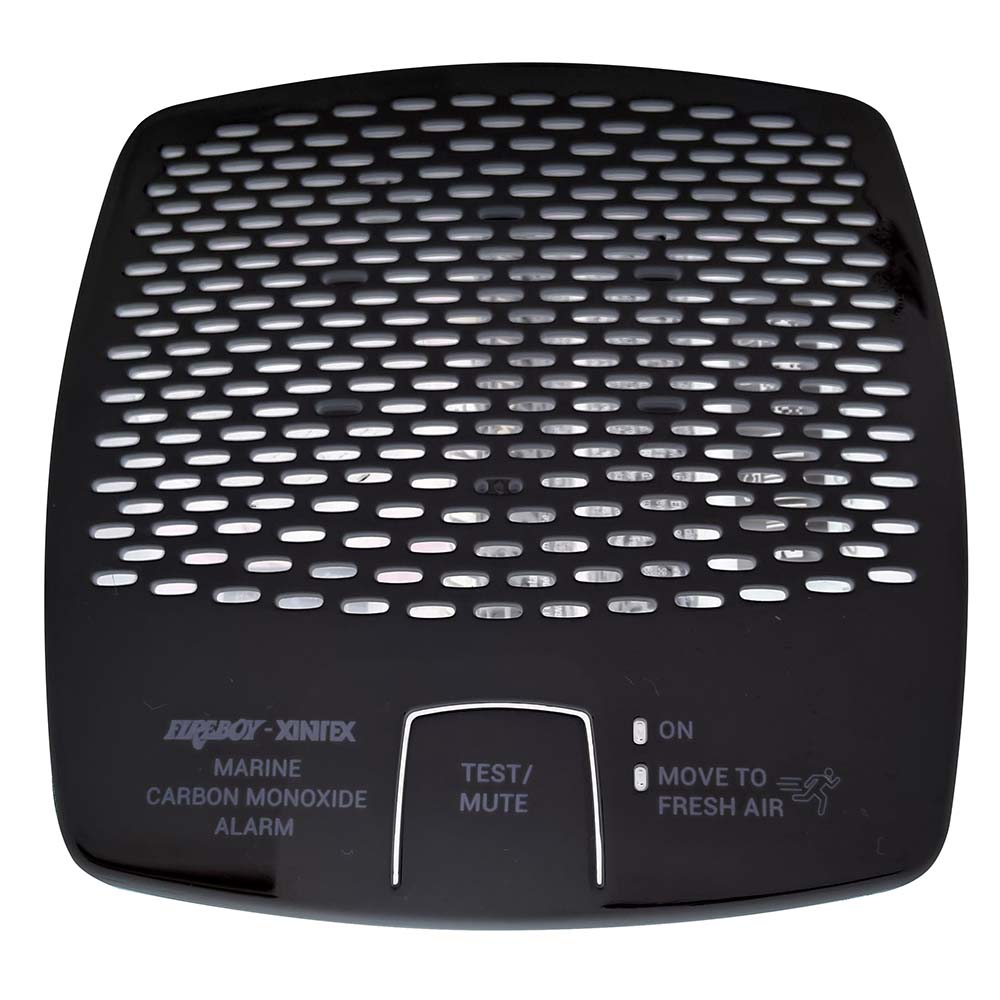

Fireboy-Xintex CO Alarm Internal Battery - Black

Ensure the safety of your boat and everyone on board with the Fireboy-Xintex CMD6-M Series Carbon Monoxide Alarm. Specifically engineered for marine and boating environments, this reliable CO detector continuously monitors air quality, providing peace of mind during your voyages.

Essential Marine Safety with CO Detection

Carbon Monoxide (CO) is a silent threat on any vessel, especially in confined spaces where engines and generators operate. The Fireboy-Xintex CMD6-M Series CO Alarm is designed to detect harmful CO levels early, preventing potential poisoning incidents and ensuring a safe environment for all passengers.

Installation Guidelines

Proper installation is crucial for optimal protection:

• Install one (1) CO detector in each accommodation space.
• For small crafts or RVs with open designs, one (1) detector may suffice.
• If your vessel has two (2) or more sleeping areas or partitioned spaces, equip each space with its own detector.

Advanced Technology for Superior Detection

The CMD6-M Series utilizes cutting-edge sensor technology and a microprocessor to accurately measure CO levels. By employing a Time Weighted Average (TWA) process, it assesses CO concentration, temperature, and time to calculate Carboxyhemoglobin (COHb) levels—the indicator of CO’s impact on blood oxygen capacity.

How It Works

COHb represents the percentage of hemoglobin bound with carbon monoxide, reducing the blood’s ability to carry oxygen. The CMD6-M alarm continuously calculates COHb over time, determining the appropriate alarm response to alert you before CO levels become hazardous.

Key Features

• Microprocessor Controlled: Ensures precise and reliable CO level measurements.
• Compact Design: Fits seamlessly into your vessel without being obtrusive.
• Time-Weighted Average Measurement: Continuously monitors CO levels for accurate assessments.
• Chemical Resistant: Highly resistant to most chemicals, solvents, and cleaners common in marine settings.
• Internal Battery Model: The CMD6-MD variant uses maintenance-free lithium-metal batteries, eliminating the need for wiring and reducing installation costs.
• Long Sensor Life: Approximately 7 years end-of-life (EOL) for extended protection.

Technical Specifications

Specification	Details
Power Usage	None
Alarm Point	10% COHb
Alarm Horn	85 dBA
Dimensions	0.5" x 3.5" x 1.21" (8.9 x 8.9 x 3.1 cm)
Interconnect Functionality	No
Blower Relay	No
Fume Type	Carbon Monoxide
Generator Shutdown	No
Sensors Included	1
Voltage - Input Range	N/A
Box Dimensions	2"H x 4"W x 5"L
Weight	0.35 lbs
UPC	619749208563

Additional Resources

For more detailed information, refer to the following documents:

• Owner's Manual (pdf)
• Brochure (pdf)

Watch It in Action

Note: This CO Alarm is sold individually.
