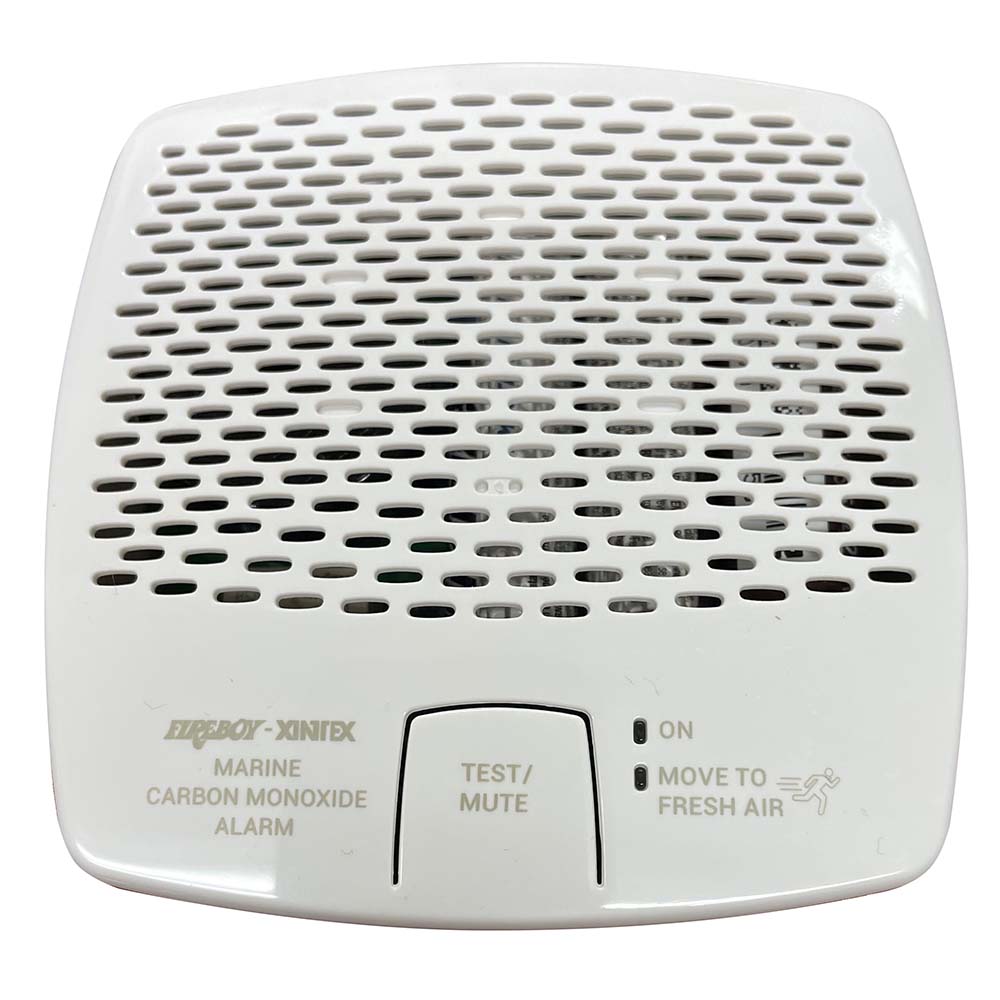

Fireboy-Xintex CO Alarm 12/24V DC - White

The Fireboy-Xintex CMD6-M Series CO Alarm is an essential safety device for your marine vessel, providing reliable detection of Carbon Monoxide (CO) to ensure the well-being of all onboard. Designed specifically for the demanding environment of boats and RVs, this compact alarm offers long-lasting protection with minimal maintenance.

Why Choose the Fireboy-Xintex CMD6-M for Your Marine Vessel

Carbon Monoxide is a silent threat, especially in confined spaces like boats and RVs. The Fireboy-Xintex CMD6-M Series CO Alarm is engineered to deliver accurate and timely alerts, safeguarding you and your passengers from the dangers of CO exposure.

Key Features

• Microprocessor Controlled: Advanced microprocessor ensures precise monitoring and response.
• Compact Design: Sleek and unobtrusive, perfect for discreet installation on your vessel.
• Time-Weighted Average (TWA) Monitoring: Continuously assesses CO levels over time for accurate detection.
• Chemical Resistant: Highly resistant to most chemicals, solvents, and cleaners common in marine environments.
• Power Options: The 12/24V DC model utilizes boat power and includes permanent internal backup Lithium-metal batteries, ensuring reliability even during power outages.
• Long Sensor Life: Approximately 7-year end-of-life, reducing the need for frequent replacements.

Advanced Detection Technology

The CMD6-M Series utilizes a sensor with a built-in microprocessor to measure CO levels accurately. By employing a Time Weighted Average (TWA) process, it monitors CO concentration, temperature, and time to calculate Carboxyhemoglobin (COHb) levels. COHb represents the degree to which CO impedes the oxygen-carrying capacity of your blood, measured as a percentage. This alarm intelligently calculates COHb based on exposure time, ensuring timely and appropriate alarm responses to keep you safe.

Technical Specifications

Specification	Details
Power Usage	4 mA
Alarm Point	10% COHb
Alarm Horn	85 dBA
Dimensions	0.5" x 3.5" x 1.21" (8.9 x 8.9 x 3.1 cm)
Interconnect Functionality	No

Additional Specifications

• Blower Relay: No
• Fume Type: Carbon Monoxide
• Generator Shutdown: No
• Sensors Included: 1
• Voltage - Input Range: 12 - 24V DC
• Box Dimensions: 2"H x 4"W x 4"L
• Weight: 1 lb
• UPC: 619749208822

Installation Guidelines

A Carbon Monoxide detector should be installed in each accommodation space on your vessel. For small crafts or RVs with an open design, one detector may suffice. However, if your vessel has two or more sleeping areas or partitioned spaces, it is recommended to install one detector in each area to ensure comprehensive protection.

Resources

For detailed instructions and information, please refer to the following resources:

• Owner's Manual (PDF)
• Brochure (PDF)

Watch Our Product in Action

Note: Sold as an individual unit.
