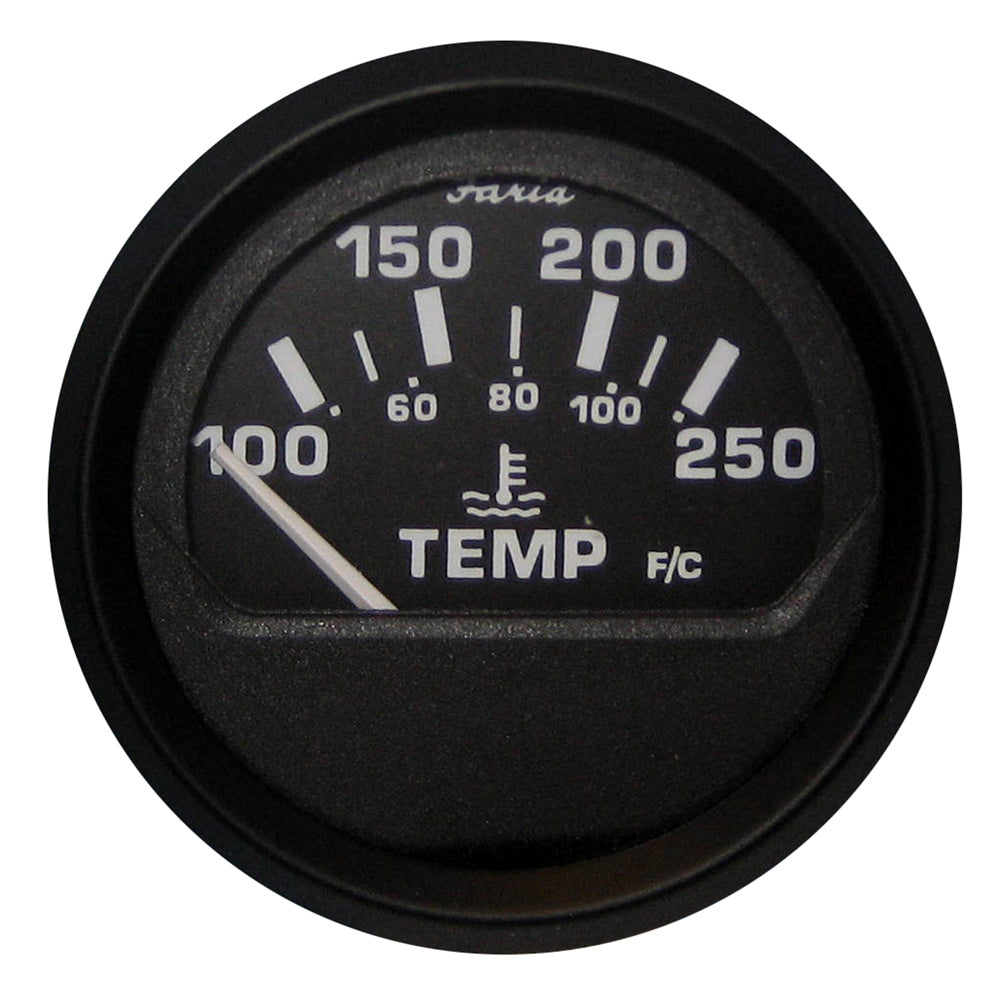

Faria Euro Black 2" Water Temperature Gauge (100-250 DegreeF)

Euro Black 2" Water Temperature Gauge (100-250°F)

Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer, and flat glass lens.

A temperature gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the temperature.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• Anti-scratch glass lens
• Plastic Cases for corrosion resistance and long life
• 12 VDC negative ground
• Can be adapted for 24 VDC systems
• Dual scale - Imperial and Metric

Factory P/N GP9118

*Sold as an Individual

**Gauge Cover not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Gauge Type: Water Temperature
• Series: Euro Black
• Voltage - Input Range (Volts): 12/24 V
• Gauge Size: 2"
• Box Set: No
• Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
• UPC: 759266128125

Quick Guide (pdf)
