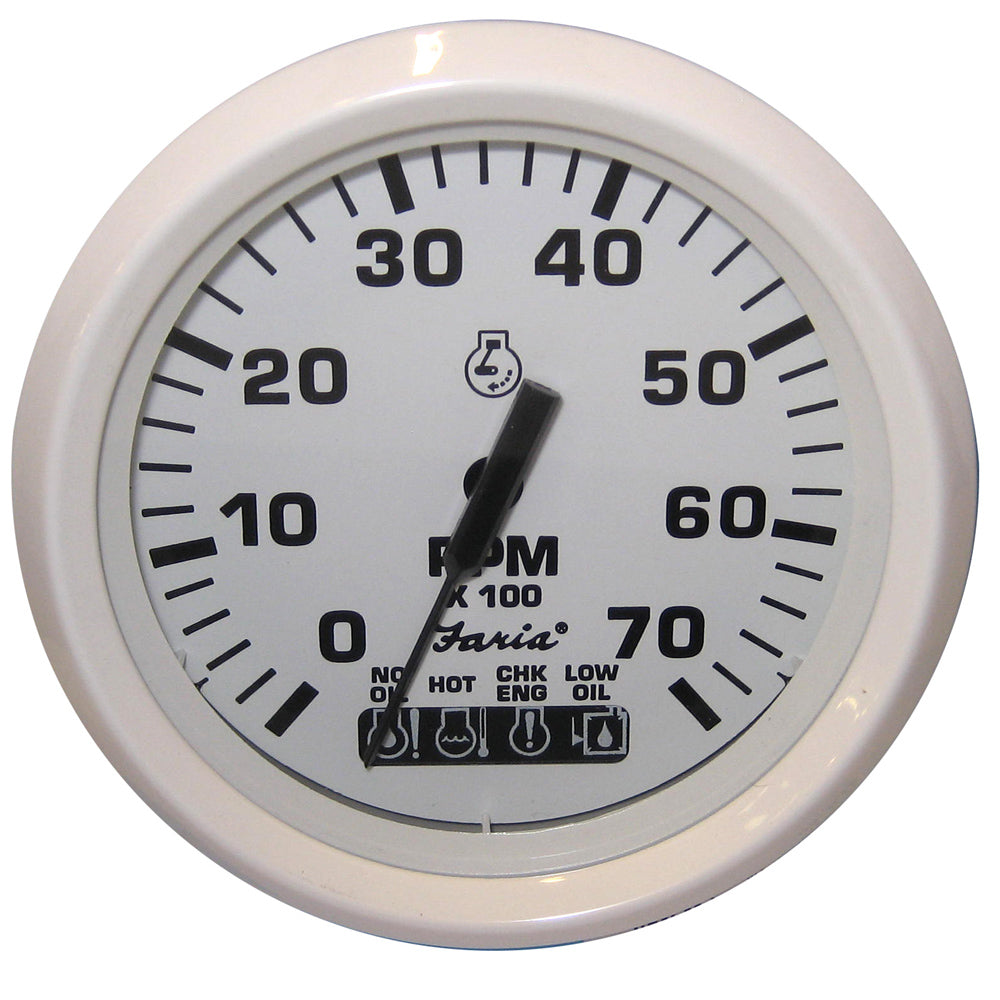

Faria Dress White 4" Tachometer w/Systemcheck Indicator - 7000 RPM (Gas) (Johnson / Evinrude Outboard)

Enhance your boating experience with the Dress White 4" Tachometer, equipped with a SystemCheck Indicator that monitors your engine's performance up to 7000 RPM. Specifically designed for Johnson and Evinrude outboard engines, this tachometer ensures you stay informed and in control on the water.

Key Features

• Perimeter-lighted white dial with bold black graphics
• White aluminum bezel for a sleek, marine-friendly look
• Contoured black pointer for easy readability
• Durable flat glass lens with anti-scratch coating
• SystemCheck indicators for real-time engine monitoring

How It Works

The tachometer operates by counting pulses generated by your engine's ignition system, alternator, tach signal generator, or magnetic pickup sender. It connects to your boat's electrical system via +12 VDC, Ground, and a compatible signal source.

By selecting the appropriate tachometer and adjusting the switch on the back, you can calibrate it to recognize the number of pulses per engine revolution, ensuring precise RPM readings.

SystemCheck Warning Indicators

Stay ahead of potential engine issues with the integrated warning light system, which alerts you to the following conditions:

• No Oil
• Engine Overheat
• Check Engine
• Low Oil

Specifications

Gauge Type	Tachometer with System Check
Series	Dress White
Voltage - Input Range	12/24 VDC
Gauge Size	4"
Hole Size	3.375" (85mm)
Anti-Scratch Glass Lens	Yes
Negative Ground	12 VDC
Adaptable for 24 VDC Systems	Yes
Factory Part Number	TC9887
Box Dimensions	5" H x 6" W x 6" L
Weight	0.7 lbs
UPC	745485331507

Installation

1. Disconnect the boat's electrical system before beginning installation.
2. Remove the existing gauge and measure the gauge hole to ensure compatibility with the 4" tachometer.
3. Connect the tachometer to the +12 VDC, Ground, and the appropriate signal source as per the provided wiring diagram.
4. Adjust the back switch to match the number of pulses per engine revolution for accurate RPM readings.
5. Secure the tachometer into the dashboard using the white aluminum bezel.
6. Test the connections and ensure all SystemCheck indicators function correctly.

Compatibility

• Johnson Outboard Engines
• Evinrude Outboard Engines

Package Includes

• Dress White 4" Tachometer
• Installation Instructions

Note: Gauge cover not included. Sold individually.

Important Information

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Support

For more detailed installation guidelines, refer to our Quick Guide (PDF).
