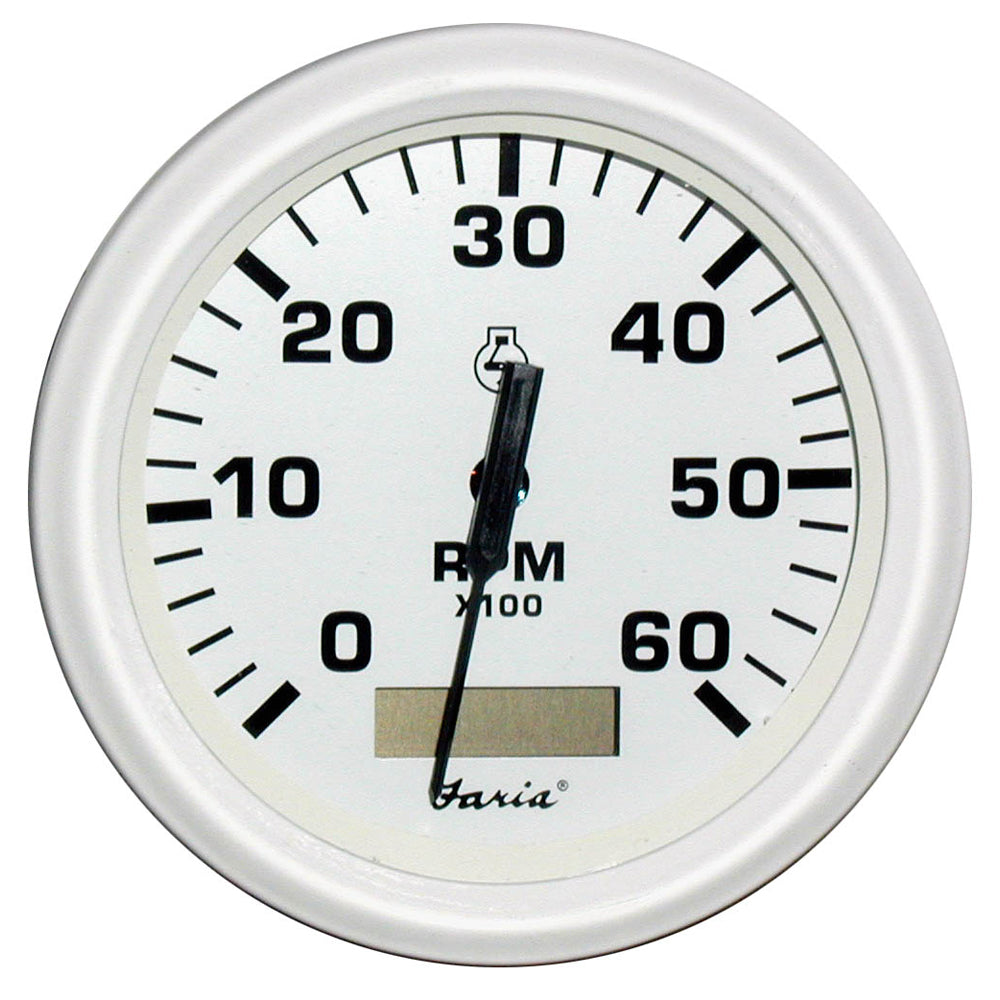

Faria Dress White 4" Tachometer w/Hourmeter - 6000 RPM (Gas) (Inboard)

Enhance your vessel's dashboard with the Dress White 4" Tachometer with Hourmeter, designed specifically for marine and boating applications. This reliable gauge ensures you monitor your engine's performance with precision, helping you maintain optimal operation and longevity.

Product Features

• Perimeter-lighted white dial with bold black graphics for easy visibility in all lighting conditions.
• Durable white aluminum bezel that complements any marine dashboard aesthetic.
• Contoured black pointer and flat glass lens for a sleek and professional look.
• Anti-scratch glass lens ensures longevity and maintains clarity over time.
• Compatible with both 12 VDC and adaptable for 24 VDC marine electrical systems.

Performance and Functionality

The Dress White Tachometer operates by accurately counting pulses generated by your vessel's ignition system, alternator, tach signal generator, or magnetic pickup sender. This ensures precise RPM readings up to 6000 RPM, allowing you to keep a close eye on engine performance.

Additionally, the integrated hourmeter tracks engine hours, providing valuable data for maintenance scheduling and engine life management.

Installation Guide

1. Connect the tachometer to a +12VDC power source and Ground.
2. Select the appropriate signal source from the ignition system, alternator, tach signal generator, or magnetic pickup sender.
3. Set the switch on the back of the tachometer to the correct position corresponding to your engine's pulse settings.
4. Ensure the 4" gauge fits the 3.375" (85mm) hole size on your dashboard.
5. Secure the tachometer in place and verify all connections for proper operation.

Specifications

Feature	Details
Gauge Type	Tachometer with Hourmeter
Series	Dress White
Voltage - Input Range	12/24 VDC
Gauge Size	4 inches
Hole Size	3.375 inches (85mm)
Box Dimensions	5"H x 6"W x 6"L
Weight	0.8 lbs
UPC	759266331327
Factory Part Number	TC9124

Additional Information

• Scale: 0 to 10,000 Hours
• Anti-scratch glass lens for enhanced durability.
• Can be adapted for both 12 VDC and 24 VDC systems, providing versatility for various marine applications.
• Sold as an individual unit. Gauge cover not included.

Support and Warranty

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

For detailed installation instructions, refer to the Quick Guide (PDF).
