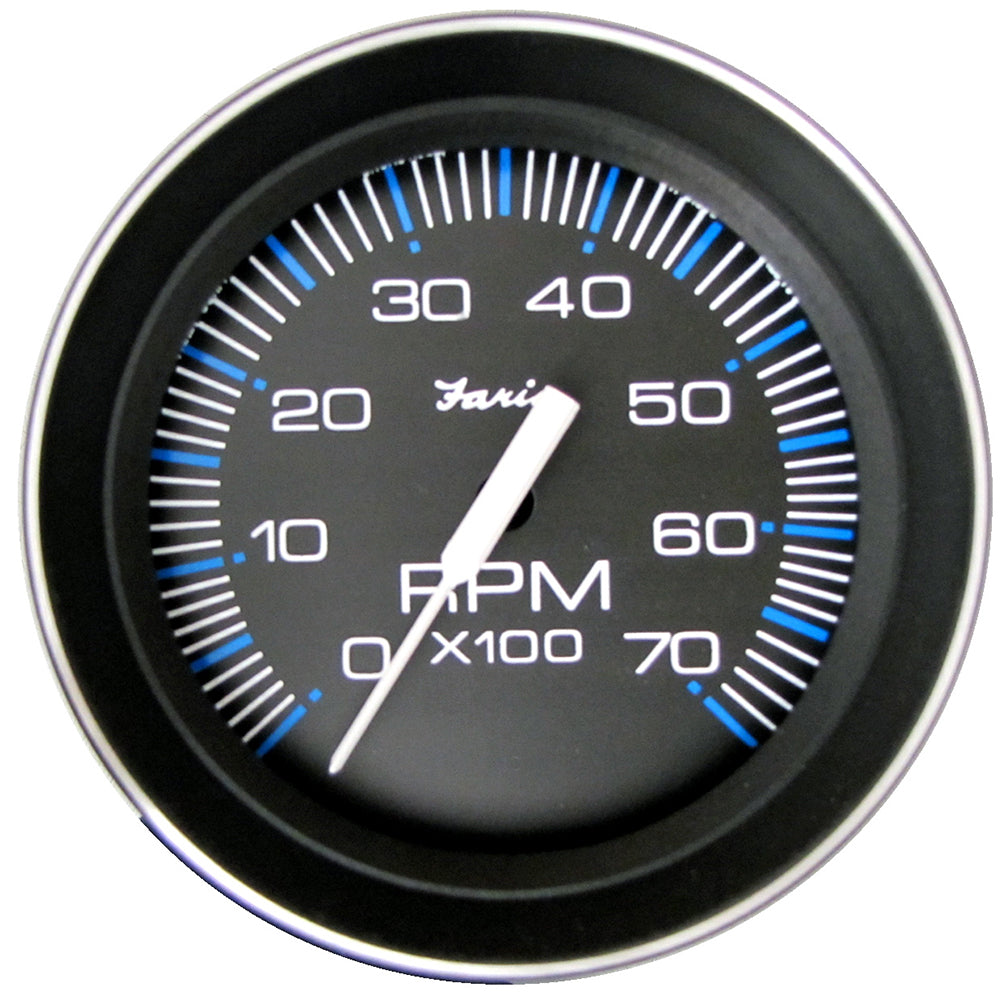

Faria Coral 4" Tachometer (7000 RPM) (All Outboard)

The Coral 4" Tachometer is the perfect addition to your marine dashboard, designed specifically for all outboard engines. With its sleek black dial illuminated by perimeter lighting and vibrant white and blue graphics, this tachometer not only enhances the aesthetic of your vessel but also provides reliable performance monitoring up to 7000 RPM.

Key Features

• Perimeter-Lighted Dial: Ensures clear visibility in all lighting conditions with stylish white and blue graphics.
• Durable Construction: Features a black aluminum bezel with a burnished leading edge for longevity and resistance to marine environments.
• Precision Pointer: Contoured white pointer offers accurate RPM readings for optimal engine performance.
• Scratch-Resistant Lens: Maintains a clear display, resisting wear and tear from constant use.
• Flat Glass Lens: Protects the tachometer from moisture and debris, ensuring longevity.

Technical Specifications

Gauge Type	Tachometer
Gauge Size	4"
Maximum RPM	7000 RPM
Voltage Input Range	12/24 VDC
Hole Size	3.375" (85mm)
Series	Coral
Box Dimensions	6"H x 6"W x 7"L
Weight	0.7 lbs
UPC	759266330054
Factory Part Number	TC9036

Installation Guide

The Coral Tachometer is easy to install with connections to +12 VDC, Ground, and one of the signal sources such as the ignition system, alternator, tachometer signal generator, or magnetic pickup sender. Ensure proper installation by following these steps:

1. Mount the tachometer securely on your vessel’s dashboard using the 4” hole size.
2. Connect the +12 VDC and Ground wires to your marine electrical system.
3. Select and connect the appropriate signal source based on your outboard engine’s configuration.
4. Verify all connections are secure and test the tachometer for accurate RPM readings.

Compatibility

Designed for all outboard engines, the Coral 4" Tachometer is compatible with a wide range of marine applications. Whether you’re upgrading your current dashboard or installing a tachometer for the first time, this gauge seamlessly integrates with most outboard motor setups.

What's Included

• Coral 4" Tachometer
• Installation Instructions

Note: Gauge cover not included.

Warranty and Returns

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

*Sold as an individual unit
