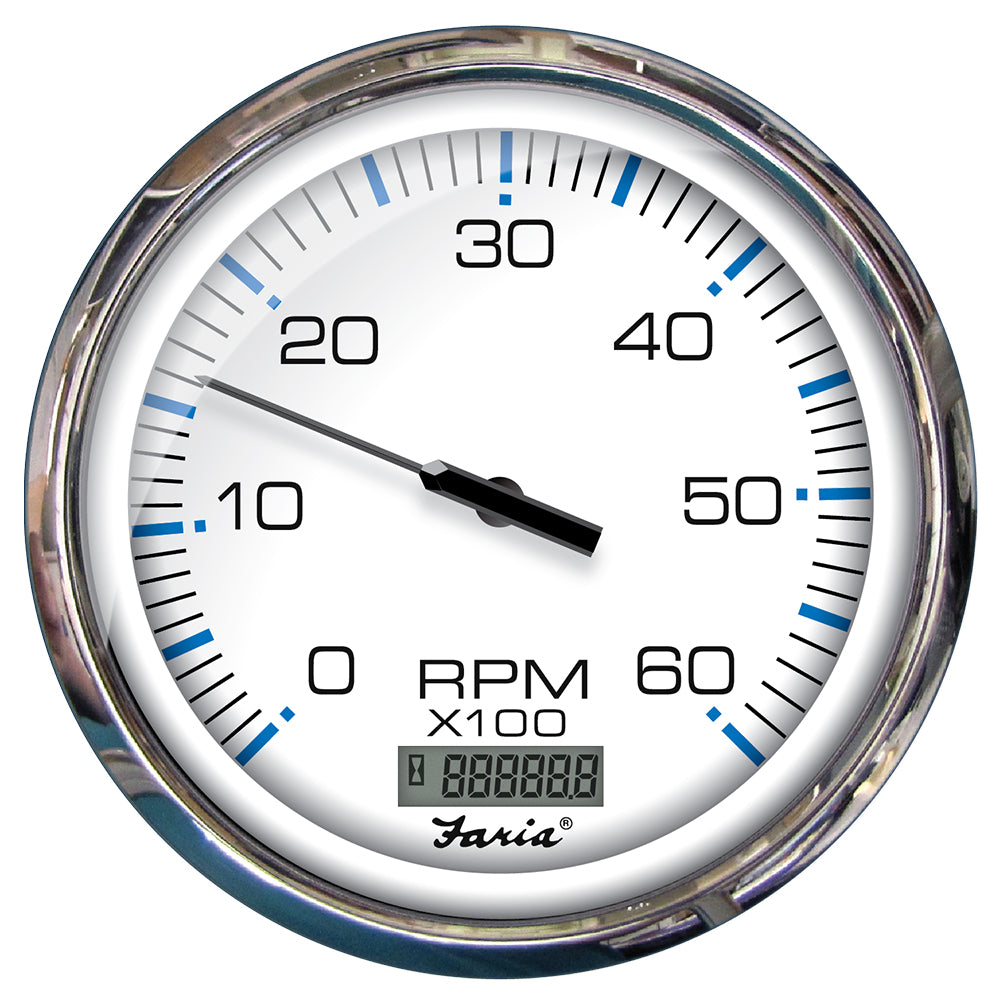

Faria Chesapeake White SS 5" Tachometer w/Digital Hourmeter - 6000 RPM (Gas) (Inboard)

The Chesapeake White SS 5" Tachometer with Digital Hourmeter is an essential instrument for marine and boating enthusiasts, offering precise engine RPM monitoring and hour tracking. Designed for inboard gas engines, this tachometer combines durability with sleek aesthetics, featuring a perimeter-lighted white dial accented with blue and white graphics.

Design and Features

• Perimeter-lighted white dial with stylish blue and white graphics for enhanced visibility
• Polished stainless steel bezel adds a touch of elegance to your vessel's dashboard
• Contoured white pointer ensures easy readability of engine RPMs
• Domed anti-scratch glass lens protects the gauge face from marine environments
• Backlighting improves readability in low-light conditions, essential for nighttime navigation

Installation and Operation

The Chesapeake White SS 5" Tachometer is engineered for straightforward installation in marine settings. It operates by counting electrical pulses from your engine's ignition system, alternator, tach signal generator, or magnetic pickup sender.

To install, connect the tachometer to a +12VDC power source, ground, and one of the compatible signal inputs. The device is equipped with a switch on the back to configure the pulse count per engine revolution, ensuring accurate RPM readings tailored to your specific inboard gas engine.

The tachometer features a 5" gauge size with a hole size of 4.375" (112mm), making it compatible with standard marine instrument panels.

Specifications

Feature	Details
Model	Chesapeake White SS 5" Tachometer w/Digital Hourmeter
Maximum RPM	6000 RPM
Gauge Size	5"
Hole Size	4.375" (112mm)
Voltage	12 VDC negative ground (adaptable to 24 VDC systems)
Scale	0 to 10,000 Hours
Glass Lens	Anti-scratch, domed design
Backlight	Perimeter-lighted for enhanced visibility
Gauge Type	Tachometer with Hourmeter
Series	Chesapeake White
Box Dimensions	9"H x 9"W x 9"L
Weight	1.35 lbs
UPC	759266338630
Factory P/N	TC9381

Additional Information

*Sold as an individual unit.

**Gauge cover not included.
