Faria Beede Instruments  |  SKU: LOS-54628  |  Barcode: 759266137011

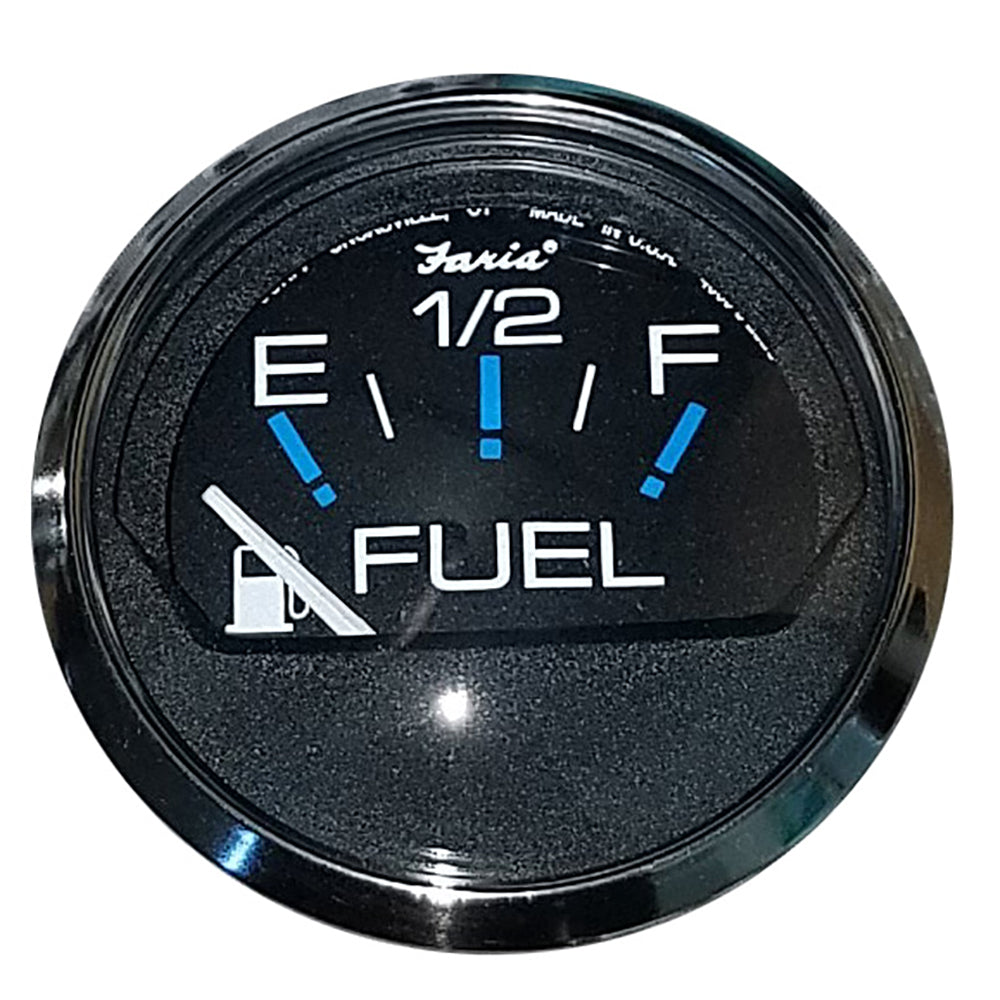

Faria Chesapeake Black 2" Fuel Level Gauge (E-1/2-F)

$35.99 USD $44.99

Product Description

Enhance your marine vessel's dashboard with the Chesapeake Black 2" Fuel Level Gauge (E-1/2-F), featuring a sleek perimeter-lighted black dial adorned with blue and white graphics, a polished stainless steel bezel, a contoured white pointer, and a domed glass lens for optimal visibility even in low-light conditions.

Features

  • Anti-scratch domed glass lens ensures durability and clear visibility.
  • Perimeter lighted backlight provides enhanced illumination for accurate readings during night-time or low-light scenarios.
  • Operates on 12 VDC negative ground systems, adaptable for 24 VDC systems as well.
  • Stylish blue and white graphics complement modern marine dashboards.
  • Polished stainless steel bezel adds a touch of elegance and resists corrosion in marine environments.

Technical Specifications

Specification Details
Gauge Type Fuel Level
Series Chesapeake Black
Voltage - Input Range 12/24 VDC
Gauge Size 2"
Hole Size 2.0625" (53mm)
Box Set No
Box Dimensions 4"H x 4"W x 5"L
Weight 0.3 lbs
UPC 759266137011
Factory Part Number GP9368

How It Works

The fuel level gauge utilizes a low amperage current sent through the gauge's meter to ground via a sending unit with variable resistance. As the sender's resistance changes due to factors like pressure and temperature, the amount of current flowing to ground varies, causing the meter to deflect and accurately display the fuel level.

Installation Notes

  • Requires a 2" hole size (2.0625" / 53mm) for installation.
  • Can be installed on both 12 VDC and 24 VDC negative ground systems.
  • Gauge cover is not included and must be purchased separately.

What's Included

  • Chesapeake Black 2" Fuel Level Gauge
  • Mounting hardware

Additional Information

Note: This product is sold individually. The gauge cover is not included.

Return Policy: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (pdf)
