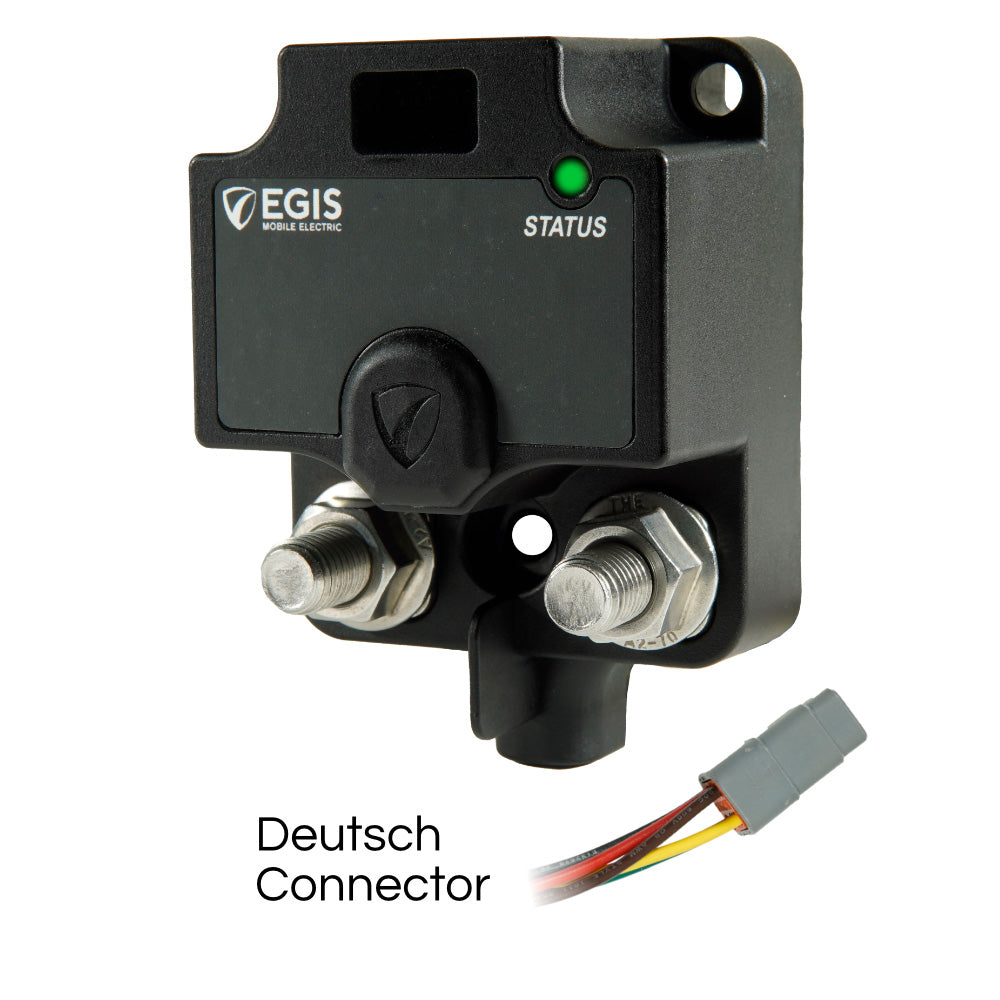

Egis XD Series Single Flex 2 Relay-ACR - DTM Connector

The XD Series Single Flex 2 Relay-ACR - DTM Connector is engineered specifically for marine and boating applications, offering a compact and lightweight solution for managing your vessel's electrical systems. Its advanced bi-stable solenoid design and multiple solenoid assemblies streamline common electrical layouts, allowing for seamless integration and expansion with additional XD relays.

Product Features

• Compact and Lightweight: Achieve a 35-75% reduction in mounting space and product weight compared to traditional relays.
• Expandable Design: Easily expand your system with link and cross-link busbars to accommodate additional dual, triple, or single XD relays.
• Multi-Battery Support: Compatible with 2 or 3 battery systems using standard busbar interconnect accessories.
• Marine-Grade Construction: Bullet-proof, IP67/IP6K9K sealed casing with high-temperature electronics and materials ensures durability in harsh marine environments.

Applications

Ideal for a variety of marine electrical systems, including:

• Replacing or upgrading legacy solenoids and remote battery switches with a wire-for-wire compatible solution.
• Integrating with Blue Sea ML-solenoid and ML-remote battery switch products for enhanced system compatibility.
• Managing power distribution efficiently in boats, yachts, and other marine vessels.

Specifications

Specification	Details
Total Continuous Current Amps	500 A
Max Cranking Current	1500 A
Mechanical Switching Life	1,000,000 cycles
Voltage Range	8-36 VDC
Off-State Current Draw	1.3 mA
State Change Current	5 A @ 12 VDC; 3 A @ 24 VDC

Key Benefits

• Durable Construction: Stainless steel cable lug studs and corrosion-resistant hardware ensure longevity in saltwater environments.
• Easy Installation: Forward-facing input studs facilitate large wire landing, while large mounting holes accommodate 1/4-20 / M6 hardware for versatile installation options.
• Flexible Programmability: Simple dip switches allow for easy customization of relay functions, providing significant flexibility for boat owners and installers.
• Energy Efficient: Consumes 90-95% less off-state current compared to competitive products, optimizing your vessel's power usage.
• Safety Features: Protective covers and integrated label recesses prevent accidental shorts and enable easy identification of circuits.

Focal Features

LED Status Display

The front-facing LED indicator provides a clear visual status of the relay, while the remote LED replicates the on-device status, ensuring you can monitor your system from multiple locations on your vessel.

40 Circuit Label Sheet Included

Keep your electrical system organized with the included weatherproof label set. The convenient recesses allow for easy identification of circuits and relays, and blank labels are available for custom applications.

Protective Cover

Safeguard terminal studs and cable edges from accidental shorts with the included protective cover, enhancing the overall safety of your marine electrical system.

Integrated Vent

High-quality Gore-Tex vents regulate internal pressure and prevent moisture ingress, ensuring the relay remains functional and long-lasting even in harsh marine environments.

Stainless Hardware

Equipped with corrosion-resistant stainless steel studs and self-locking flanged nuts, this relay is built to withstand the corrosive effects of saltwater and other harsh conditions.

Programmable Settings

Easily configure your relay settings using the dip switches located under the protective cover. An intuitive configuration guide on the reverse side simplifies the setup process for a wide range of marine applications.

Space-Saving Design

The XD relay's high amp rating is housed in a compact package, minimizing installation space requirements and allowing for more efficient use of available space on your vessel.

Additional Resources

Quick Guide (PDF)
