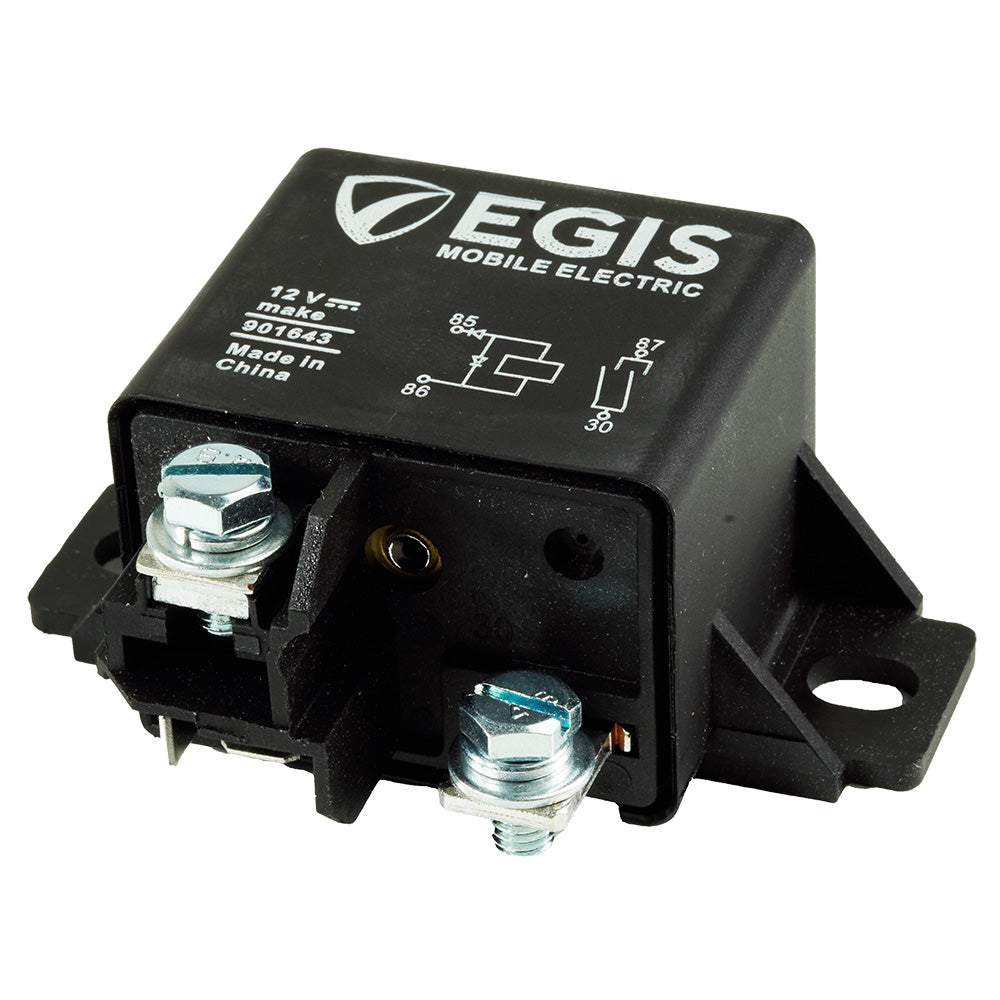

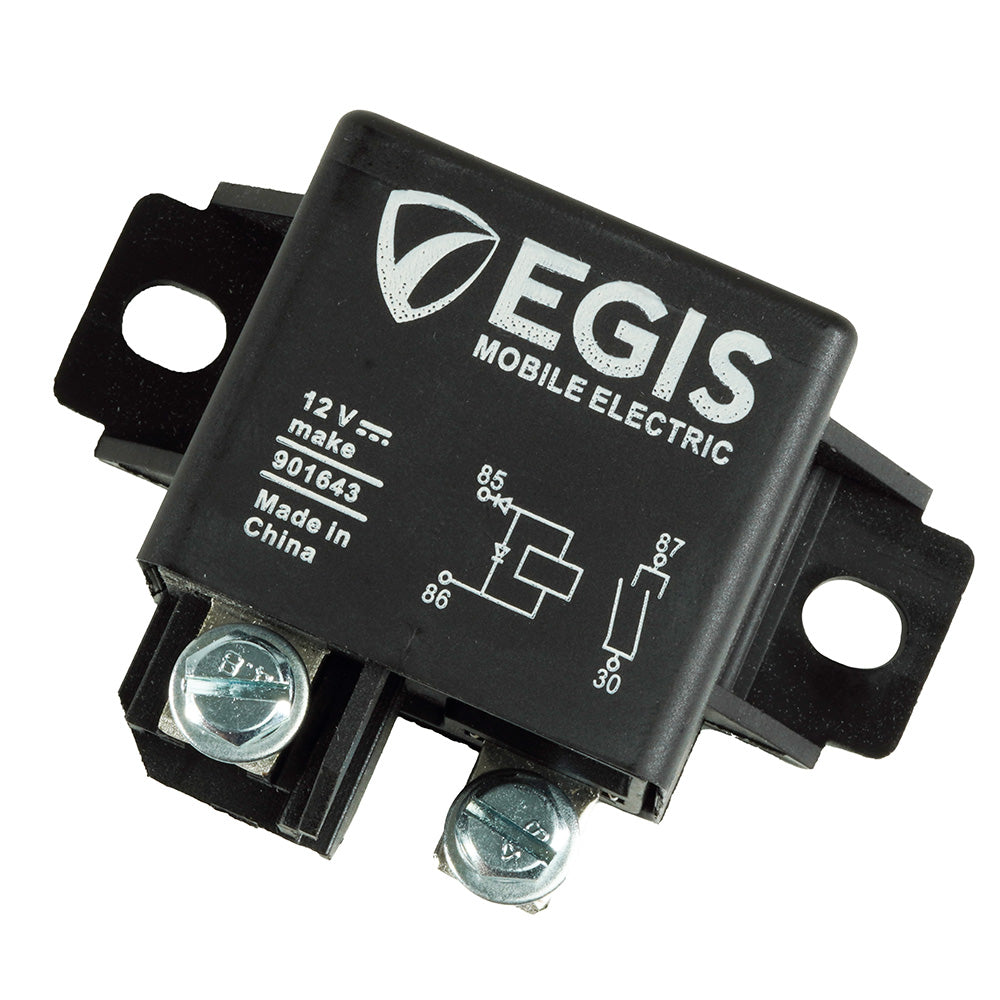

Egis Relay 12V, 75A w/Dual Diode

Enhance your marine electrical system with our robust 12V, 75A Dual Diode Relay, specifically designed for boat and marine applications. This high-performance relay ensures reliable power management, protecting your sensitive marine electronics while handling demanding electrical loads with ease.

Key Features

• Bullet-Proof Construction: Built with automotive-grade materials, this relay features IP54 ingress protection and reinforced mounting tabs for secure installation in harsh marine environments.
• Dual Mounting Options: Equipped with dual mounting holes on both sides, allowing easy installation with ¼-20”/M6 1.25 bolts or screws up to #14 size, perfect for varied marine setups.
• High Electrical Endurance: Capable of 100,000 electrical switching cycles, ensuring long-term reliability for your boat’s electrical systems.
• Enhanced Vibration and Shock Resistance: Designed to withstand the constant vibrations and shocks typical in marine environments, ensuring consistent performance.
• Compact Design: Its small footprint makes it ideal for confined spaces on boats and marine vessels where space is limited.
• Flat Blade Connectors: Features shielded dual 6.3 x 0.03 mm flat male terminal connectors for quick, secure, and easy wire connections.
• Offset Terminals: Integrated divider tab design and varied mounting height input/output pads protect against accidental shorts, enhancing safety.

Applications

• Reliable Power Switching: Bi-furcated contacts reduce contact bounce and extend relay lifespan, ensuring efficient electrical switching for various marine devices.
• Circuit Protection: Dual diode design prevents flyback voltage from damaging control signal circuitry, safeguarding sensitive marine electronics.
• High-Current Demands: With an intermittent amperage rating of 150 amps for up to 3 seconds, it’s perfect for handling temporary high-current draw applications such as starting heavy marine engines.
• Secure Installation: Offset input/output terminals and integrated divider design help prevent accidental contact shorts, ensuring a safe marine electrical setup.
• High-Temperature Environments: Rated for temperatures up to 125°C (257°F), making it suitable for high-temperature areas on boats like engine compartments and other low-ventilation spaces.

Specifications

Enhanced Reliability for Marine Applications

Constructed from premium materials, our relay delivers superior electrical switching performance, ensuring longevity and dependable operation in the demanding conditions of marine environments.

Secure Connections

Featuring zinc-plated M5-sized input/output terminal screws with held-in-place nuts, this relay ensures your wire terminations remain secure and easy to tighten, providing peace of mind aboard your vessel.

Automotive Grade Durability

Designed to meet or exceed IEC 60068-2-27 and IEC 60068-2-6 standards, along with IP54 and IEC 60068-2-2 ratings, this relay is built to handle the wide temperature ranges and robust shock and vibration typical in marine electrical systems.

Flexible Installation

The 6mm x 8.7mm elongated holes accommodate up to 1/4-20" or M6x1.25 bolts or up to #14/1/4" sized screws, allowing for precise positioning and secure mounting in various marine setups.

Reinforced Mounting Tabs

Equipped with sturdy mounting tabs and strengthening gussets, this relay remains securely in place, even in high-vibration scenarios, ensuring uninterrupted operation of your boat’s electrical systems.

Compact and Space-Saving

Its compact footprint makes it an excellent choice for installations where space is at a premium, allowing for more efficient use of available space on your marine vessel.

Flat Blade Connectors for Easy Wiring

Shielded dual 6.3 x 0.03 mm flat male terminal connectors facilitate quick, secure, and hassle-free connections, simplifying the wiring process for your boat’s electrical components.

Offset Terminals for Safety

The integrated divider tab design and varied mounting height input/output pads help prevent accidental shorts, enhancing the safety and reliability of your marine electrical system.
