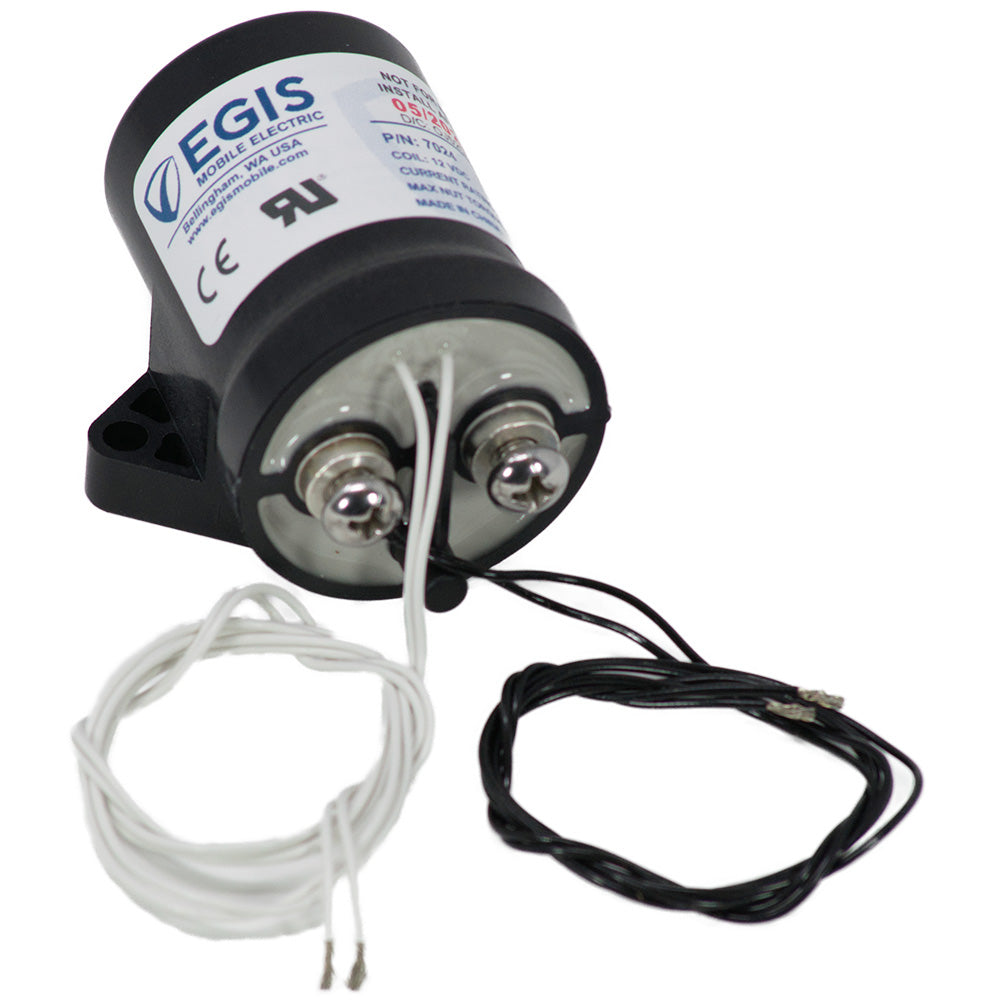

Egis Contactor 100A, 24V w/Aux Contacts

The Egis 100A, 24V Contactor with Auxiliary Contacts is specifically designed for marine and boating applications, providing dependable remote switching for high-ampere marine engines and auxiliary systems. Its compact and durable construction simplifies installation while ensuring optimal performance in demanding marine environments.

Key Features

• Hermetically Sealed Construction: Protects against dust and moisture ingress, ensuring reliable operation in the harsh marine environment.
• High Contact Voltage Rating: Supports 12V and 24V DC control systems and can handle switching voltages up to 48V and higher, making it versatile for various marine applications.
• Auxiliary Contacts: Optional auxiliary contacts provide remote status indication, allowing you to monitor the relay state from different locations on your vessel.

Applications

• Reliable Operation: Ensures flawless performance throughout the lifespan of your marine installation with its sealed design.
• High-Current Switching: Ideal for controlling high-ampere marine engines and auxiliary loads without the need for large cable runs.
• Remote Monitoring: Auxiliary contacts facilitate remote status indication, enhancing the safety and monitoring capabilities of your boat’s electrical systems.

Specifications

Parameter	Specification
Continuous Current (Amps)	100
Operation Control Voltage	16-28 VDC
Ingress Protection	IP67/IP69K
Ignition Protection	ISO-8846 / UL 1500
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85

Durable and Reliable Construction

• Explosion-Proof Safety: Certified for installation in closed compartments where explosive gases may be present, ensuring safe operation.
• High Electrical Switching Endurance: Capable of enduring 6,000 cycles at 100A / 350V and up to 100,000 cycles at 100A / 14V, providing long-term reliability.
• High Interrupt Current Capability: Can safely open in locked starter situations with currents up to 1,250 A @ 14 VDC.
• Robust Construction: Features a sealed device with high-temperature materials suitable for engine compartment applications and stainless self-locking hardware for added durability.
• Industry-Leading Warranty: Comes with a 4-year warranty, the best in the industry, ensuring peace of mind for your marine installation.

Focal Features

Sealed Enclosure

Designed with a hermetically sealed enclosure, this contactor is impervious to dust and moisture, making it perfect for the demanding conditions of marine environments. Its high-temperature rating ensures reliable performance in all installation locations on your vessel.

18-8 Stainless Steel Self-Locking Hardware

Equipped with premium 18-8 stainless steel self-locking hardware, the contactor resists corrosion and guarantees a secure, long-lasting connection, essential for the salty and humid conditions typical in marine settings.

Easy Mounting

Featuring reinforced mounting holes, the contactor allows for straightforward and secure installation, saving time and effort during the setup process on your boat.

Remote Status Support

Optional auxiliary contacts enable remote status indication, allowing you to monitor the on/off state of the relay from a convenient location on your vessel, enhancing safety and operational awareness.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

Quick Guide (PDF)
