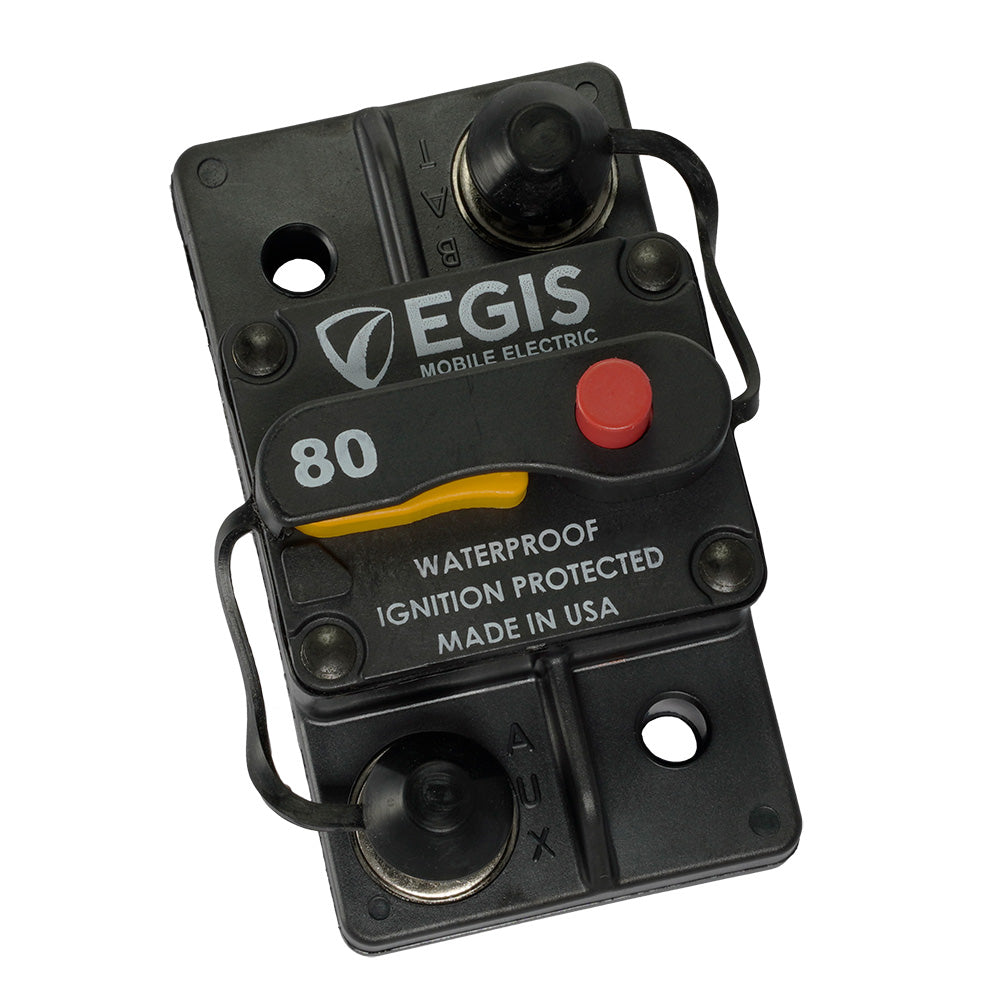

Egis 80A Surface Mount Circuit Breaker - 285 Series

The 80A Egis Surface Mount Circuit Breaker - 285 Series is a reliable and robust solution designed specifically for marine and boating electrical systems. It safeguards your vessel's circuits from short-circuit events and over-current loads, ensuring the longevity and safety of your electrical installations.

Applications

• Combines automatic circuit protection with manual on/off switching, offering dual functionality in a compact and dependable package.
• Enables easy isolation and maintenance of load circuits, featuring convenient switching and integrated circuit protection suitable for mounting near battery systems in any location on your vessel.

Features

• Dust and Water Sealed: Rated IP67, the circuit breaker is fully protected against dust and water intrusion, ensuring long-lasting performance in harsh marine environments.
• High Voltage Rating: With a maximum voltage rating of 48 Vdc, it effortlessly supports 12 and 24 VDC applications while providing advanced protection for 36 and 48 VDC systems.
• Exceptional Switching Endurance: Rated for 6,000 electrical and manual switching cycles at full current, ensuring durability and reliability over time.
• High Interrupt Current Capacity: Capable of safely interrupting large currents, making it ideal for circuits connected to significant paralleled battery banks with high available power.
• 4-Year Warranty: Backed by Egis, guaranteeing the circuit breaker's performance and reliability to meet your marine electrical needs.

Specifications

Parameter	Value
Continuous Current Amps	80A
Maximum Voltage	48 Vdc
Cycling Endurance	6,000 cycles
Interrupt Current @16 Vdc	5,000A
Interrupt Current @28 Vdc	3,000A
Ingress Protection Rating	IP67
Box Dimensions	3"H x 3"W x 5"L
Weight	0.35 lbs
UPC	850035199169

Focal Features

ON/OFF High Visibility Controls

Designed with high-visibility controls, the circuit breaker is easily operable even in low-light conditions. Its sealed construction protects against dust and moisture penetration, and it maintains a high temperature rating suitable for all installation locations on your vessel.

Integrated Terminal Insulators

Equipped with integrated terminal insulators, the breaker prevents accidental shorts between positive terminals and nearby grounded surfaces, enhancing the safety of your electrical system.

Stainless Steel Hardware & Serrated Flange Nuts

Constructed with corrosion-resistant stainless steel hardware and serrated flange nuts, this circuit breaker withstands harsh marine environments, including exposure to saltwater and vibrations.

Proudly Made in the USA

Manufactured in the USA using high-quality components, the Egis 80A Surface Mount Circuit Breaker ensures superior craftsmanship and reliability for your marine applications.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Information

• Amperage: 80A
• Box Dimensions: 3"H x 3"W x 5"L
• Weight: 0.35 lbs
• UPC: 850035199169

Download the Quick Guide (PDF) for detailed installation and usage instructions.
