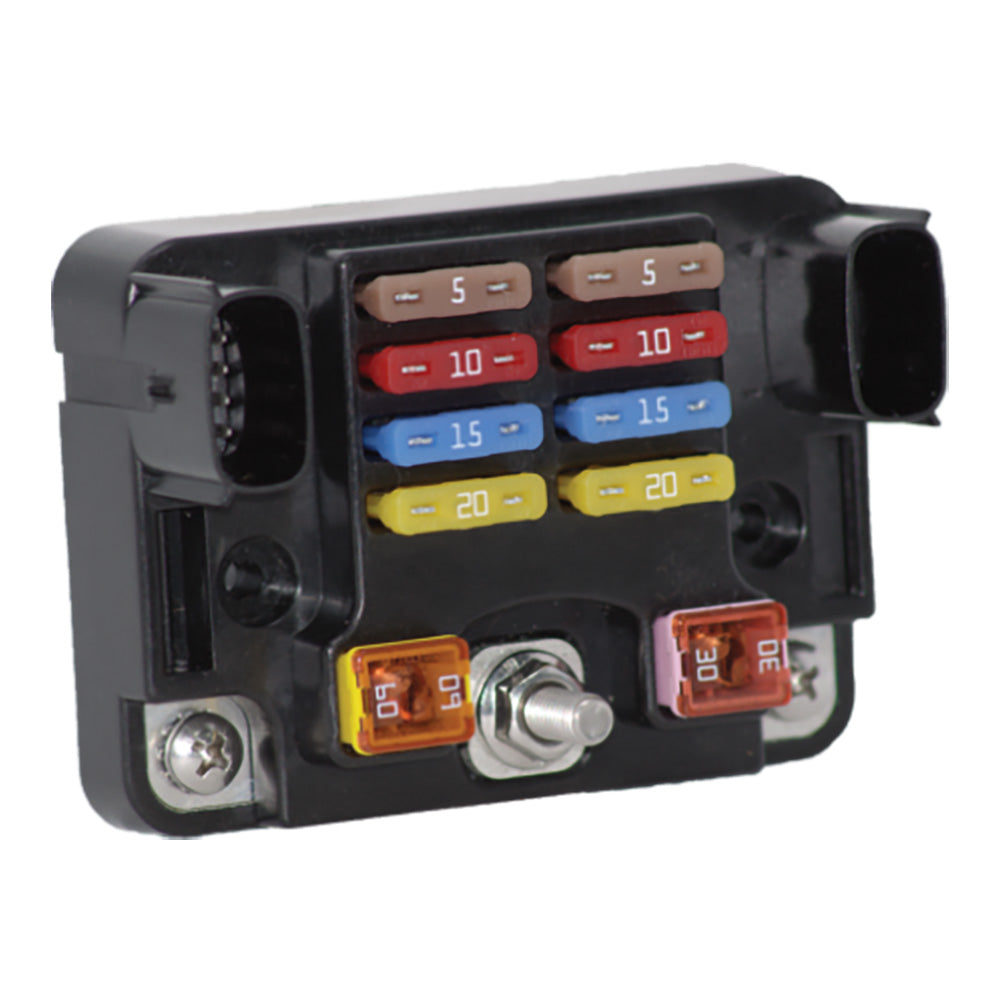

Egis 8 + 2 Fuse Block

The 8 + 2 Fuse Block is the ultimate solution for marine electrical systems, offering both low and high amp fuse protection in a compact design. Ideal for boat owners and marine enthusiasts, this fuse block ensures reliable circuit protection while saving valuable installation space and reducing labor costs.

Applications

• Combines low amp and high amp fuse protection in a single, space-saving unit.
• Reduces installation space requirements and lowers total installation time and costs.
• Equipped with two MX-150 connectors for versatile low-amp output connections.
• Features two high-amp (20-50A) outputs to meet all essential circuit protection needs.

Features

• Dual High-Amp Outputs: Two high-amp (20-50A) outputs provide comprehensive circuit protection for various marine electrical needs.
• Enhanced Protection: Safeguards add-on circuits from accidental short circuits to frame ground or battery negative, as well as from overload events.
• Durable Warranty: Comes with a 4-year industry-leading warranty, ensuring long-term reliability and peace of mind.

Specifications

Specification	Details
Total Continuous Current (AMPS)	200 AMPS
Max Current Per ATO Fuse (AMPS)	22 AMPS
Voltage Range (V DC)	8-36V DC
Max Current Per LP J Case Fuse (AMPS)	50 AMPS
Max Current Per 4 Pos MX-150 (AMPS)	50 AMPS
Max Wire Gauge, MX-150 Connector	14 AWG

For detailed installation instructions and additional information, please refer to our Quick Guide (PDF).
