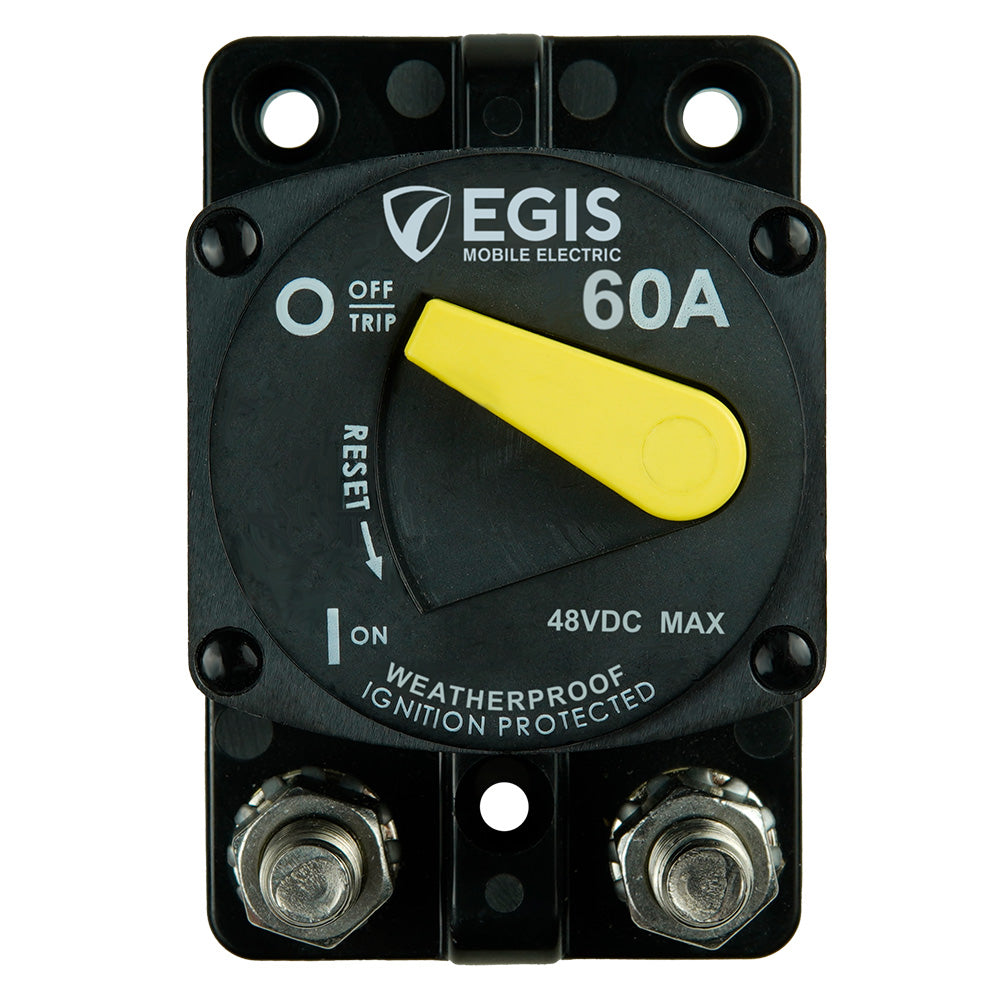

Egis 60A Surface Mount 87 Series Circuit Breaker

The 60A Surface Mount 87 Series Circuit Breaker by Egis is engineered to deliver unparalleled protection and reliability for your marine electrical systems. Designed specifically for the demanding marine environment, this circuit breaker safeguards your boat’s electrical circuits against short-circuits and over-current loads, ensuring the longevity and safety of your onboard electrical installations.

Applications

• Combines automatic circuit protection with manual on/off switching, offering dual functionality in a compact and reliable solution
• Enables circuit isolation and maintenance of load circuits with convenient switching and integral circuit protection, ideal for mounting adjacent to battery systems in any location

Features

• IP66 Sealing: Fully sealed against dust and water intrusion, ensuring reliable circuit protection for the lifetime of your marine electrical system
• High Voltage Rating: Supports 12V and 24V DC applications seamlessly, while providing advanced protection for 36V and 48V DC systems
• Durable Switching Endurance: Capable of 2,000 full-current cycles, ensuring long-term reliability even under frequent use
• High Interrupt Current Capacity: Safely protects circuits connected to large, paralleled battery banks with significant available power
• 4-Year Warranty: Backed by Egis, guaranteeing the product meets the highest standards for your marine needs

Specifications

Specification	Details
Continuous Current Amps	60A
Max Voltage	48V DC
Cycling Endurance	2,000 cycles
Interrupt Current @14 VDC	5,000A
Interrupt Current @28 VDC	3,000A
Ingress Protection Rating	IP66
Box Dimensions	3"H x 3"W x 5"L
Weight	0.6 lbs
UPC	850035199329

Key Features

ON/OFF High Visibility Controls

Designed with high-visibility controls, this circuit breaker is sealed against dust and moisture penetration. Its high-temperature rating makes it suitable for all installation locations on your vessel.

Reinforced Mounting

Equipped with reinforced mounting tabs, the breaker ensures long-term structural reliability and can withstand the stress of continual vibration typical in marine environments.

Stainless Steel Hardware & Serrated Flange Nuts

Featuring corrosion and vibration-resistant stainless steel hardware, this circuit breaker is built to endure harsh marine conditions.

Proudly Made in the USA

Manufactured in the USA using high-quality components, guaranteeing top-notch performance and durability for your marine electrical systems.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Specifications

• Amperage: 60A
• Box Dimensions: 3"H x 3"W x 5"L
• Weight: 0.6 lbs
• UPC: 850035199329

Download Quick Guide (PDF)
